(35.300.02) - HYDRAULIC RESERVOIR RETURN FILTER ASSY

Запчасти Case IH 7230 (35.300.02) - HYDRAULIC RESERVOIR RETURN FILTER ASSY (35) - HYDRAULIC SYSTEMS

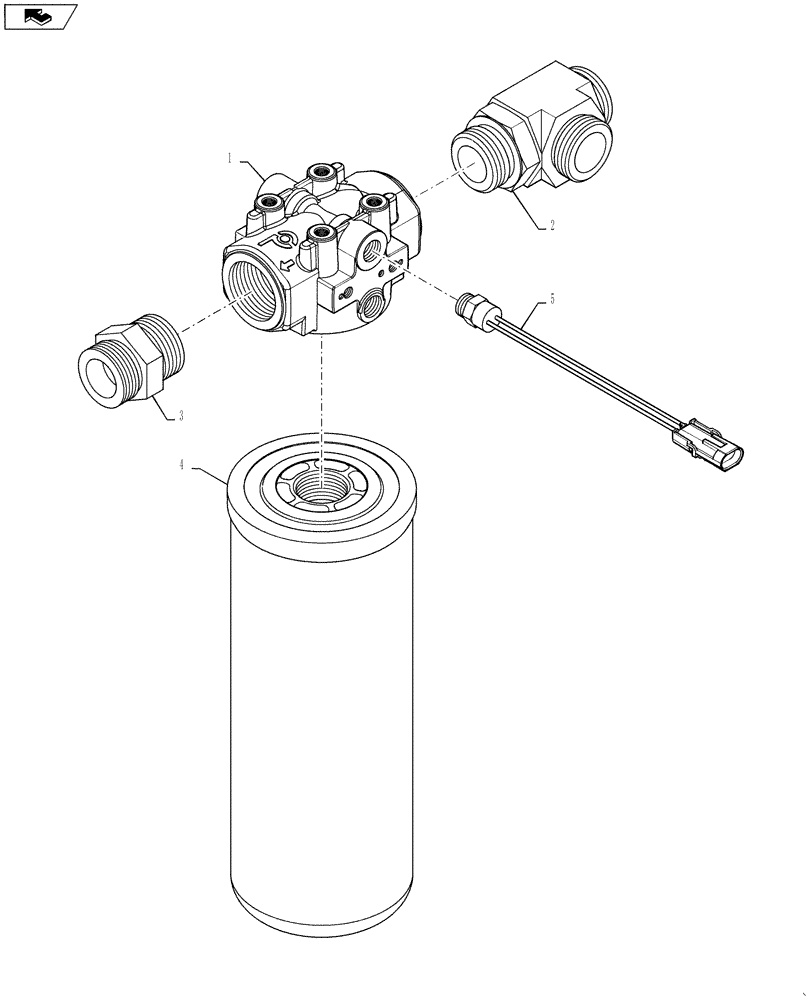

Схема запчастей Case IH 7230 - (35.300.02) - HYDRAULIC RESERVOIR RETURN FILTER ASSY (35) - HYDRAULIC SYSTEMS
2
home
4
5
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

86998593

HYDRAULIC OIL FILTER

Complete Filter Assy

1шт.

2

86579708

TEE,1-11/16" - 12 ORFS x 1-11/16" - 12 ORFS x M42 x 2 ORB

1шт.

3

86997863

HYD CONNECTOR,2" - 12 ORFS x M42 x 2 ORB

1шт.

4

277311A1

HYDRAULIC OIL FILTER

Spin On Filter

1шт.

5

87447716

SWITCH

Pressure Sensor

1шт.
