Запчасти Case IH 7230 (35.200.03) - HYDRAULICS- PTO(3) (35) - HYDRAULIC SYSTEMS

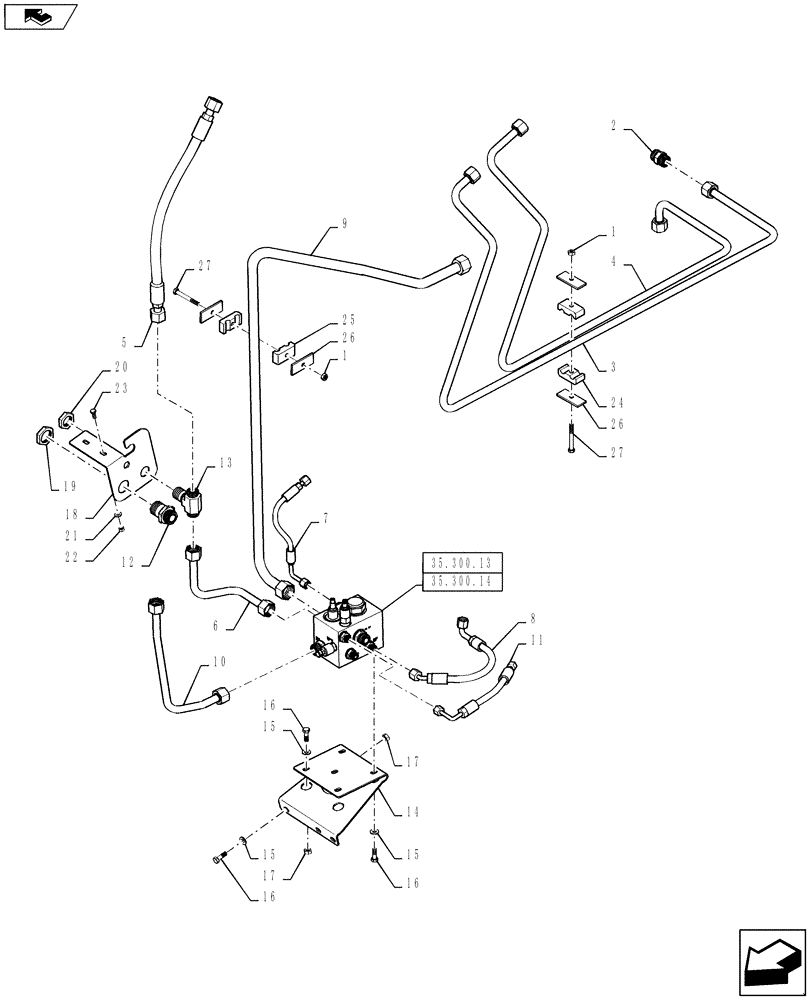

Схема запчастей Case IH 7230 - (35.200.03) - HYDRAULICS- PTO(3) (35) - HYDRAULIC SYSTEMS
16
15
18
13
1
26
16
19
27
6
21
35.300.14
11
35.300.13
27
15
8
3
20
16
26
9
2
15
24
5
home
25
7
4
22
23
12
17
10
14
1
17

Артикул

Название

Примечание

Количество

1

86629542

NUT,M8 x 1.25, Cl 8.8

2шт.

2

84100407

UNION,1-3/16"-12 ORFS

1шт.

3

84166701

HYD TUBE,20 mm OD x 657.3, 282 mm L

Cleaning Fan Pressure ASM

1шт.

4

84166699

HYD TUBE,20 mm OD

Spreader Pressure ASM

1шт.

5

84158714

HOSE ASSY.,15.88mm ID x 630mm L, SAE 100R17

Lube Tee To Cross

1шт.

6

87281692

HYD TUBE,0.75" OD

Lube Regulator- Supply To Valve

1шт.

7

84158715

HOSE ASSY.

1шт.

8

84176035

HOSE ASSY.

Hyd Lube Supply To Rotor Clutch

1шт.

9

84317288

HYD TUBE

PTO Reg Valve Bypass

1шт.

10

87663046

HYD TUBE,.75" OD

Lube RV To Filter

1шт.

11

84218078

HYDRAULIC HOSE

Hyd A Regulator Valve To Clutches

1шт.

12

86639060

UNION,1-7/16"-12 ORFS, Bulkhead

1шт.

13

86900241

TEE,1-7/16"-12 ORFS, Bulkhead

1шт.

14

87284344

BRACKET

1шт.

15

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

8шт.

16

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

8шт.

17

100016

NUT,M10 x 1.5, Cl 8

5шт.

18

87001274

BRACKET

1шт.

19

86639084

BHD LOCK NUT,1-7/16"-12, ORFS, Bulkhead

1шт.

20

86639062

BHD LOCK NUT,1-3/16"-12 ORFS, Bulkhead

1шт.

21

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

22

9706690

NUT,M8 x 1.25, Cl 8

2шт.

23

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

24

87000140

CLAMP,Tube, 19.05mm

1шт.

25

87000142

CLAMP,2 Hoses

1шт.

26

87000230

PLATE

4шт.

27

300510

BOLT,Hex, M8 x 65mm, Cl 8.8

2шт.

Выбрано товаров: 27
