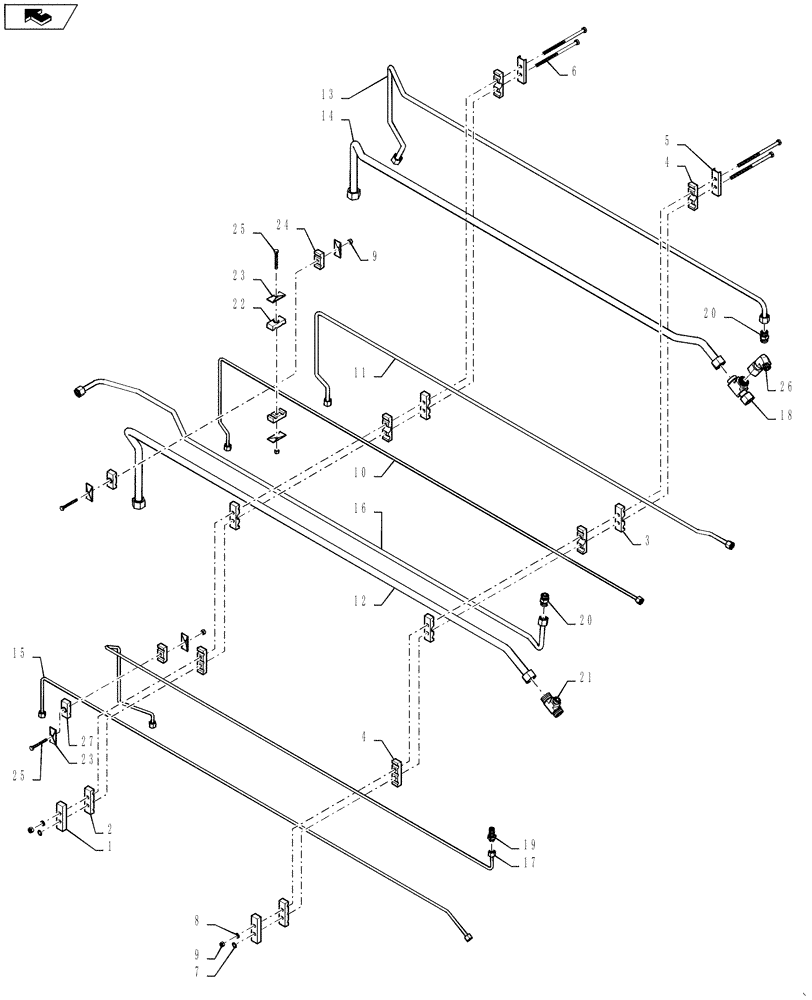

Запчасти Case IH 7230 (35.162.02[2]) - HYDRAULIC MAIN VALVE AND TUBES CONTINUED 7230 (35) - HYDRAULIC SYSTEMS

1

86998428

SPACER

3шт.

2

86998371

CLAMP

3шт.

3

86998372

CLAMP

3шт.

4

86998373

CLAMP

3шт.

5

87000242

CHANNEL

3шт.

6

412422

BOLT,Hex, M8 x 1.25 x 150mm, Cl 8.8

6шт.

7

87012484

SNAP RING,#31, Ext

3шт.

8

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

9

86629542

NUT,M8 x 1.25, Cl 8.8

6шт.

10

86995857

HYD TUBE,0.375" OD

Load Sense To Steering

1шт.

11

87280106

HYD TUBE

Priority Flow To Steering

1шт.

12

87280105

HYD TUBE,1.00" OD

Excess Flow To Feeder Valve

1шт.

13

87283796

HYD TUBE,0.625" OD

Feeder Lift

1шт.

14

86995869

HYD TUBE,1" OD

Return From Feeder Stack

1шт.

15

86996184

HYD TUBE,7mm ID x 10mm OD x 2209mm OAL

Load Sense From Feeder Stack

1шт.

16

87109922

HYD TUBE,0.625" OD

Drain Tube Bundle

1шт.

17

87109749

HYD TUBE,0.375" OD

Reg Pressure To Main Stack

1шт.

18

86641295

TEE,1-7/16"-12 ORFS to Swivel

1 7/16"-12, Serial Range: ORFS-Swivel

1шт.

19

86978770

UNION,11/16"-6, ORFS

1шт.

20

84431473

HYD CONNECTOR,1"-14 ORFS

2шт.

21

87280130

TEE

1шт.

22

87105732

CLAMP

1шт.

23

87000230

PLATE

6шт.

24

87000230

PLATE

1шт.

25

300510

BOLT,Hex, M8 x 65mm, Cl 8.8

3шт.

26

87105745

ELBOW

1шт.

27

86988833

CLAMP,9.52mm x 9.52mm, Dual Clamp Block

1шт.
