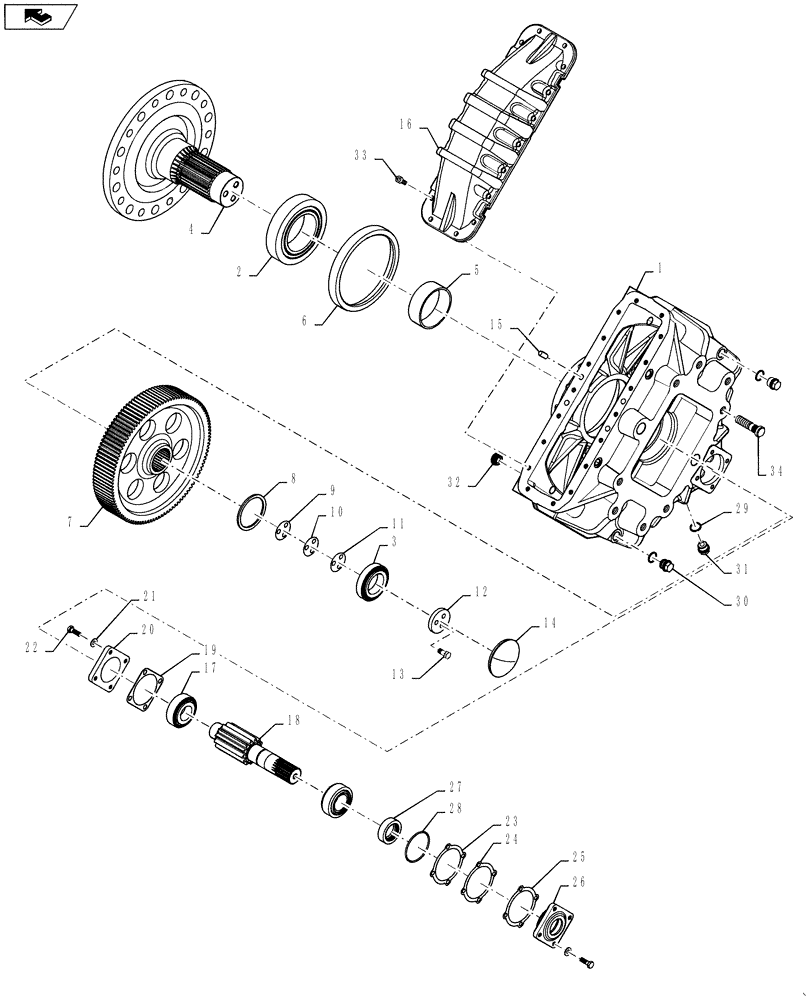

Запчасти Case IH 7230 (25.310.04) - FINAL DRIVE, STANDARD, 7230 NA AND EU (25) - FRONT AXLE SYSTEM

1

84412107

HOUSING

1шт.

2

86975648

TAPERED BEARING,104.78mm ID x 180.98mm OD x 47.63mm W

1шт.

3

86975646

TAPERED BEARING,82.55mm ID x 139.99mm OD x 36.51mm W

1шт.

4

87392841

FLANGE

1шт.

5

84814999

SPACER,105.01mm ID x 114.81mm OD x 39.22mm L

1шт.

6

9832264

SEAL,198.3mm ID x 230mm OD x 13mm Thk

1шт.

7

84069418

GEAR,111T

1шт.

8

613200

SPACER,M84 ID x 98.5mm OD x 4.6mm H

1шт.

9

395393

SHIM,45mm ID x 75mm OD x 0.5mm Thk

1шт.

10

395392

SHIM,45mm ID x 75mm OD x 0.2mm Thk

1шт.

11

395391

SHIM,45mm ID x 75mm OD x 0.05mm Thk

2шт.

12

382503

WASHER,Special, 17mm ID x 95mm OD x 14mm Thk

1шт.

13

87036180

BOLT,Hex, M16 x 35mm, Cl 10.9, Full Thd

3шт.

14

613201

COVER,153.5mm OD x 42.1mm W

1шт.

15

86978768

DOWEL,M12 x 30mm L

2шт.

16

84129520

COVER

1шт.

17

86975647

TAPERED BEARING,41.27mm ID x 85.72mm OD x 30.16mm W

2шт.

18

84069419

SHAFT

1шт.

19

410920

GASKET,0.9mm Thk

1шт.

20

613212

BEARING COVER

1шт.

21

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

8шт.

22

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

8шт.

23

382948

SHIM,89.7mm ID x 108mm OD x 0.05mm Thk

4шт.

24

382949

SHIM,89.7mm ID x 108mm OD x 0.2mm Thk

1шт.

25

382950

SHIM,89.7mm ID x 108mm OD x 0.5mm Thk

1шт.

26

754516

BEARING COVER

1шт.

27

66807

SEAL,38.1mm ID x 57.26mm OD x 7.92mm Thk

1шт.

28

87421144

O-RING,0.139" Thk x 3.109" ID, -235, Cl 5, 75 Duro

1шт.

29

220025

SEALING RING,24.3mm ID x 28.9mm OD x 2mm Thk

SEALRING

2шт.

30

150006

DRAIN PLUG,M24 x 1.5

1шт.

31

336897

PLUG,M24 x 1.5

1шт.

32

84071596

PLASTIC PLUG,M31 x 19mm

2шт.

33

120052

HEX SOC SCREW,M10 x 25mm, Cl 8.8

18шт.

34

87282493

STUD,M22 x 1.5 x 84mm

10шт.
