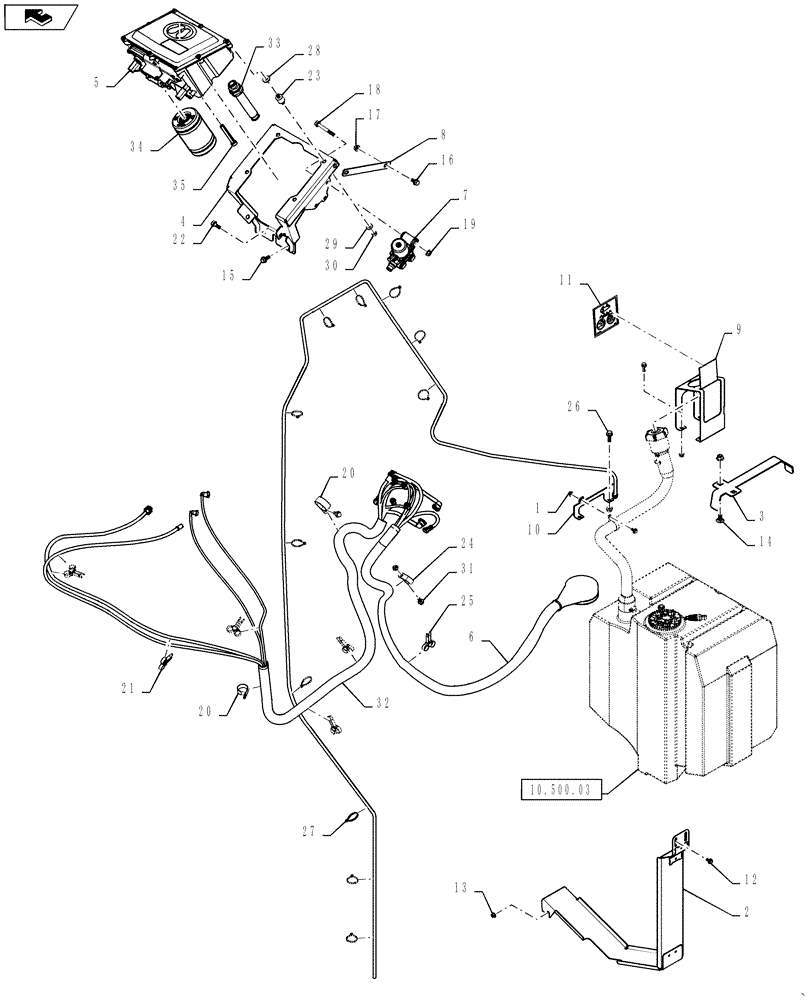

Запчасти Case IH 7230 (10.500.01) - DEF SUPPLY 7230 T4 (10) - ENGINE

1

86050300

FLANGE NUT,M6 x 1.0, Cl 10

2шт.

2

84191437

STRAP

1шт.

3

84208139

BRACKET

1шт.

4

84207383

BRACKET

1шт.

5

84246892

MODULE

1шт.

5

84246892R

REMAN-MODULE

1шт.

5

84246892C

CORE-MODULE

Return Number

1шт.

6

84203932

HOSE ASSY.

From Supply Module To Def Tank, Hose Is 1.25 OD at Large End, Will Sub To 84560752

1шт.

6

84560752

HOSE ASSY.

From Supply Module To Def Tank, Hose Is 3.5 OD at Large End

1шт.

7

84151635

HEATER VALVE

1шт.

8

84208617

BRACKET

1шт.

9

84310093

BRACKET

1шт.

10

84319946

SHIELD

1шт.

11

84284896

DECAL,DEF TANK identification label

1шт.

12

274249

BOLT,Hex, M10 x 20mm

4шт.

13

86050279

FLANGE NUT,M10 x 1.5, Cl 10

4шт.

14

120041

CARRIAGE BOLT,M10 x 20mm, Cl 8.8

2шт.

15

86511479

BOLT,Hex Flg, M8 x 20mm

2шт.

16

87681207

BOLT,M8 x 24.1mm, Cl 10.9

2шт.

17

87681210

FLANGE NUT,M8 x 1.25, Cl 10

1шт.

18

86512254

BOLT,Hex Serr Flg, M8 x 60

3шт.

19

86507066

FLANGE NUT,M8 x 1.25, Cl 10

3шт.

20

87301688

CLAMP,41.2mm, Coat, P Type

3шт.

21

577927

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

22

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

2шт.

23

84558714

SHOCK ABSORBER

4шт.

24

87552802

CLAMP,19mm, Coat, 7.1mm Bolt Hole, P Type

2шт.

25

327144A1

STRAP,328mm L

4шт.

26

87698833

BOLT,M8 x 33.1mm, Cl 10.9

6шт.

27

86566989

CABLE TIE,208mm L

12шт.

28

412328

WASHER

4шт.

29

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

30

9706690

NUT,M8 x 1.25, Cl 8

4шт.

31

87695418

FLANGE BOLT,M6 x 1.0 x 16mm, Cl 10.9

2шт.

32

84253350

HOSE ASSY.

To Coolant Lines,Doser Injector,Supply Module

1шт.

33

47614262

FILTER, DEF

DEF-ADBLUE, Service Kit

1шт.

34

84254852

FILTER

Services Ref 5

1шт.

35

84247272

FILTER,In-Line

In-Line Filter

1шт.
