Запчасти Case IH 7230 (10.418.01) - ROTARY AIR SCREEN T2/T4 ASSY (10) - ENGINE

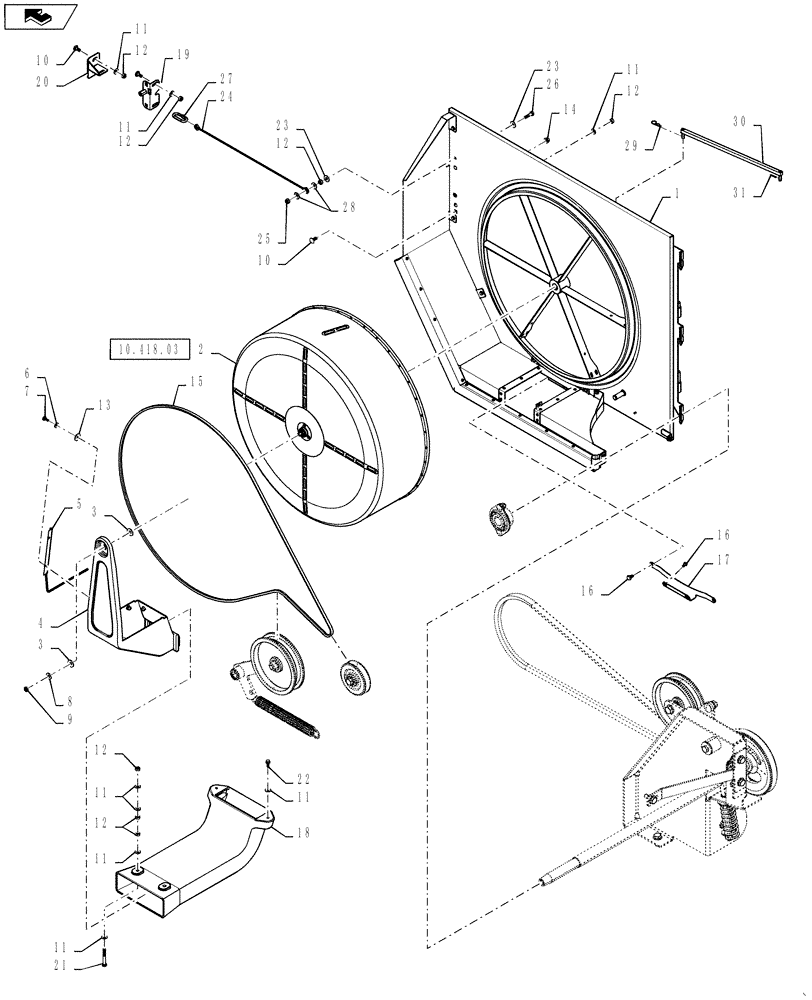

Схема запчастей Case IH 7230 - (10.418.01) - ROTARY AIR SCREEN T2/T4 ASSY (10) - ENGINE
12
29
16
6
4
23
11
10
1
11
11
7
2
5
12
27
3
22
10
11
25
3
21
28
12
12
12
12
30
19
24
10.418.03
15
18
14
31
11
11
13
11
9
17
home
20
23
16
8
26

Артикул

Название

Примечание

Количество

1

84541889

SUPPORT

1шт.

2

NSS

NOT SOLD SEPARAT

See Fig 10.418.03

1шт.

3

543043

WASHER,13mm ID x 35mm OD x 2.5mm Thk

2шт.

4

84543265

BAFFLE

1шт.

5

87642393

BRUSH

BRUSH

1шт.

6

322355

BELLEVILLE WASHER,M4 Bolt Size x 10mm OD x 0.9mm Thk

4шт.

7

86585706

SCREW,Phillips Drive, Pan HD, M4 x 10mm, Cl 4.8

4шт.

8

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

4шт.

9

323238

THIN NUT,Hex, M12, 1.75mm Pitch, Cl 05

1шт.

10

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

4шт.

11

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

18шт.

12

9706690

NUT,M8 x 1.25, Cl 8

11шт.

13

895-30108

WASHER,4.3mm ID x 15mm OD x 1.2mm Thk

4шт.

14

87284531

NUT,Rivnut, M8 x 1.25, 0.5mm - 3mm Grip Range

8шт.

15

86514512

V-BELT,0.49" W x 142.50" L

7230 Only

1шт.

15

9842161

V-BELT,0.49" W x 146.10" L

82/9230 Only

1шт.

16

87550068

SUPPORT ASSY.

1шт.

17

336199

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

8шт.

18

87376998

CHANNEL

1шт.

19

84431232

LATCH

1шт.

20

84424391

SUPPORT

1шт.

21

86977784

BOLT,Hex, M8 x 60mm, Cl 8.8, Full Thd

2шт.

22

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

2шт.

23

412650

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 1.4mm Thk

2шт.

24

86623991

CABLE,2 Eyelet, 490mm Centerline Length

1шт.

25

86629542

NUT,M8 x 1.25, Cl 8.8

1шт.

26

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

1шт.

27

87107072

CHAIN LINK,44.299mm Pitch

Chain

1шт.

28

378243

WASHER,8.4mm ID x 21mm OD x 1.6mm Thk

2шт.

29

610784R1

SPLIT PIN/SAFETY PIN,2.4mm OD x 60.345mm OAL

Used 82/9230 Only

1шт.

30

87729445

ROD ASSY.

Used 82/9230 Only

1шт.

31

280251

COTTER PIN,3/32" OD x 1" OAL

Used 82/9230 Only

1шт.

Выбрано товаров: 32
