Запчасти Case IH 7140 (14.100.AR[01]) - PTO TRANSMISSION GEAR (14) - MAIN GEARBOX & DRIVE

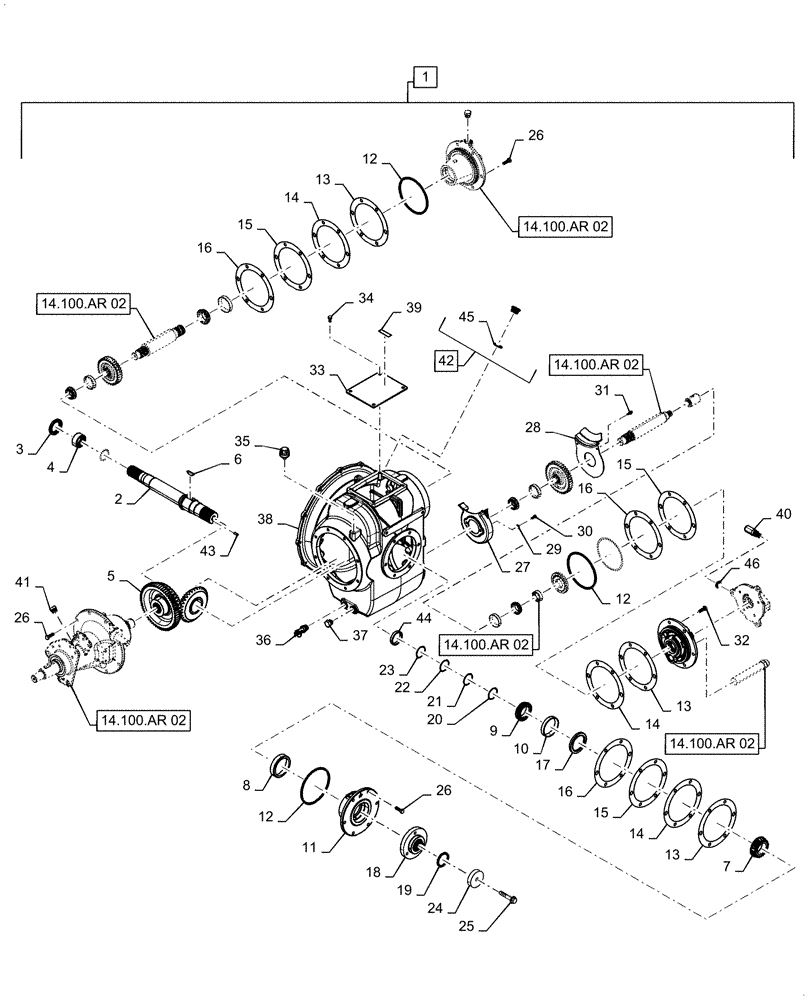

Схема запчастей Case IH 7140 - (14.100.AR[01]) - PTO TRANSMISSION GEAR (14) - MAIN GEARBOX & DRIVE
14.100.ar 02
12
33
13
38
29
16
41
27
18
31
21
5
20
45
3
28
30
9
12
10
42
17
22
12
37
19
46
34
24
16
14
6
39
44
15
26
4
25
14
13
40
26
43
1
8
13
15
35
36
32
11
14
23
7
2
15
26
16
14.100.ar 02
14.100.ar 02
14.100.ar 02
14.100.ar 02
14.100.ar 02

Артикул

Название

Примечание

Количество

1

47692495

GEARBOX

PTO, Incl 2 - 46

1шт.

2

84552838

SHAFT

Input Drive, 539.7mm L

1шт.

3

87618406

OIL SEAL,49.23mm ID x 73.14mm OD x 7.95mm Thk

Input Shaft

1шт.

4

A66476

NEEDLE BEARING,2" ID x 2.375" OD x 1" L

1шт.

5

84139333

GEAR SET

PTO Bevel

1шт.

6

126-176

WOODRUFF KEY,#128, 5/16" x 2-1/8", HT

1шт.

7

ST2116

TAPERED BEARING,2.375" ID x 4.4375" OD x 1.1875" W

1шт.

8

22396V

BEARING, CUP,112.739mm OD x 30.37mm W

1шт.

9

L33289

ROLLER BEARING,57.1565mm ID x 21.857mm Thk

1шт.

10

105497H

BEARING CUP,96.85mm OD x 15.77mm W

1шт.

11

84589398

BEARING CARRIER

Input

1шт.

12

14467980

O-RING,0.139" Thk x 6.734" ID, -261, Cl 5, 75 Duro

3шт.

13

84589384

SHIM,184mm ID x 240.5mm OD x 0.13mm Thk

1шт.

14

84589385

SHIM,184mm ID x 240.5mm OD x 0.18mm Thk

1шт.

15

84589386

SHIM,184mm ID x 240.5mm OD x 0.25mm Thk

1шт.

16

84589387

SHIM,184mm ID x 240.5mm OD x 0.76mm Thk

1шт.

17

87311003

SEAL,76.2mm ID x 101.8mm OD x 9.53mm Thk

Lip

1шт.

18

47630749

HUB

Unloader Pulley

1шт.

19

217408

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

1шт.

20

84552155

SHIM,58mm ID x 65mm OD x 0.08mm Thk

1шт.

21

84552156

SHIM,58mm ID x 65.5mm OD x 0.13mm Thk

1шт.

22

84552157

SHIM,58mm ID x 65.5mm OD x 0.18mm Thk

1шт.

23

84552158

SHIM,58mm ID x 65.5mm OD x 0.5mm Thk

1шт.

24

84552832

WASHER,17mm ID x 82.5mm OD x 20.05mm Thk

1шт.

25

86981709

BOLT,Hex, M16 x 80mm, Cl 10.9

1шт.

26

84146883

BOLT,Hex, M12 x 35mm, Cl 10.9

15шт.

27

84148216

PROTECTION PLATE

Shield, PFC Gear, Front

1шт.

28

84148217

PROTECTION PLATE

Shield, PFC Gear, Rear

1шт.

29

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

30

86639144

BOLT,Hex, Lock, M8 x 20, Cl 10.9

2шт.

31

87348536

RIVET,6.4mm OD x 22.8mm L

2шт.

32

87015540

BOLT,Hex, M12 x 50mm, Cl 10.9

3шт.

33

84146062

PLATE

Cover, Top

1шт.

34

87015732

BOLT,M10 x 1.5 x 26.58mm, Cl 10.9

4шт.

35

1971726C1

BREATHER,1/4" - 18

Case

1шт.

36

87485712

DRAINCOCK/TAP SUPPLY

1шт.

37

87108781

PLUG

Magnetic

1шт.

38

84589402

HOUSING

Gearbox

1шт.

39

305133A1

DECAL

Identification

1шт.

40

84266245

VALVE PRESSURE RELIE

Cartridge

1шт.

41

220067A1

PLUG,M22 x 1.5 ORB

1шт.

42

86583482

HEX SOCKET PLUG,M33 x 2

Incl 45

1шт.

43

87238

DOWEL,7.94mm OD x 19.05mm L

1шт.

44

84552159

SPACER,57.5mm ID x 67mm OD x 10.6mm Thk

Bearing

1шт.

45

86598104

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

46

86508168

SEAL KIT

Pressure Relief Valve

1шт.

Выбрано товаров: 46
