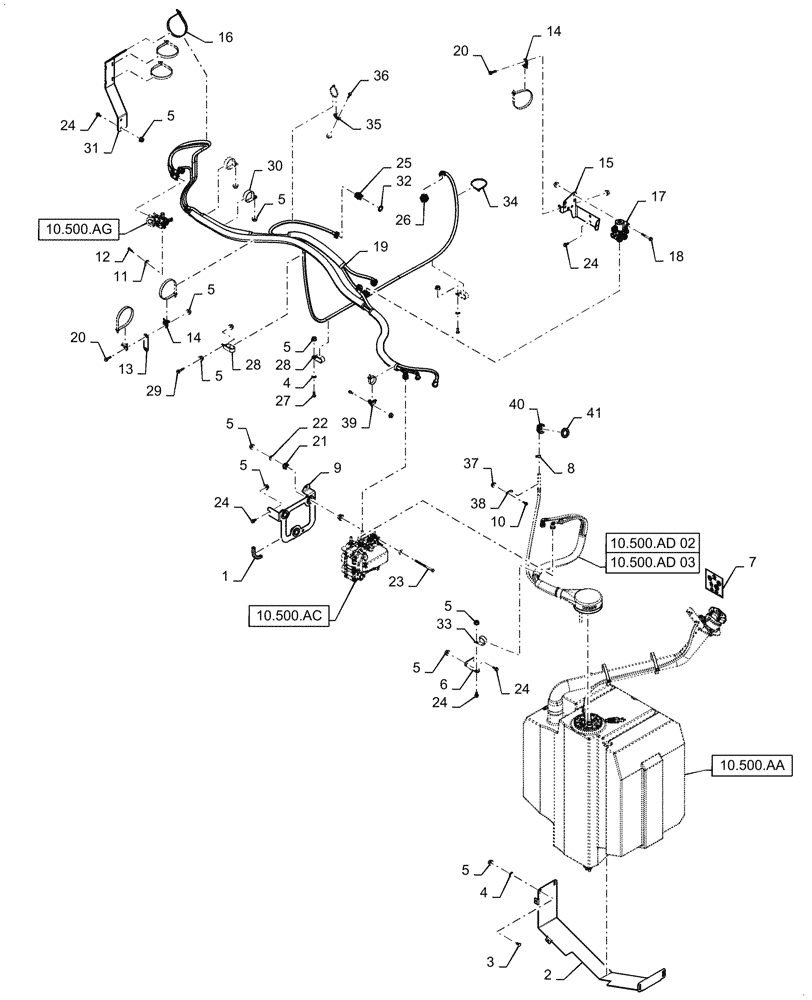

Запчасти Case IH 7140 (10.500.AD[01]) - DEF/ADBLUE™ LINES & TANK (10) - ENGINE

1

1327979C1

MOLDING

Edge Channel

1шт.

2

47378282

SUPPORT

DEF/Adblue™ Tank Bottom

1шт.

3

87682383

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 10.9

4шт.

4

131-440

PUSH-ON NUT

Retainer

6шт.

5

86507066

FLANGE NUT,M8 x 1.25, Cl 10

26шт.

6

47975533

BRACKET

DEF/Adblue™ Bundle Support

1шт.

7

47692590

DECAL

DEF/Adblue™ Tank - Clean Machine

1шт.

8

87436932

CLAMP,13.9mm - 15.5mm, Spring

1шт.

9

47426870

BRACKET

Supply Unit

1шт.

10

87675531

FLANGE BOLT,M6 x 26.6mm, Cl 10.9

2шт.

11

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

3шт.

12

14432221

HEX SOC SCREW,M6 x 1.0 x 28mm, Cl 8.8

3шт.

13

84519694

SUPPORT

DEF/Adblue™ Bundle

1шт.

14

84474186

BASE

Tie

3шт.

15

47583204

BRACKET

Coolant Valve

1шт.

16

84266050

CABLE TIE,384mm L, Polyamide

7шт.

17

84483089

HEATER,12V

Valve, 12V

1шт.

18

87670761

FLANGE BOLT,M8 x 68.1mm, Cl 10.9

3шт.

19

47967118

TUBE

DEF/Adblue™ Bundle, C9 Engine

1шт.

20

87030775

BOLT,M8 x 38.1mm, Cl 10.9

2шт.

21

2855150

INSULATOR BLOCK

Rubber

6шт.

22

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

6шт.

23

86528166

BOLT,M8 x 1.25 x 126.58mm, Cl 8.8

3шт.

24

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

10шт.

25

47442847

ADAPTER,M22 x 1.5 x 21.5mm OD

1шт.

26

47616094

NIPPLE

NG12

1шт.

27

87682384

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 10.9

2шт.

28

470375C1

CLAMP,1", Insul, 3/8" Bolt

3шт.

29

87695419

FLANGE BOLT,M8 x 43.1mm, Cl 10.9

1шт.

30

87573379

CLAMP,57.1mm, Coat, 13.5mm Bolt Hole, P Type

2шт.

31

47556126

BRACKET

DEF/Adblue™ Bundle at DOC

1шт.

32

87332142

SEAL,23.5mm ID x 30mm OD x 1.5mm Thk

1шт.

33

87301688

CLAMP,41.2mm, Coat, P Type

1шт.

34

86566990

CABLE TIE,292mm OAL x 4.8mm W

2шт.

35

84340333

BASE PLATE

Tie

1шт.

36

87698760

FLANGE BOLT,M6 x 36.6mm, Cl 10.9

1шт.

37

86050300

FLANGE NUT,M6 x 1.0, Cl 10

3шт.

38

87564736

CLAMP,14.3mm, Insul, M6 Bolt

1шт.

39

84360210

BASE

Tie

1шт.

40

47592873

FILTER, DEF

Breather

1шт.

41

47592880

FILTER

Foam Element

1шт.
