Запчасти Case IH 7140 (10.500.AD[01]) - DEF/ADBLUE™ LINES & TANK (10) - ENGINE

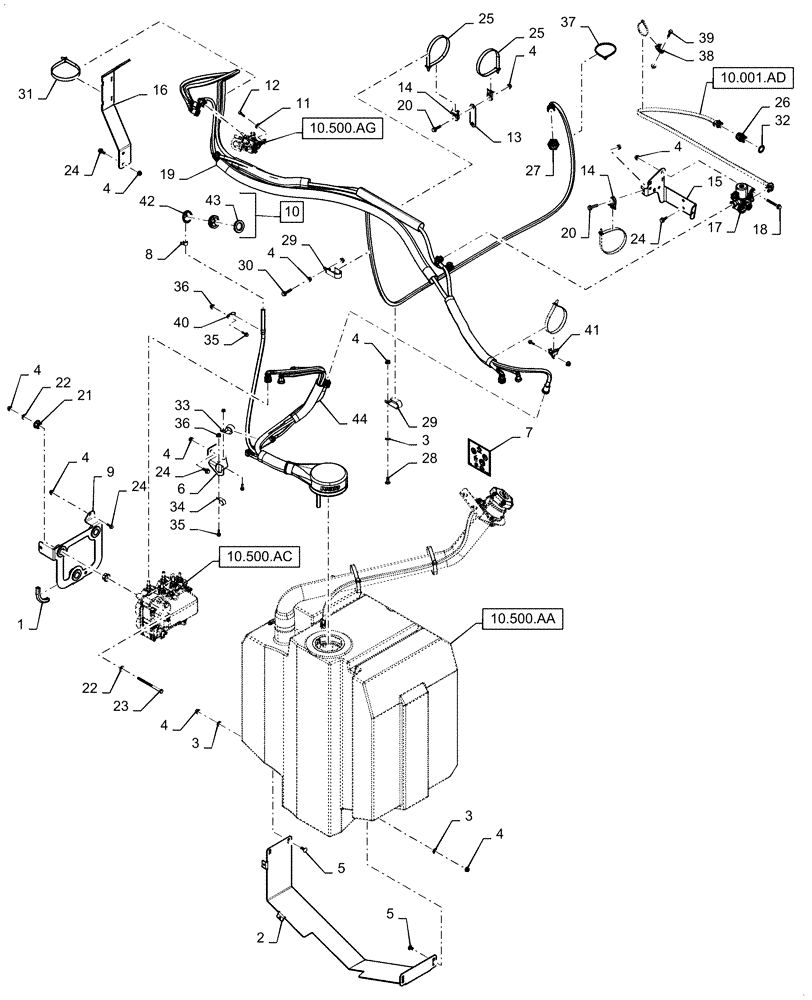

Схема запчастей Case IH 7140 - (10.500.AD[01]) - DEF/ADBLUE™ LINES & TANK (10) - ENGINE
10.500.ac
10
25
38
3
13
4
14
39
26
42
16
24
7
34
19
8
3
4
9
20
25
4
5
20
22
18
44
36
23
41
36
12
6
27
1
28
21
17
24
33
3
11
30
35
4
24
24
4
32
29
4
5
4
14
31
29
37
4
4
40
15
2
4
43
22
35
10.500.aa
10.001.ad
10.500.ag

Артикул

Название

Примечание

Количество

1

1327979C1

MOLDING

Edge Trim

1шт.

2

47378282

SUPPORT

Tank Bottom

1шт.

3

131-440

PUSH-ON NUT

Retainer

6шт.

4

86507066

FLANGE NUT,M8 x 1.25, Cl 10

25шт.

5

87682383

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 10.9

4шт.

6

47644486

BRACKET

Filter Mount

1шт.

7

47692590

DECAL

DEF/Adblue™ Tank - Clean Machine

1шт.

8

87436932

CLAMP,13.9mm - 15.5mm, Spring

1шт.

9

47426870

BRACKET

Supply Unit

1шт.

10

47592872

FILTER ASSY

Breather, Incl 42, 43

1шт.

11

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

3шт.

12

14432221

HEX SOC SCREW,M6 x 1.0 x 28mm, Cl 8.8

3шт.

13

84519694

SUPPORT

Bundle

1шт.

14

84474186

BASE

Tie

3шт.

15

47583204

BRACKET

Coolant Valve

1шт.

16

84266050

CABLE TIE,384mm L, Polyamide

7шт.

17

84483089

HEATER,12V

Valve, 12V

1шт.

18

87670761

FLANGE BOLT,M8 x 68.1mm, Cl 10.9

3шт.

19

47582497

FUEL HOSE

Bundle

1шт.

20

87030775

BOLT,M8 x 38.1mm, Cl 10.9

2шт.

21

2855150

INSULATOR BLOCK

Rubber Bushing

6шт.

22

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

6шт.

23

86528166

BOLT,M8 x 1.25 x 126.58mm, Cl 8.8

3шт.

24

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

9шт.

25

87573379

CLAMP,57.1mm, Coat, 13.5mm Bolt Hole, P Type

2шт.

26

47442847

ADAPTER,M22 x 1.5 x 21.5mm OD

1шт.

27

47616094

NIPPLE

NG12

1шт.

28

87682384

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 10.9

2шт.

29

470375C1

CLAMP,1", Insul, 3/8" Bolt

Medium Duty

3шт.

30

87695419

FLANGE BOLT,M8 x 43.1mm, Cl 10.9

1шт.

31

47556126

BRACKET

Bundle at DOC

1шт.

32

87332142

SEAL,23.5mm ID x 30mm OD x 1.5mm Thk

1шт.

33

515-23286

CLAMP,1-1/8", Insul, 3/8" Bolt

1шт.

34

87552802

CLAMP,19mm, Coat, 7.1mm Bolt Hole, P Type

Hose

1шт.

35

87675531

FLANGE BOLT,M6 x 26.6mm, Cl 10.9

4шт.

36

86050300

FLANGE NUT,M6 x 1.0, Cl 10

5шт.

37

86566990

CABLE TIE,292mm OAL x 4.8mm W

2шт.

38

84340333

BASE PLATE

Tie Base

1шт.

39

87698760

FLANGE BOLT,M6 x 36.6mm, Cl 10.9

1шт.

40

87564736

CLAMP,14.3mm, Insul, M6 Bolt

Hose

1шт.

41

84360210

BASE

Tie

1шт.

42

47592873

FILTER, DEF

Breather

1шт.

43

47592880

FILTER

Foam, Breather

1шт.

44

47651824

FILTER, DEF,70 Micron

Bundle

1шт.

Выбрано товаров: 44
