Запчасти Case IH 7140 (10.400.BF[02]) - COOLER, RADIATOR & COOLER (10) - ENGINE

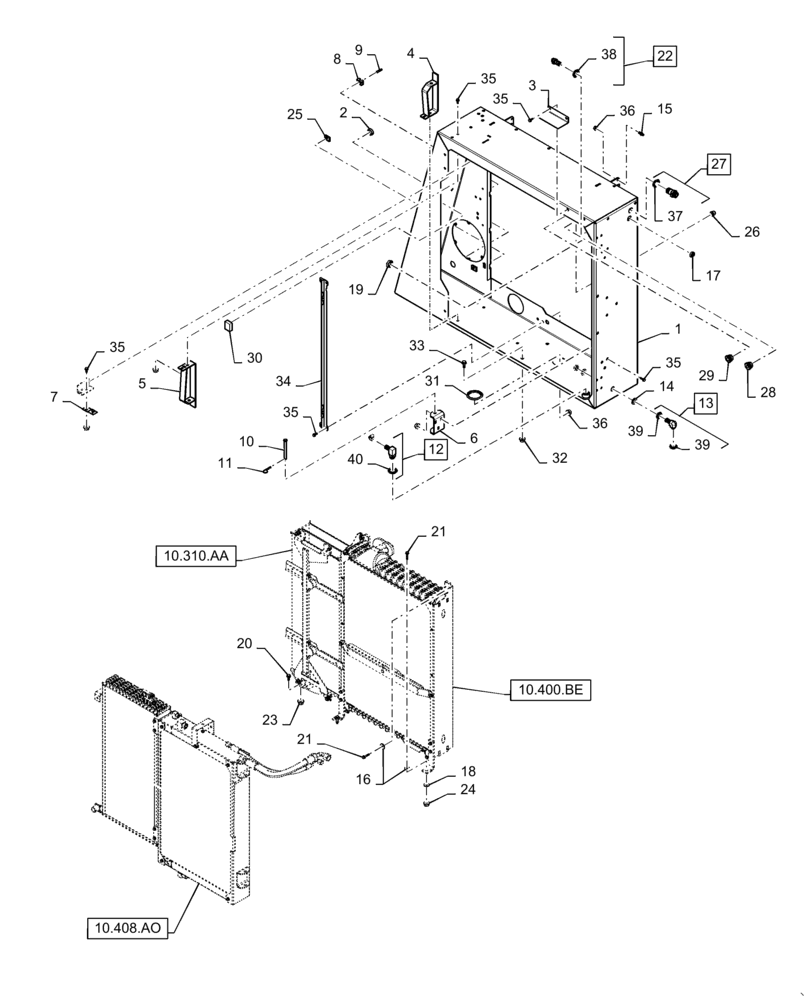

Схема запчастей Case IH 7140 - (10.400.BF[02]) - COOLER, RADIATOR & COOLER (10) - ENGINE
39
3
14
20
35
31
8
22
35
10.408.ao
36
34
21
6
24
10.310.aa
10.400.be
35
13
12
17
5
7
30
4
21
25
10
35
23
11
2
39
27
28
9
26
32
18
29
15
35
33
36
38
37
16
40
19
1

Артикул

Название

Примечание

Количество

1

47608068

FRAME

Cooler Box

1шт.

2

353-414

PLUG,Dome, 1.375" Hole, Nylon

1шт.

3

47412741

BRACKET

Stop

1шт.

4

84522401

SUPPORT

Oil Cooler, Lower

1шт.

5

84518861

SUPPORT

Oil Cooler, Upper

1шт.

6

87429534

BRACKET

Coil Cooler, Side

2шт.

7

413012A1

BRACKET

CAC Mounting

1шт.

8

445394

RIVET,Pop, 3/16" x 1/2" OAL

3шт.

9

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

Wire Tie

3шт.

10

87019656

HEADED PIN,1/2" OD x 5" L

2шт.

11

480523R1

HAIR PIN COTTER

Quick Attach

2шт.

12

217-351

FITTING,90 Degree Elbow, 3/4" Hose Barb x 1-1/16" - 12 Male ORB

Incl 40

1шт.

13

87319550

90 ELBOW

Incl 39

1шт.

14

140021

WASHER,22mm ID x 37mm OD x 3mm Thk

2шт.

15

83952214

BALL STUD,M8 x 29.5mm OAL

Door Regulator

2шт.

16

87033737

WASHER,9mm ID x 28mm OD x 3mm Thk

4шт.

17

87381289

BHD LOCK NUT,13/16"-16, 12mm OD

1/2" Tube

2шт.

18

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.

19

218-1249

BHD LOCK NUT,1-3/16" - 12

1шт.

20

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

2шт.

21

87698834

BOLT,M8 x 48.1mm, Cl 10.9

4шт.

22

201-121

HYD CONNECTOR,13/16"-16, Blkhd, ORFS

Incl 38

1шт.

23

86050279

FLANGE NUT,M10 x 1.5, Cl 10

2шт.

24

86619801

FLANGE NUT,M8 x 1.25, Cl 8

4шт.

25

86508354

PUSH-ON NUT,M8 x 1.25

8шт.

26

87284531

NUT,Rivnut, M8 x 1.25, 0.5mm - 3mm Grip Range

24шт.

27

201-140

HYD CONNECTOR,1-3/16" - 12, Blkhd, ORFS

Incl 37

1шт.

28

87107420

GROMMET,15.88mm ID x 41.1mm OD x 26.9mm Thk

Hose Protector

1шт.

29

86976974

GROMMET,19.05mm ID x 41.1mm OD x 26.9mm Thk

Hose Protector

1шт.

30

187884C1

SEALING STRIP,50mm L

Foam

2шт.

31

87000778

PLUG,89mm OD

Clean Out Hole

1шт.

32

86512497

FLANGE NUT,M12 x 1.75, Cl 10

6шт.

33

87030508

BOLT,Hvy Hex, M12 x 30mm, Full Thd, Cl 10.9

6шт.

34

84197902

STRAP

Cooler Separator

1шт.

35

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

18шт.

36

86507066

FLANGE NUT,M8 x 1.25, Cl 10

18шт.

37

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

38

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

39

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

40

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

Выбрано товаров: 40
