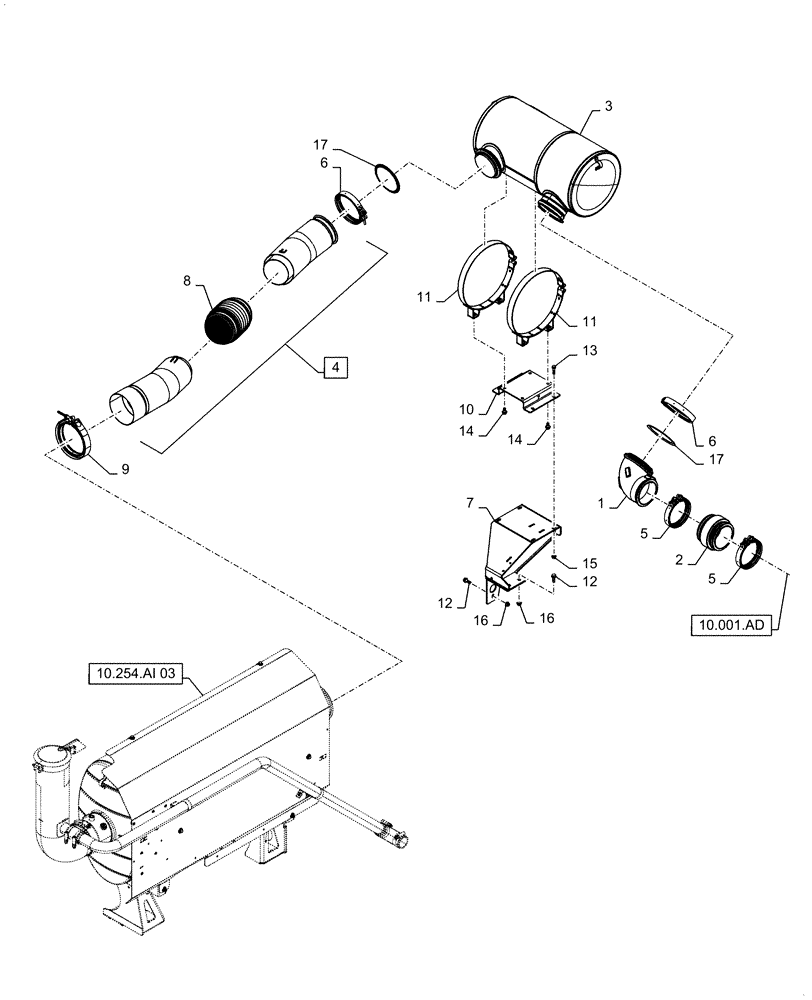

Запчасти Case IH 7140 (10.254.AI[02]) - EXHAUST SYSTEM (10) - ENGINE

1

47727165

ELBOW

Muffler Inlet

1шт.

2

47563820

COUPLING

Flexible

1шт.

3

47447523

MUFFLER

DOC, Cluster

1шт.

4

47550262

EXHAUST SYSTEM PIPE

Tube, Incl 8

1шт.

5

47415584

CLAMP,138mm ID

Turbo

2шт.

6

47390971

CLAMP,158mm ID, T - Bolt

2шт.

7

47489313

SUPPORT

DOC

1шт.

8

47409353

JOINT

Flexible

1шт.

9

47511343

CLAMP,156mm ID, T - Bolt, V - Band

1шт.

10

47442469

BASE PLATE

DOC Support

1шт.

11

47439305

CLAMP,328mm ID

DOC

2шт.

12

87698837

FLANGE BOLT,M10 x 30mm, Full Thd, Cl 10.9

4шт.

13

87695419

FLANGE BOLT,M8 x 43.1mm, Cl 10.9

4шт.

14

87698835

FLANGE BOLT,M10 x 20mm, Full Thd, Cl 10.9

4шт.

15

86507066

FLANGE NUT,M8 x 1.25, Cl 10

4шт.

16

86050279

FLANGE NUT,M10 x 1.5, Cl 10

4шт.

17

47684294

GASKET,133.8mm ID x 154mm OD, 5 Layer

Exhaust

2шт.
