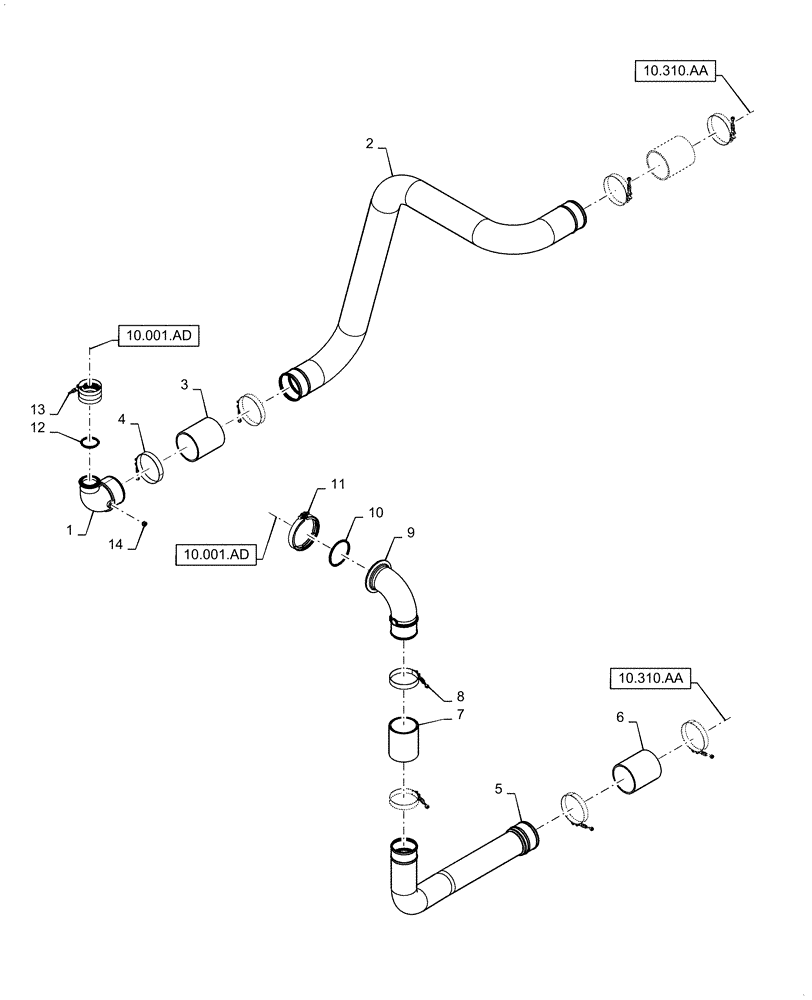

Запчасти Case IH 7140 (10.250.AJ) - COOLING SYSTEM, CAC (10) - ENGINE

1

86998476

ELBOW

Hot Side

1шт.

2

47368277

AIR INTAKE TUBE

CAC Hot Side

1шт.

3

87402761

HOSE

CAC, Hot Side

2шт.

4

87420676

HOSE CLAMP,108mm - 115.8mm

T-Bolt, Spring Loaded

5шт.

5

47429147

AIR INTAKE TUBE

CAC Cold Side

1шт.

6

87402762

HOSE

CAC Cold Side

1шт.

7

87106404

HOSE,88.90mm ID x 110mm

Cold

1шт.

8

86976661

HOSE CLAMP,95.25mm - 104mm

Spring

2шт.

9

84223171

ELBOW

Air Intake Connection

1шт.

10

83911411

O-RING,0.139" Thk x 3.734" ID, -240, Cl 6, 90 Duro

1шт.

11

47711116

CLAMP,125mm ID

V-Band

1шт.

12

J883284

O-RING,0.07" Thk x 2.364" ID, -36

1шт.

13

87524288

CLAMP,77mm

Turbo Outlet, V-Band

1шт.

14

86998472

PLUG

1/8" -27

2шт.
