Запчасти Case IH 7140 (10.202.BD) - AIR CLEANER & INTAKE PARTS (10) - ENGINE

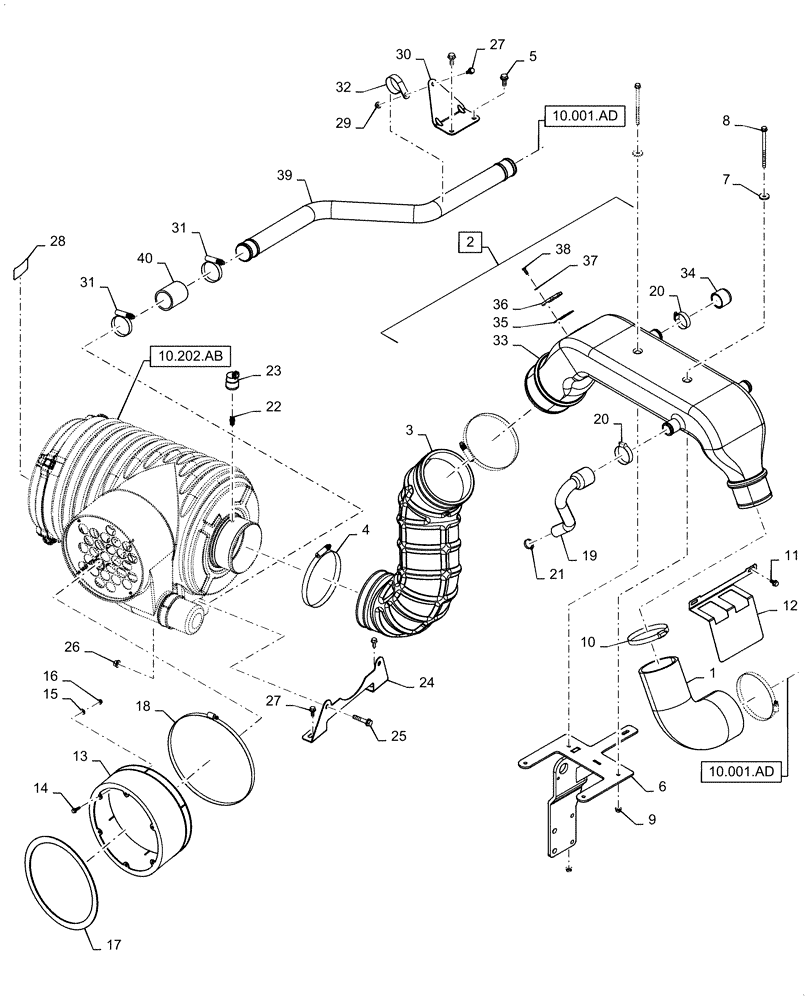

Схема запчастей Case IH 7140 - (10.202.BD) - AIR CLEANER & INTAKE PARTS (10) - ENGINE
10.202.ab
34
29
27
32
38
5
14
20
3
11
10
21
27
18
40
31
22
39
31
23
20
19
35
9
24
6
37
33
4
28
15
13
30
17
25
2
26
8
12
1
36
7
16
10.001.ad
10.001.ad

Артикул

Название

Примечание

Количество

1

47365063

ELBOW

Intake

1шт.

2

47829698

AIR INTAKE TUBE

C9, Incl 20, 33 - 38

1шт.

3

84373528

INTAKE AIR HOSE

Air Cleaner

1шт.

4

86633350

HOSE CLAMP,159mm - 181mm

2шт.

5

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

2шт.

6

47459830

SUPPORT

Air Duct

1шт.

7

140041

WASHER,M8 x 28mm OD x 3mm Thk

2шт.

8

87681208

BOLT,Hex, M8 X 130, Class 10.9

2шт.

9

87681210

FLANGE NUT,M8 x 1.25, Cl 10

2шт.

10

9706924

HOSE CLAMP,103.1mm - 127mm

2шт.

11

87681207

BOLT,M8 x 24.1mm, Cl 10.9

2шт.

12

84196410

PLATE

Air Duct

1шт.

13

451775A1

DUCT

Engine Air

1шт.

14

87675531

FLANGE BOLT,M6 x 26.6mm, Cl 10.9

6шт.

15

495-11028

WASHER,1/4", SAE

6шт.

16

87301498

FLANGE NUT,Hex, M6 x 1.0, Cl 10

6шт.

17

87302039

SEAL,856mm L

Air Inlet Duct

1шт.

18

87012918

HOSE CLAMP,64mm - 317.5mm

1шт.

19

84255617

HOSE

PCV

1шт.

20

382528

HOSE CLAMP,35mm ID - 52mm ID x 13mm W, Unlined

3шт.

21

326082

CLAMP,18mm - 25mm

1шт.

22

86976679

ADAPTER

Air Cleaner

1шт.

23

87013666

SWITCH,Air Filter Restriction

Pressure

1шт.

24

84158622

BRACKET

Air Cleaner Support

2шт.

25

87698840

FLANGE BOLT,M10 x 50mm, Cl 10.9

4шт.

26

87547587

LOCK NUT,Hex, M10 x 1.5, Cl 10

4шт.

27

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

5шт.

28

84215544

DECAL

Air Filter

1шт.

29

86507066

FLANGE NUT,M8 x 1.25, Cl 10

1шт.

30

47543824

SUPPORT

Aspiration Tube

1шт.

31

86625019

HOSE CLAMP,44mm - 67mm

2шт.

32

87552805

CLAMP,50.8mm, Coat, 10.3mm Bolt Hole, P Type

Hose

1шт.

33

84244917

AIR INTAKE TUBE

Duct

1шт.

34

87717199

CUP COVER

Duct

1шт.

35

84296749

GASKET,0.8mm Thk

Cover

1шт.

36

84329599

COVER

Rear

1шт.

37

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

2шт.

38

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

2шт.

39

47394886

TUBE

Aspiration

1шт.

40

87308234

HOSE,32mm ID - 66.67mm ID x 16mm W, Unlined

1шт.

Выбрано товаров: 40
