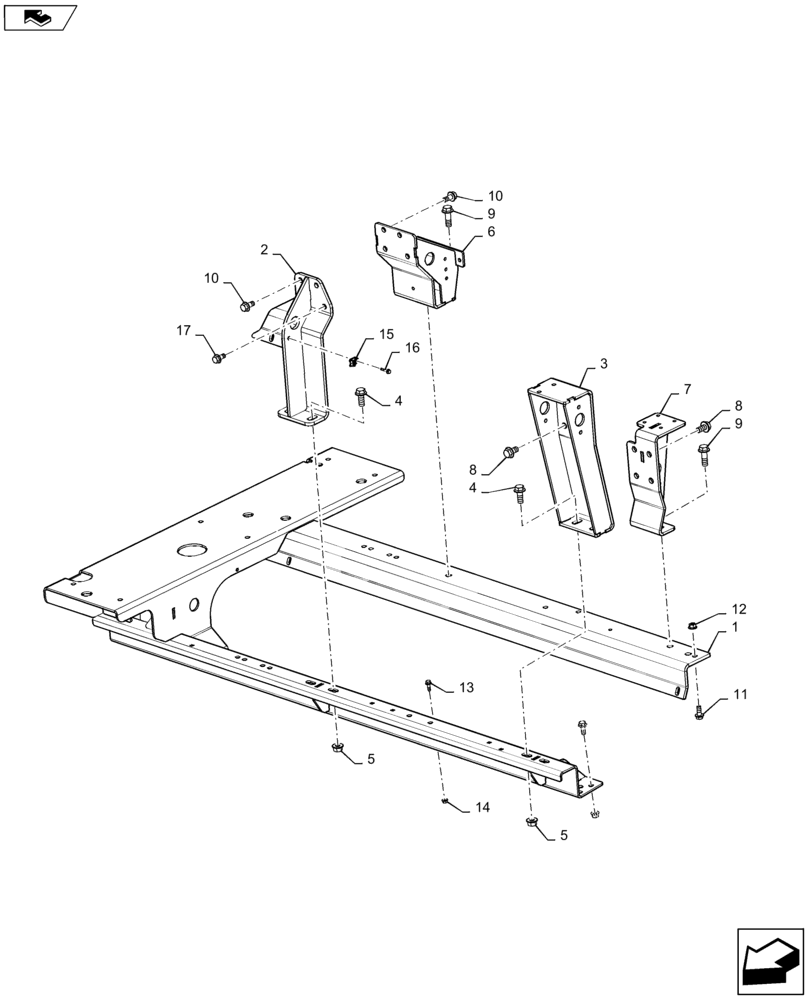

Запчасти Case IH 7140 (10.001.AK) - ENGINE MOUNT FRAME (10) - ENGINE

1

47608063

FRAME

Engine Mount Frame

1шт.

2

84192871

SUPPORT

Engine, Front

1шт.

3

47372552

SUPPORT

Engine, Rear

1шт.

4

87495304

FLANGE BOLT,M6 x 55.4mm, Cl 10.9

4шт.

5

87016581

FLANGE NUT,M16 x 2, CI 10

4шт.

6

47372548

MOUNT

Engine, Front

1шт.

7

47372548

MOUNT

Engine, Rear

1шт.

8

87698766

FLANGE BOLT,M16 x 45.4mm, Cl 10.9

8шт.

9

87698849

BOLT,M16 x 50mm, Cl 10.9

2шт.

10

84188437

BOLT,Hex, M14 x 30mm, Cl 10.9

8шт.

11

87030508

BOLT,Hvy Hex, M12 x 30mm, Full Thd, Cl 10.9

8шт.

12

86512497

FLANGE NUT,M12 x 1.75, Cl 10

7шт.

13

87698833

BOLT,M8 x 33.1mm, Cl 10.9

4шт.

14

86507066

FLANGE NUT,M8 x 1.25, Cl 10

4шт.

15

84340333

BASE PLATE

Tie Base

1шт.

16

87698760

FLANGE BOLT,M6 x 36.6mm, Cl 10.9

1шт.

17

86050300

FLANGE NUT,M6 x 1.0, Cl 10

1шт.
