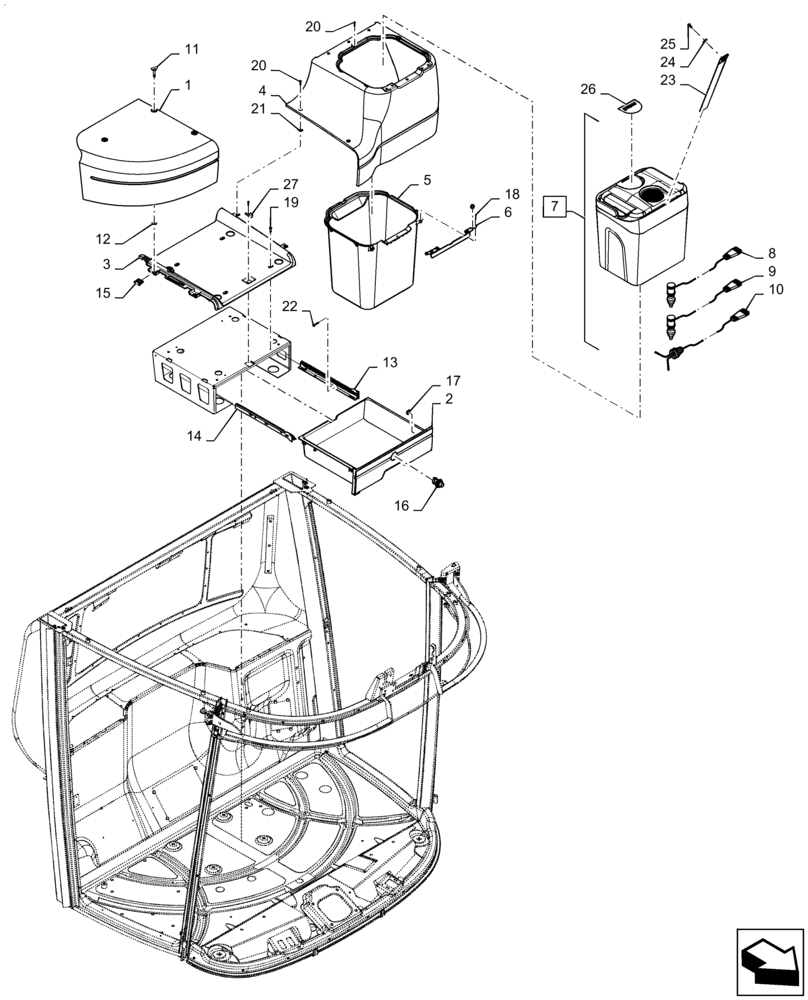

Запчасти Case IH 7140 (90.160.AH[02]) - VAR - 425358 - CAB STORAGE BOX, LUXURY CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84577164

COVER

RH Rear, Floor

1шт.

2

84546825

TRAY

Under Operators Seat

1шт.

3

84546257

COVER

Seat Trim

1шт.

4

84547127

PEDESTAL

Instruction Seat

1шт.

5

84547153

TRAY

Removable

1шт.

6

84547155

BRACKET

Support, LH

1шт.

7

47664629

COOLER ASSY.

Cool Box, Incl 8 - 10

1шт.

8

47443925

WIRE CONNECTOR

Male 12V Plug in, 2 Term to Cool Box, 450mm Long

1шт.

9

47443926

WIRE CONNECTOR

Male 12V Plug in, 2 Term to Cool Box, 1000mm Long

1шт.

10

47443927

WIRE CONNECTOR

Hard Wired Plug in For Cool Box- 2 Wire Connector End to Box , 250mm Long

1шт.

11

84511750

PLUG

Quarter Turn Lock

3шт.

12

84499241

RETAINER

Quarter Turn Lock

3шт.

13

84393181

GUIDE

LH Slide, Under Seat Tray

1шт.

14

84404363

GUIDE

RH Slide, Under Seat Tray

1шт.

15

87732164

LOCKING PLATE

Quarter Turn Receiver

3шт.

16

84402856

LOCK

Drawer

1шт.

17

84553150

BUMPER

Rubber

2шт.

18

47391906

SCREW,Torx, M3.5 x 1.65 x 12mm

13шт.

19

84187819

SCREW,Torx Flat Hd, M6 x 12mm, Cl 5.8

8шт.

20

47399711

SCREW,M5 x 0.8 x 20mm OAL

5шт.

21

14371071

SPRING NUT,M5, 12mm W x 20.3mm OAL

9шт.

22

86555127

SCREW,M4 x 0.7 x 23.25mm OAL, Cl 4.8, Cntr Sunk

4шт.

23

84546530

STRAP

Instruction Seat

1шт.

24

12646601

WASHER,6.15mm ID x 15mm OD x 1.5mm Thk

1шт.

25

15903801

SELF-TAP SCREW,Pozidriv Pan Hd, M4.8 x 1.6 x 13mm

1шт.

26

47398712

DECAL

Case IH, Adheres to Cooler Box

1шт.

27

84553364

BRACKET

Underseat

1шт.
