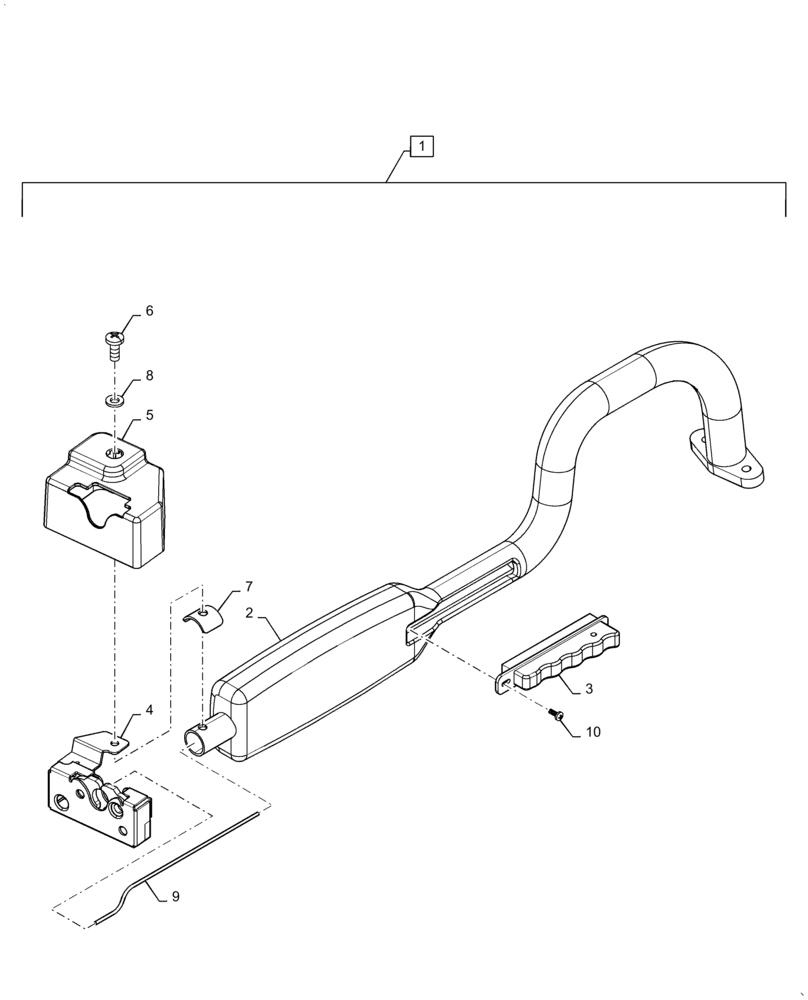

Запчасти Case IH 7140 (90.154.AA[03]) - DOOR HANDLE, GRAB RAIL (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84067947

DOOR HANDLE

Door, LH, Incl 2 - 10

1шт.

2

86521008

HANDLE

Grab, LH

1шт.

3

84320301

HANDLE

Inner

1шт.

4

86520782

LATCH

Internal Double Rotor

1шт.

5

84067944

COVER

Latch

1шт.

6

44317

SCREW,Cross Pan Hd, M8 x 16

1шт.

7

84320299

CAP COVER

Tube Bearing

1шт.

8

86511315

WASHER,8.4mm ID x 16mm OD x 1.8mm Thk

1шт.

9

84320300

CONNECTING ROD

Latch

1шт.

10

86585711

SCREW,Phillips Drive, Pan HD, M6 x 10mm, Cl 4.8

1шт.
