Запчасти Case IH 7140 (90.150.BG[02]) - ROOF, TOP COVER (90) - PLATFORM, CAB, BODYWORK AND DECALS

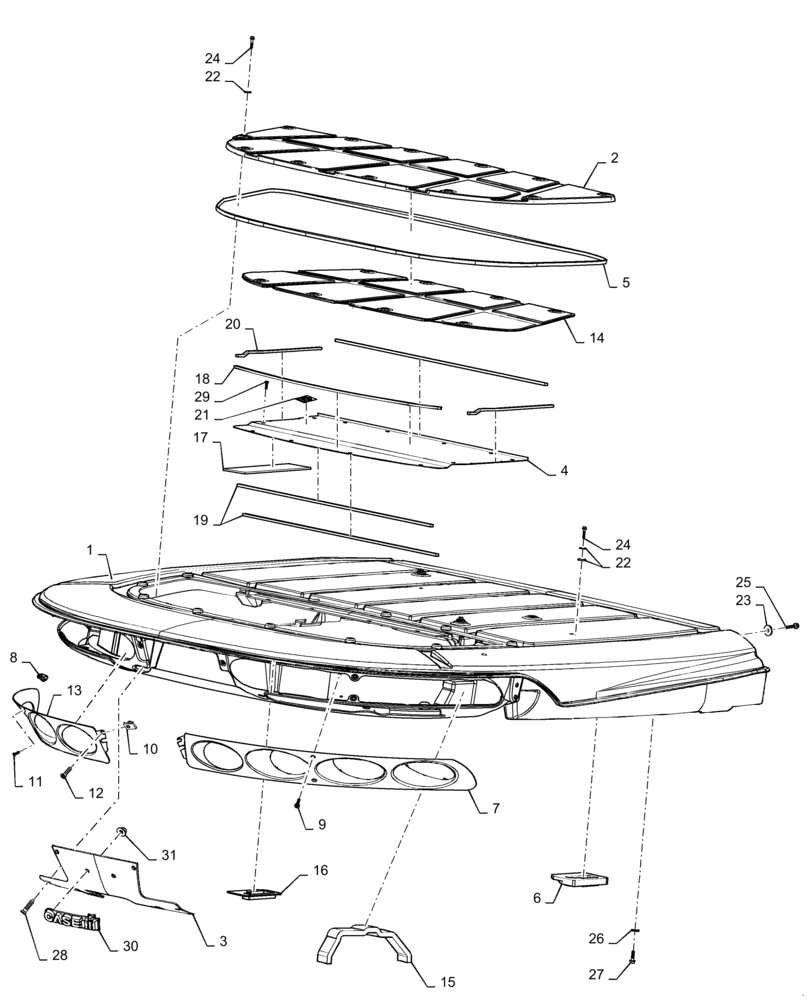

Схема запчастей Case IH 7140 - (90.150.BG[02]) - ROOF, TOP COVER (90) - PLATFORM, CAB, BODYWORK AND DECALS
13
21
2
24
6
11
16
10
31
17
15
25
22
3
23
27
26
14
7
9
24
5
19
30
8
1
22
29
4
28
18
20
12

Артикул

Название

Примечание

Количество

1

47437713

ROOF

Outside, Red

1шт.

2

84541655

ROOF

Service Panel, Red

1шт.

3

84541659

PANEL

Wiper Motor Access

1шт.

4

84540936

PLATE

HVAC Cover

1шт.

5

84541662

SEAL

Bulb

1шт.

6

84541663

GASKET,5mm Thk

B-Post Hose Protection

1шт.

7

84496414

BEZEL

LH

1шт.

8

84496413

RETAINER

Roof Light

10шт.

9

84496419

SCREW,Pozidrive, Pan HD, M4.2 x 10mm

M4 x 10mm, Pan Head

32шт.

10

833-40306

SPRING NUT,M6, U

12шт.

11

13301717

SCREW,Pozidriv Flat Hd, Csk, M6 x 25mm, Cl 5.8

12шт.

12

47365943

SCREW,FLAT, M6 x 25mm, SST

Flat Head

4шт.

13

84496415

HOOD

RH

1шт.

14

84541664

INSULATION

Radiant Heat, HVAC

1шт.

15

84549024

FOAM

Mirror Bar

2шт.

16

47395772

FOAM INSULATION

Rear LH Post

1шт.

17

84570683

FOAM

HVAC Cores, Bottom

1шт.

18

84548928

FOAM

Core Cover, Main 920mm

2шт.

19

84548930

FOAM,12.7mm W x 800mm L x 6.35mm Thk

Core Cover, Main 800mm

2шт.

20

84570680

FOAM,25.4mm W x 400mm L x 6.35mm Thk

Core, Side Cover 400mm

2шт.

21

84012596

DECAL

R-134a Refrigerant Only

1шт.

22

84072877

WASHER,6.6mm ID x 22mm OD x 2mm Thk

18шт.

23

87013351

WASHER,0.34" ID x 1.25" OD x 0.12" Thk

2шт.

24

87698760

FLANGE BOLT,M6 x 36.6mm, Cl 10.9

18шт.

25

87698763

FLANGE BOLT,Hex, M8 x 50mm, Cl 0.9

2шт.

26

87613287

WASHER,0.34" ID x 1" OD x 0.1" Thk

1" OD x .344" ID x 0.098:"

6шт.

27

86639271

BOLT,Hvy Hex, M8 x 30mm, Cl 10.9, Full Thd

6шт.

28

13301717

SCREW,Pozidriv Flat Hd, Csk, M6 x 25mm, Cl 5.8

4шт.

29

13276414

SCREW,Pozidriv Pan Hd, M6 x 20mm, Cl 5.8, Full Thd

12шт.

30

87716230

EMBLEM

Case IH

1шт.

31

86625060

PUSH-ON NUT,Self, Threading, 1/4"

2шт.

Выбрано товаров: 31
