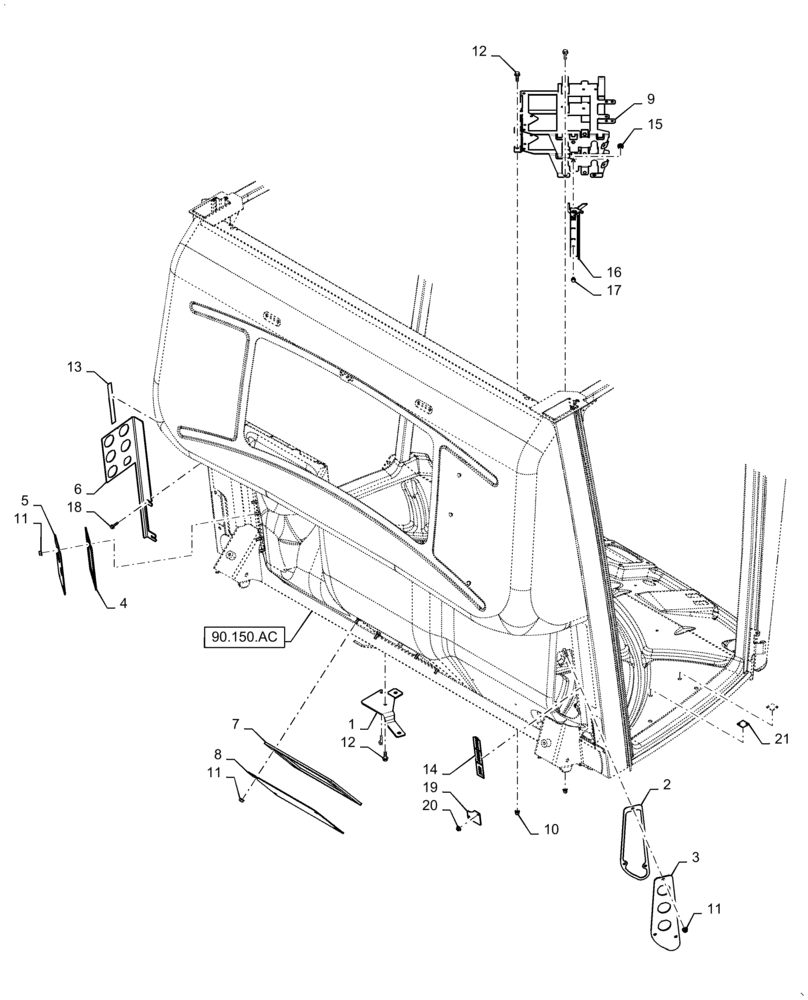

Запчасти Case IH 7140 (90.150.AD) - CAB, PLATE, ACCESS COVER (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84582900

PLATE

Bracket

1шт.

2

84563997

GASKET,3mm Thk

Bulkhead, RH

1шт.

3

47750707

PLATE

Bulkhead, RH

1шт.

4

84425615

GASKET,3mm Thk

Bulkhead, LH

1шт.

5

84560656

PLATE

Cab Pass Thru, LH

1шт.

6

47750705

PLATE

Cab Bulkhead, LH

1шт.

7

47644358

GASKET

Access Panel

1шт.

8

84421731

PLATE

Access

1шт.

9

84544095

SUPPORT

Bracket

2шт.

10

87284531

NUT,Rivnut, M8 x 1.25, 0.5mm - 3mm Grip Range

6шт.

11

87681210

FLANGE NUT,M8 x 1.25, Cl 10

11шт.

12

87698833

BOLT,M8 x 33.1mm, Cl 10.9

6шт.

13

47825383

DECAL

Electrical Bulkhead, LH

1шт.

14

47825380

DECAL

Electrical Bulkhead, RH

1шт.

15

86610198

INSERT,M6 x 1

4шт.

16

47605696

SUPPORT

Bracket

1шт.

17

87698753

FLANGE BOLT,M6 x 12mm, Cl 10.9, Full Thd

4шт.

18

87670758

FLANGE BOLT,M6 x 31.6mm, Cl 10.9

2шт.

19

84470735

PLATE

Corner

1шт.

20

86507064

FLANGE NUT,M5 x 0.8

2шт.

21

84575124

PLATE

Mount

4шт.
