Запчасти Case IH 7140 (90.124.AN[02]) - VAR - 425556 - SEAT SUSPENSION, SEMI-ACTIVE (90) - PLATFORM, CAB, BODYWORK AND DECALS

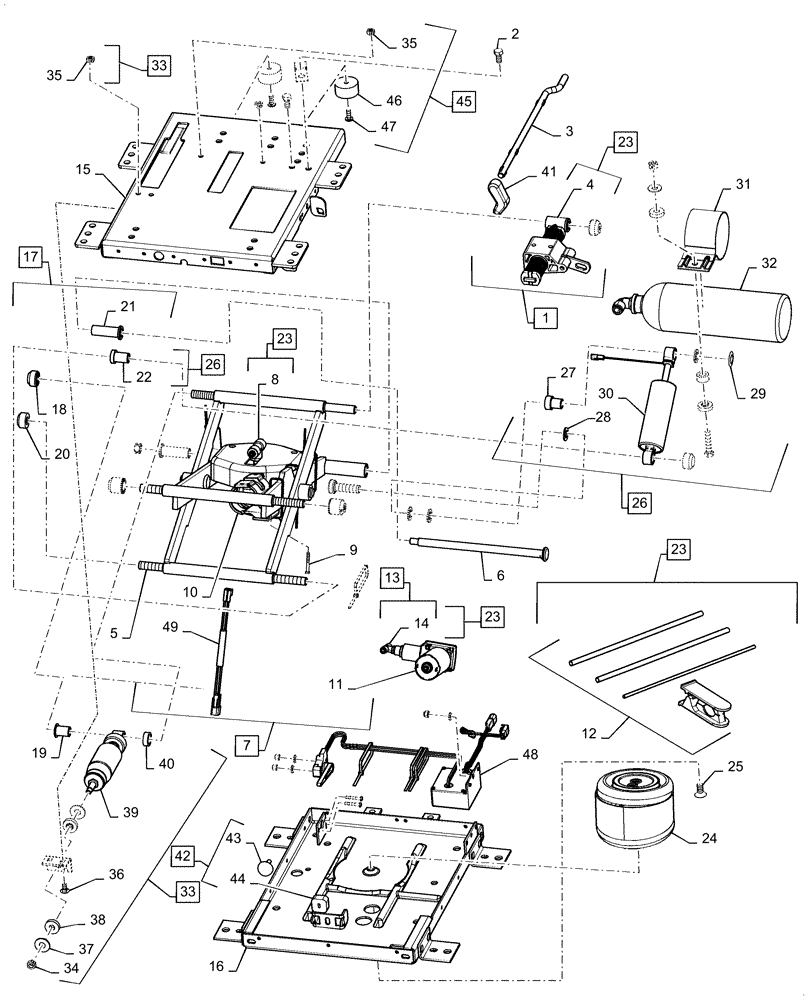

Схема запчастей Case IH 7140 - (90.124.AN[02]) - VAR - 425556 - SEAT SUSPENSION, SEMI-ACTIVE (90) - PLATFORM, CAB, BODYWORK AND DECALS
23
6
16
18
26
33
3
30
49
15
25
38
33
2
36
45
8
32
23
34
21
23
46
43
26
31
11
35
48
35
20
13
9
12
24
41
27
1
23
7
40
19
42
4
37
44
10
14
29
17
28
39
22
47
5

Артикул

Название

Примечание

Количество

1

84244765

SERVICE KIT

Isolator Latch, Incl 2 - 4, 41

1шт.

2

NSS

NOT SOLD SEPARAT

Bolt, Incl in 1

1шт.

3

NSS

NOT SOLD SEPARAT

Isolator Control Lever, Incl in 1

1шт.

4

NSS

NOT SOLD SEPARAT

Isolator Latch, Incl in 1

1шт.

5

47368671

SERVICE KIT

Frame, Scissors

1шт.

6

143786A1

SHAFT,308.9mm L

Bearing

1шт.

7

47368672

SERVICE KIT

Air Compressor, 12V, Incl 8 - 11, 49

1шт.

8

NSS

NOT SOLD SEPARAT

Fitting, Incl in 7

1шт.

9

NSS

NOT SOLD SEPARAT

Bolt, Incl in 7

1шт.

10

NSS

NOT SOLD SEPARAT

Compressor Clamp, Incl in 7

1шт.

11

NSS

NOT SOLD SEPARAT

Compressor, Incl in 7

1шт.

12

47368664

SERVICE KIT

Air Line Tubing

1шт.

13

47368666

SERVICE KIT

Air Line Fittings, Incl in 8, 14

1шт.

14

NSS

NOT SOLD SEPARAT

Fitting, Incl in 13

1шт.

15

47368675

PLATE

Upper Housing

1шт.

16

47368698

SERVICE KIT

Lower Housing

1шт.

17

87347967

BEARING ASSY

Seat, Incl 18 - 22

1шт.

18

NSS

NOT SOLD SEPARAT

Roller, Incl in 17

1шт.

19

NSS

NOT SOLD SEPARAT

Shock Bushing, Incl in 17

1шт.

20

NSS

NOT SOLD SEPARAT

Roller, Incl in 17

1шт.

21

NSS

NOT SOLD SEPARAT

Bearing Tube, Incl in 17

1шт.

22

NSS

NOT SOLD SEPARAT

Shock Bearing, Incl in 17

1шт.

23

47368706

SERVICE KIT

Air Spring, Incl 8, 12, 14, 24, 25

1шт.

24

NSS

NOT SOLD SEPARAT

Air Spring, Incl in 23

1шт.

25

NSS

NOT SOLD SEPARAT

Screw, Incl in 23

1шт.

26

47368729

SERVICE KIT

Semi-Active Shock, Incl 22, 27 - 32

1шт.

27

NSS

NOT SOLD SEPARAT

Shock Bearing, Incl in 26

1шт.

28

NSS

NOT SOLD SEPARAT

Spacer, Incl in 26

1шт.

29

NSS

NOT SOLD SEPARAT

Retainer, Incl in 26

1шт.

30

NSS

NOT SOLD SEPARAT

Shock Absorber, Incl in 26

1шт.

31

NSS

NOT SOLD SEPARAT

Tank Clamp, Incl in 26

1шт.

32

NSS

NOT SOLD SEPARAT

Air Tank, Incl in 26

1шт.

33

227546A1

KIT

Isolator Shock, Incl 19, 34 - 40

1шт.

34

230-4715

LOCK NUT,5/16"-24, GA

1шт.

35

231-1444

NUT,1/4"-20, GB

2шт.

36

434-48

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1/2", Gr 5

2шт.

37

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

2шт.

38

A49679

BUSHING

Shock Absorber

2шт.

39

NSS

NOT SOLD SEPARAT

Shock Absorber, Incl in 33

1шт.

40

NSS

NOT SOLD SEPARAT

Spacer, Incl in 33

1шт.

41

84189454

SEAT ACCESSORY

Seat Control Knob, Incl in 1

1шт.

42

84603019

KIT

Bumper, Incl 43, 44

1шт.

43

NSS

NOT SOLD SEPARAT

Bumper, Incl in 42

1шт.

44

NSS

NOT SOLD SEPARAT

Bumper Bracket, Incl in 42

1шт.

45

87347960

SERVICE KIT

Air Tank, Incl 35, 46, 47

1шт.

46

NSS

NOT SOLD SEPARAT

Bumper, Incl in 45

1шт.

47

NSS

NOT SOLD SEPARAT

Bolt, Incl in 45

1шт.

48

47368735

SERVICE KIT

Damping Control

1шт.

49

NSS

NOT SOLD SEPARAT

Compressor Harness, Incl in 7

1шт.

Выбрано товаров: 49
