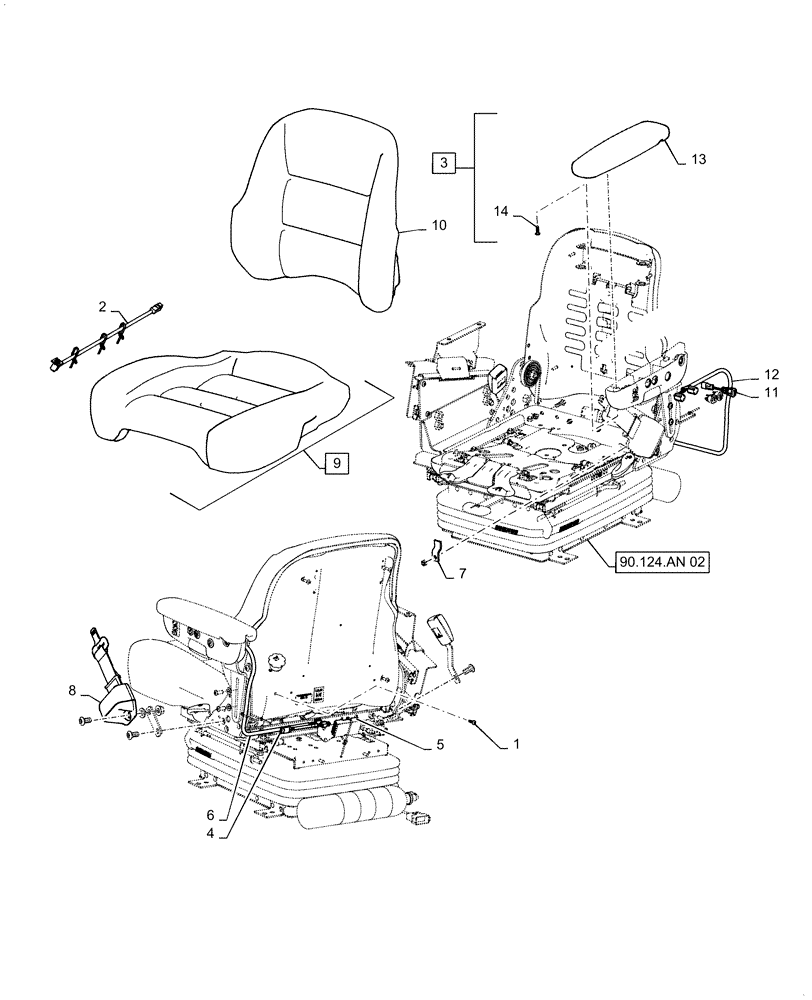

Запчасти Case IH 7140 (90.124.AH[02]) - VAR - 425555, 425556 - SEAT CUSHION & ARMREST, LEATHER (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47357001

SERVICE KIT

Cushion Attachment

1шт.

2

84173154

SWITCH ASSY

OPS

1шт.

3

47368639

SERVICE KIT

Armrest Pad, LH, Incl 13, 14

1шт.

4

84392266

HARNESS

Seat Heater and Switch

1шт.

5

84392269

CONTROLLER

Seat Heater

1шт.

6

47368651

SERVICE KIT

Heater Jumper Harness

1шт.

7

84602733

KIT

Recliner Stop

1шт.

8

47670121

SEAT BELT

Assy

1шт.

9

47776535

KIT

Seat, Cushion, Incl 2

1шт.

10

47776540

KIT

Back, Cushion

1шт.

11

47368657

SERVICE KIT

Ride Selector Switch, VAR - 425556

1шт.

12

87626130

HARNESS

Ride Control, VAR - 425556

1шт.

13

NSS

NOT SOLD SEPARAT

Armrest, Incl in 3

1шт.

14

NSS

NOT SOLD SEPARAT

Screw, Incl in 3

1шт.
