Запчасти Case IH 7140 (90.124.AH[01]) - VAR - 425187 - SEAT CUSHION & ARMREST, CLOTH (90) - PLATFORM, CAB, BODYWORK AND DECALS

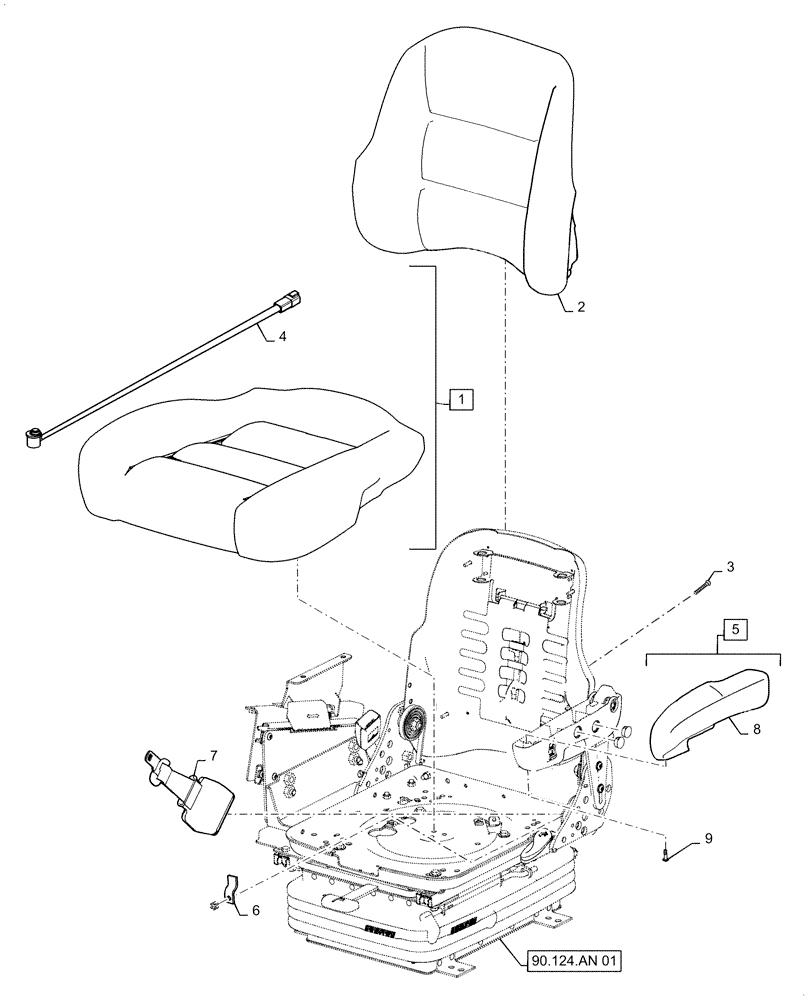

Схема запчастей Case IH 7140 - (90.124.AH[01]) - VAR - 425187 - SEAT CUSHION & ARMREST, CLOTH (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.124.an 01
4
2
1
9
8
6
5
7
3

Артикул

Название

Примечание

Количество

1

47368353

SEAT CUSHION

Wheat, Incl 4

1шт.

2

47368359

SEAT CUSHION

Back, Wheat

1шт.

3

47357001

SERVICE KIT

Cushion Attachment

1шт.

4

84173154

SWITCH ASSY

OPS

1шт.

5

47368638

SERVICE KIT

Armrest Pad, LH, Incl 8, 9

1шт.

6

84602733

KIT

Recliner Stop

1шт.

7

47670121

SEAT BELT

Seat

1шт.

8

NSS

NOT SOLD SEPARAT

Armrest, Incl in 5

1шт.

9

NSS

NOT SOLD SEPARAT

Screw, Incl in 5

1шт.

Выбрано товаров: 9
