Запчасти Case IH 7140 (90.118.BM[02]) - VAR - 425358 - ELECTRIC MIRROR (90) - PLATFORM, CAB, BODYWORK AND DECALS

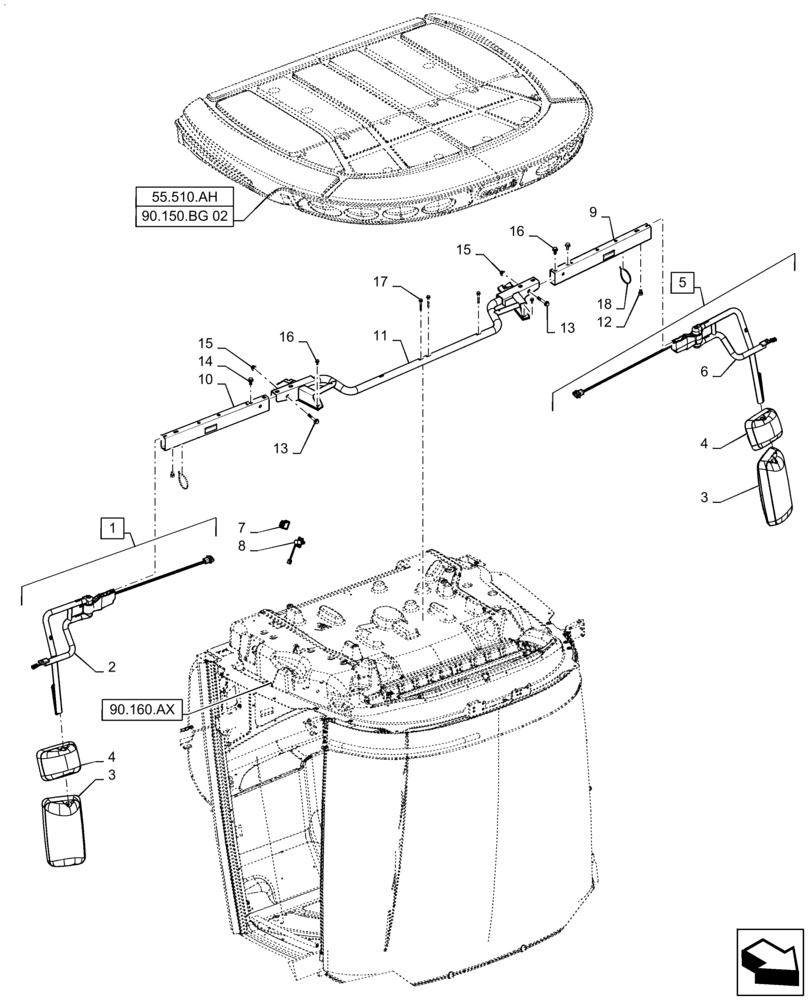

Схема запчастей Case IH 7140 - (90.118.BM[02]) - VAR - 425358 - ELECTRIC MIRROR (90) - PLATFORM, CAB, BODYWORK AND DECALS
55.510.ah
15
16
2
3
10
13
3
4
1
16
11
13
18
15
7
4
90.160.ax
6
14
12
90.150.bg 02
8
9
5
17

Артикул

Название

Примечание

Количество

1

47406334

MIRROR ARM

RH, Incl 2 - 4

1шт.

2

84548136

TUBE

Mirror, RH

1шт.

3

84379447

REAR VIEW MIRROR,204.72mm x 653mm

Main

2шт.

4

84379458

REAR VIEW MIRROR

Wide

2шт.

5

47406335

MIRROR ARM

LH, Incl 3, 4, 6

1шт.

6

84548138

SUPPORT

Mirror, LH

1шт.

7

84380251

SWITCH

Rocker, Mirror Heat

1шт.

8

84380253

SWITCH

Rotary, Mirror Adjustment

1шт.

9

47404694

SUPPORT

Mirror, LH

1шт.

10

47404696

SUPPORT

Mirror, RH

1шт.

11

47392095

SUPPORT

Mirror Bar/ Roof Support

1шт.

12

84552992

SET SCREW,M12 x 1.75 x 20mm OAL, 10.9

2шт.

13

87698845

BOLT,M12 x 70, Cl 10.9

2шт.

14

87343550

FLANGE BOLT,Hex, M12 x 25mm

4шт.

15

86512497

FLANGE NUT,M12 x 1.75, Cl 10

2шт.

16

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

4шт.

17

87670761

FLANGE BOLT,M8 x 68.1mm, Cl 10.9

4шт.

18

86566990

CABLE TIE,292mm OAL x 4.8mm W

2шт.

Выбрано товаров: 18
