Запчасти Case IH 7140 (90.105.BH[03]) - SIDE PANEL, BODY, RH (90) - PLATFORM, CAB, BODYWORK AND DECALS

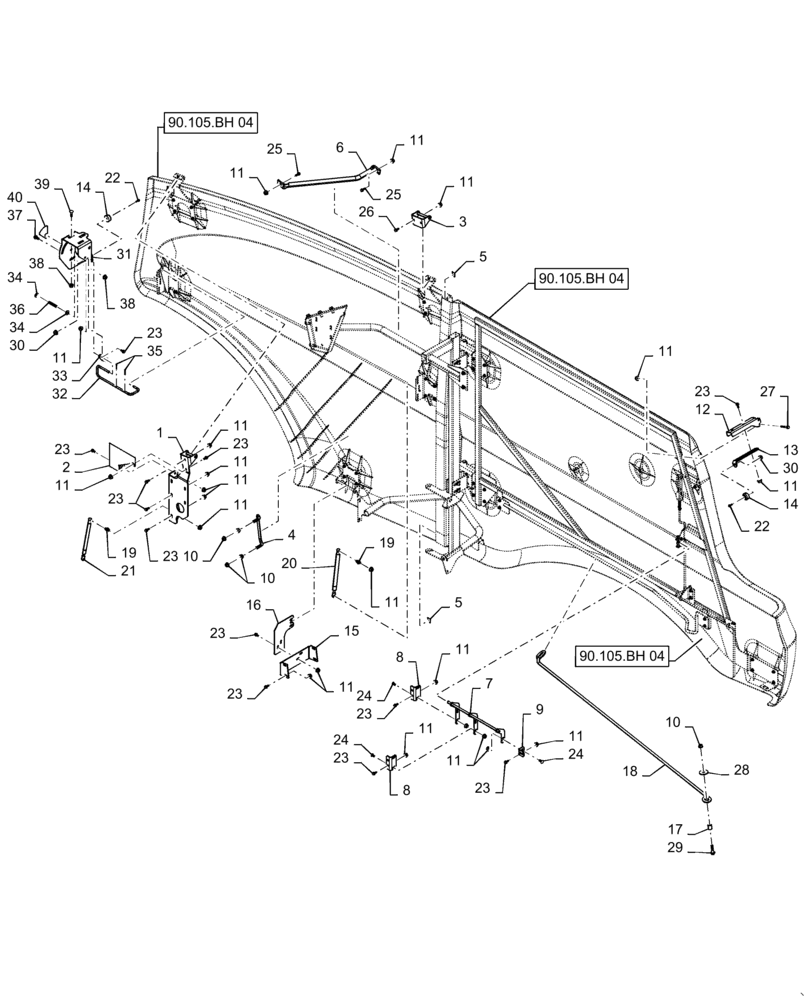

Схема запчастей Case IH 7140 - (90.105.BH[03]) - SIDE PANEL, BODY, RH (90) - PLATFORM, CAB, BODYWORK AND DECALS
26
27
23
11
2
11
10
30
29
23
38
24
23
11
34
31
37
33
23
11
11
6
11
7
12
10
23
19
13
1
24
30
11
23
10
38
11
35
5
34
39
11
22
40
18
5
23
19
23
24
11
22
14
25
23
11
3
20
4
8
11
11
23
32
21
28
16
36
14
23
8
90.105.bh 04
90.105.bh 04
90.105.bh 04
9
25
11
11
11
17
11
15

Артикул

Название

Примечание

Количество

1

87663834

BRACKET

Front Hinge

1шт.

2

87666897

PLATE

Cover

1шт.

3

87624895

BRACKET

Rear Hinge

1шт.

4

87711329

HANDLE

Elevator Step

1шт.

5

86984222

PAD

Adhesive Back

2шт.

6

47776563

SUPPORT

Tube

1шт.

7

87709512

BRACKET

Latch, Rear Panel

1шт.

8

87709508

BRACKET

Rear Panel Latch Mounting

2шт.

9

87709506

BRACKET

Rear Panel Latch Mounting

1шт.

10

86512497

FLANGE NUT,M12 x 1.75, Cl 10

5шт.

11

86507066

FLANGE NUT,M8 x 1.25, Cl 10

37шт.

12

87485146

BRACKET

Rear Panel Bumper Channel

1шт.

13

87485148

BRACKET

Rear Panel Bumper

1шт.

14

87602893

BUMPER,6.4mm ID x 38mm OD x 19mm Thk

2шт.

15

47776497

BRACKET

Support

1шт.

16

47548922

BRACKET

Front Panel Latch

1шт.

17

87036416

SPACER,13.51mm ID x 19.05mm OD x 26.97mm L

Seat Belt

1шт.

18

87654944

ROD

Rear Door Keeper

1шт.

19

86634307

STUD

Ball

2шт.

20

87757843

GAS STRUT

700N

1шт.

21

87688426

GAS STRUT

250N

1шт.

22

87675531

FLANGE BOLT,M6 x 26.6mm, Cl 10.9

2шт.

23

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

24шт.

24

87682383

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 10.9

5шт.

25

87698833

BOLT,M8 x 33.1mm, Cl 10.9

2шт.

26

87682384

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 10.9

2шт.

27

87670761

FLANGE BOLT,M8 x 68.1mm, Cl 10.9

2шт.

28

29684

WASHER,13.5mm ID x 50.8mm OD x 5.52mm Thk

1шт.

29

87670764

BOLT,M12 x 61.8mm, Cl 10.9

1шт.

30

86619800

FLANGE NUT,M6 x 1, Cl 8

2шт.

31

47376576

BRACKET

Transport Lock

1шт.

32

87470711

ROD

Transport Lock Latch, Front

1шт.

33

87676999

BRACKET

Strap

1шт.

34

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

2шт.

35

432-812

COTTER PIN,3/4" OAL x 1/8" W

2шт.

36

192216A1

SPRING

Compression

1шт.

37

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

1шт.

38

86050279

FLANGE NUT,M10 x 1.5, Cl 10

4шт.

39

87682393

CARRIAGE BOLT,M10 x 1.5 x 35mm, Cl 10.9

3шт.

40

87479418

DECAL

Trim Panel Lock

1шт.

Выбрано товаров: 40
