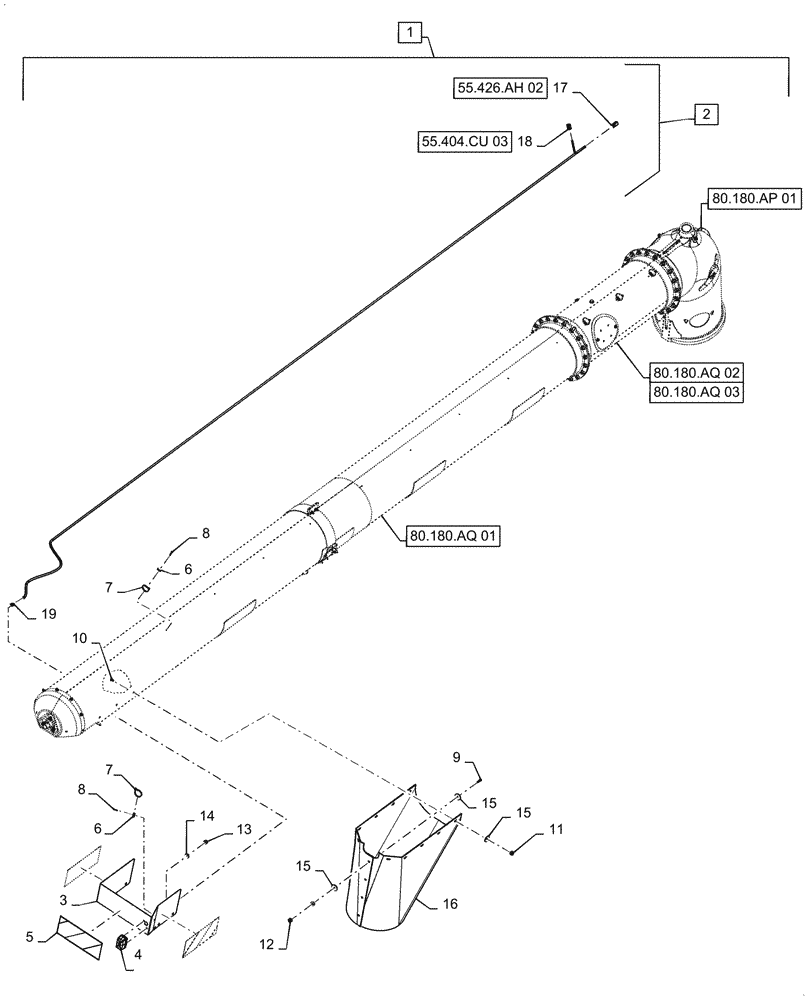

Запчасти Case IH 7140 (88.100.80[02]) - DIA KIT, VERTICAL DISCHARGE SPOUT (88) - ACCESSORIES

1

84158659

DIA KIT, HARVESTER

Unloader Vertical Discharge, Incl 2 - 16

1шт.

2

86610718

WIRE HARNESS

Vertical Discharge, Incl 17 - 19

1шт.

3

84452652

SUPPORT

Plate

1шт.

4

84429842

LAMP

Discharge Spout

1шт.

5

84441358

DECAL

Visibility

3шт.

6

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

2шт.

7

86566989

CABLE TIE,208mm L

2шт.

8

325911

RIVET,Pop, 4.75mm OD x 7.4mm L

2шт.

9

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

4шт.

10

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

10шт.

11

86629542

NUT,M8 x 1.25, Cl 8.8

10шт.

12

9706690

NUT,M8 x 1.25, Cl 8

8шт.

13

43440

LOCK NUT,M5 x .8, Cl 8

2шт.

14

140014

WASHER,M5 x 10mm OD x 1mm Thk

2шт.

15

322

WASHER,8.73mm ID x 42.07mm OD x 3.43mm Thk

18шт.

16

84064911

CANVAS,1288.3mm W x 1396.9mm L

16шт.

17

87695914

CONNECTION,ELECTRIC

Grain Tank, X-105

1шт.

17

87694145

ELEC CONNECTOR

Lock, Grain Tank, X-105

1шт.

17

86500035

ELEC. TERMINAL PIN,Male, 0.75 - 2mm

Grain Tank, X-105

4шт.

18

87708147

ELEC CONNECTOR,Female, 4 Cavities

Unload Tube, X-105

1шт.

18

84074640

LOCKING TAB,Wedge Lock

Unload Tube, X-105

1шт.

18

84068583

PLUG,12 - 16 Ga, White

Unload Tube, X-105

2шт.

18

86500035

ELEC. TERMINAL PIN,Male, 0.75 - 2mm

Unload Tube, X-105

2шт.

19

82012083

WIRE CONNECTOR,Female

Unload Tube Marker Light, X-323

1шт.

19

82012084

SEAL,1.4mm ID

Unload Tube Marker Light, X-323

2шт.

19

87702671

ELEC CONNECTOR,Tin, 0.75 - 1.50mm

Terminal, Unload Tube Marker Light, X-323

2шт.
