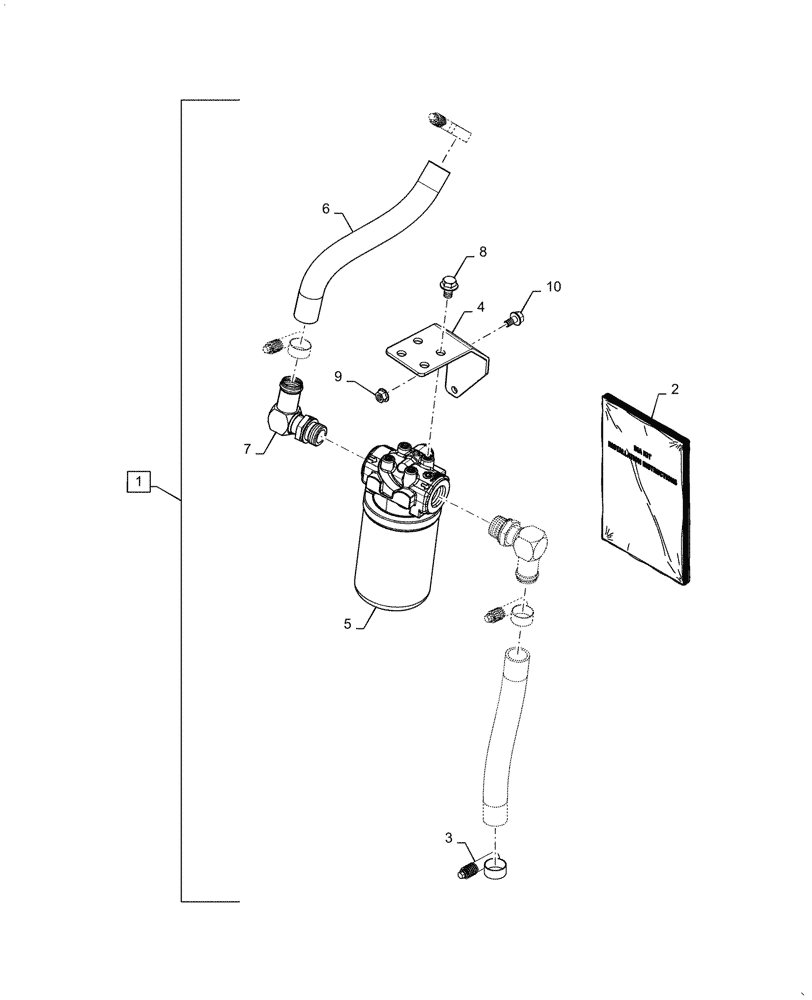

Запчасти Case IH 7140 (88.100.35[02]) - DIA KIT, COOLER FILTER (88) - ACCESSORIES

1

48008792

DIA KIT, HARVESTER

DIA Kit, Cooler Filter Install, Incl 2 - 10

1шт.

2

48008833

INSTRUCTION

Instruction Sheet

1шт.

3

214-3228

HOSE CLAMP,1" - 1-7/8", HD Worm, W/ Liner

4шт.

4

47996345

BRACKET

Filter Mount

1шт.

5

86998689

HYDRAULIC OIL FILTER

PTO Lube

1шт.

6

408846A1

HOSE

Cooler Return

2шт.

7

84210609

90 ELBOW

M27

2шт.

8

87021006

BOLT,M10 x 26.4mm, Cl 10.9

4шт.

9

86507066

FLANGE NUT,M8 x 1.25, Cl 10

2шт.

10

87681207

BOLT,M8 x 24.1mm, Cl 10.9

2шт.
