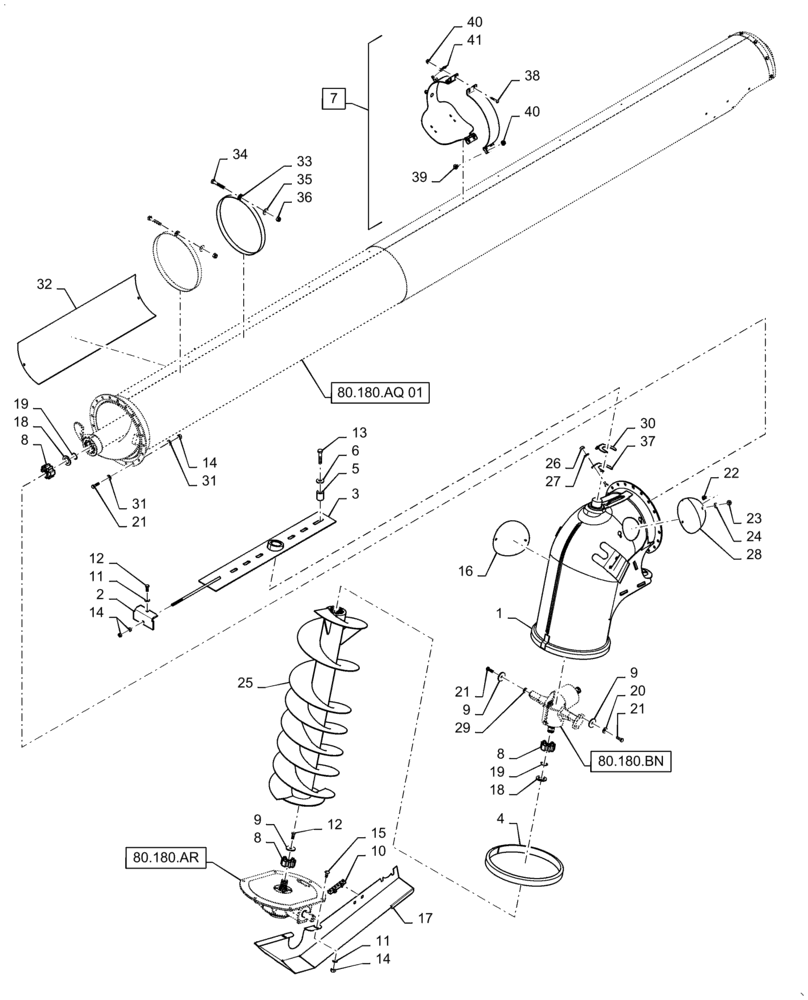

Запчасти Case IH 7140 (80.180.AP[02]) - VAR - 425078, 425314, 722740 - UNLOADING TUBE & AUGER ASSY, PERFORATED (80) - CROP STORAGE/UNLOADING

1

84126361

ELBOW,Unloading Auger

Painted

1шт.

2

84072832

BRACKET

Angle

1шт.

3

47420695

PLATE

Bearing

1шт.

4

86558526

BUSHING,408mm ID x 440mm OD x 40mm OAL

1шт.

5

87284863

SPACER,38mm OD x 46mm OAL

6шт.

6

86589278

BELLEVILLE WASHER,17mm ID x 41.5mm OD x 4.5mm Thk

6шт.

7

84248894

SECURING BAND

Tube, Incl 38 - 41

1шт.

8

87011705

HUB,21T

Auger

3шт.

9

327084

WASHER,13mm ID x 52mm OD x 5mm Thk

3шт.

10

3102155R1

HOLDER

Shear Bolt

1шт.

11

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

7шт.

12

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

2шт.

13

86577946

BOLT,Hex, M16 x 80mm x 10.9

6шт.

14

9706685

NUT,M12 x 1.75, Cl 8

27шт.

15

120044

CARRIAGE BOLT,M12 x 1.75 x 30mm, Cl 8.8

6шт.

16

87552532

COVER

Inspection

1шт.

17

87476437

GUARD

Unloader Chain Drive

1шт.

18

84072793

WASHER,35.5mm ID x 58mm OD x 5mm Thk

2шт.

19

370004

SNAP RING,M35 x 1.5mm Thk, External

2шт.

20

86585939

BELLEVILLE WASHER,M12 Bolt Size x 32mm OD x 3.5mm Thk

3шт.

21

300389

BOLT,M12 x 1.75 x 35mm, Cl 8.8

22шт.

22

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

4шт.

23

9706690

NUT,M8 x 1.25, Cl 8

4шт.

24

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

25

84447940

AUGER

Vertical

1шт.

26

100016

NUT,M10 x 1.5, Cl 8

1шт.

27

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

28

87552534

COVER

Inspection

1шт.

29

378245

WASHER,13mm ID x 28.5mm OD x 2.7mm Thk

1шт.

30

87620925

SHIM,3.2mm Thk

Bearing Plate

1шт.

31

394630

WASHER,13mm ID x 28mm OD x 4mm Thk

38шт.

32

87552568

COVER

Unloader

1шт.

33

87552565

CLAMP,356mm

Unloader

4шт.

34

120107

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8, Full Thd

4шт.

35

378243

WASHER,8.4mm ID x 21mm OD x 1.6mm Thk

4шт.

36

86629542

NUT,M8 x 1.25, Cl 8.8

4шт.

37

87627724

SHIM,1.7mm Thk

Bearing Plate

1шт.

38

120039

CARRIAGE BOLT,M8 x 1.25 x 54.8mm, Cl 8.8

2шт.

39

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

2шт.

40

86619801

FLANGE NUT,M8 x 1.25, Cl 8

4шт.

41

87106279

PIN,6.4mm OD

Linch

1шт.
