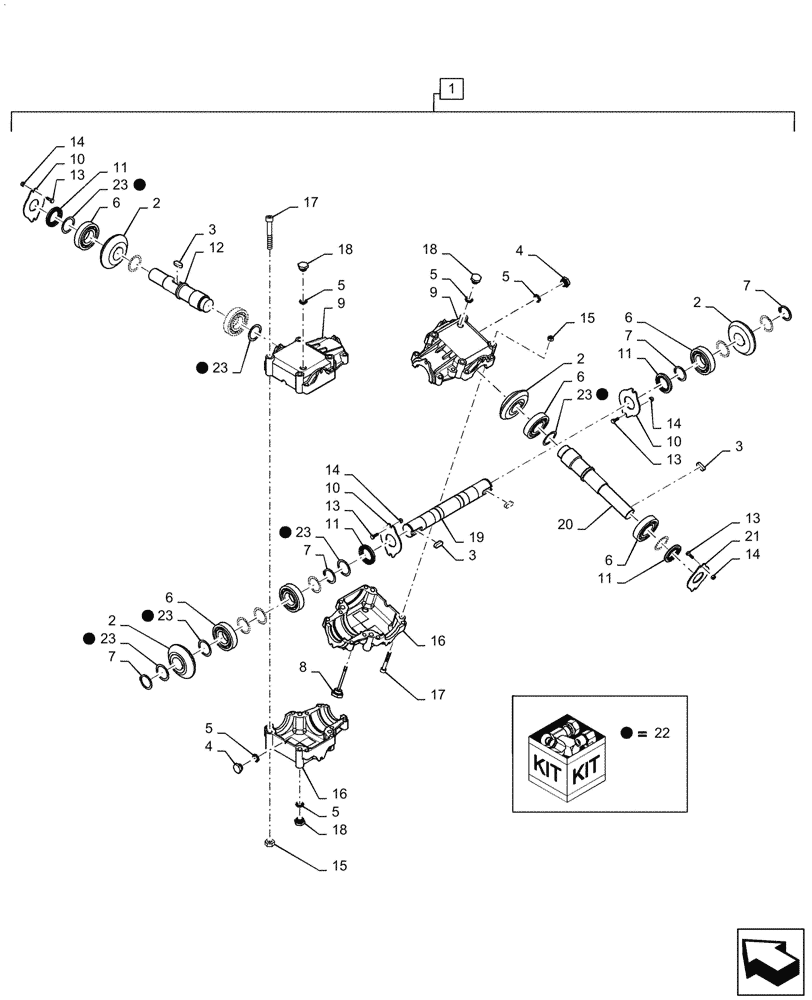

Запчасти Case IH 7140 (80.150.BK) - VAR - 722630, 722632 - GEARBOX, BUBBLE-UP AUGER (80) - CROP STORAGE/UNLOADING

1

87721343

GEARBOX

Bubble Up, Incl 2 - 23

1шт.

1

87721343R

REMAN-GEARBOX

Bubble Up, Incl 2 - 23

1шт.

1

87721343C

CORE-GEARBOX

Return Number

1шт.

2

87441215

BEVEL GEAR

Bevel, 18 Tooth, 93mm OD

4шт.

3

368317

KEY,10mm x 8mm x 25mm

4шт.

4

87452540

DRAIN PLUG

3/8" Gas

2шт.

5

129979

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

6шт.

6

76491H

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm W

4шт.

7

370004

SNAP RING,M35 x 1.5mm Thk, External

4шт.

8

87723461

DIPSTICK

Oil Level

1шт.

9

84155130

GEARBOX

Half, Upper, Bubble Up Gearbox

2шт.

10

87281180

COVER PLATE

35mm ID x 72mm OD

3шт.

11

87441213

OIL SEAL,35mm ID x 52mm OD x 7mm Thk

4шт.

12

87441212

SHAFT

Output, 255.2mm OAL

1шт.

13

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

8шт.

14

353308

NUT,M6 x 1.0, Cl 8

8шт.

15

9706690

NUT,M8 x 1.25, Cl 8

16шт.

16

87723460

GEARBOX

Half, Lower, Bubble Up Gearbox

2шт.

17

14302221

HEX SOC SCREW,M8 x 55mm, Cl 8.8

16шт.

18

87441210

PLUG

3/8" Gas

3шт.

19

87441209

SHAFT

Intermediate, 286.2mm OAL

1шт.

20

87441208

SHAFT

Output, 201mm OAL

1шт.

21

87281170

COVER PLATE

31.8mm ID x 72mm OD

1шт.

22

87282026

SHIM

Kit, Incl 23

1шт.

23

87039406

SHIM,35mm ID x 45mm OD x 0.1mm Thk

1шт.

23

87039407

SHIM,35mm ID x 45mm OD x 0.15mm Thk

1шт.

23

87039408

SHIM,35mm ID x 45mm OD x 0.3mm Thk

1шт.

23

87039409

SHIM,35mm ID x 45mm OD x 0.5mm Thk

1шт.
