Запчасти Case IH 7140 (74.140.AX) - ELEVATOR DRIVE JACKSHAFT (74) - CLEANING

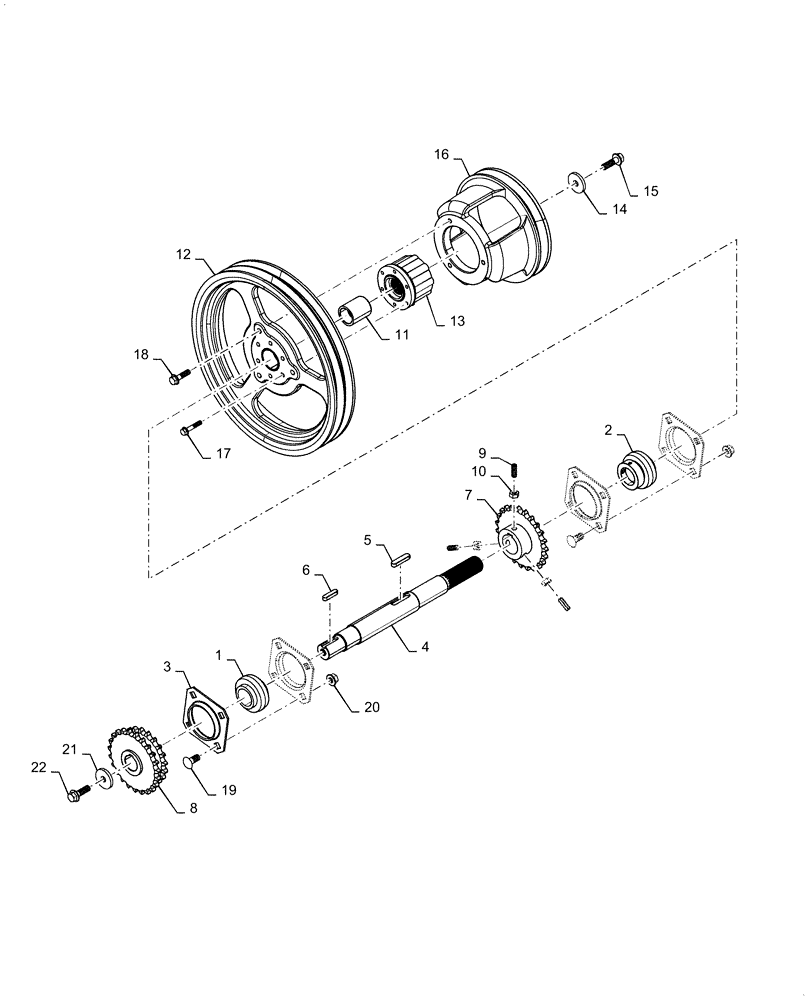

Схема запчастей Case IH 7140 - (74.140.AX) - ELEVATOR DRIVE JACKSHAFT (74) - CLEANING
3
10
2
13
14
12
16
21
9
22
20
4
11
18
8
1
19
5
15
6
7
17

Артикул

Название

Примечание

Количество

1

87605595

BEARING,40mm ID x 80mm OD x 22mm W

1шт.

2

87605593

BEARING ASSY,40mm ID x 80mm OD x 22mm W

1шт.

3

1307583C1

FLANGED BEARING

80mm, 4 Bolt

4шт.

4

47931398

JACKSHAFT

Elevator Drive

1шт.

5

170056

KEY,12mm W x 50mm OAL

1шт.

6

354775

KEY,10mm x 8mm x 40mm

1шт.

7

47629341

SPROCKET

Elevator, 23T

1шт.

8

47629534

SPROCKET

Elevator Drive, 20/23T

1шт.

9

300484

SET SCREW

M10 x 30mm

3шт.

10

100016

NUT,M10 x 1.5, Cl 8

3шт.

11

47811291

HUB

Jackshaft Pulley

1шт.

12

47629542

PULLEY,60mm W x 424mm OD

Elevator Drive W/ Bushing

1шт.

13

47803067

CLUTCH

Radial Pin

1шт.

14

47931399

WASHER

17.5mm x 55mm x 12mm

1шт.

15

47715976

BOLT

M16 X 50mm

1шт.

16

47361851

PULLEY

Cleaning System Drive

1шт.

17

84401335

BOLT,Hex, M8 x 45mm, Cl 10.9

6шт.

18

87698839

FLANGE BOLT,M10 x 40mm, Cl 10.9

3шт.

19

87695426

CARRIAGE BOLT,M12 x 30mm, Cl 0.9

8шт.

20

86512497

FLANGE NUT,M12 x 1.75, Cl 10

8шт.

21

47885568

WASHER

13.5mm x 55mm x 12mm

1шт.

22

87672196

FLANGE BOLT,Hex, M12 x 45mm, Cl 10.9

1шт.

Выбрано товаров: 22
