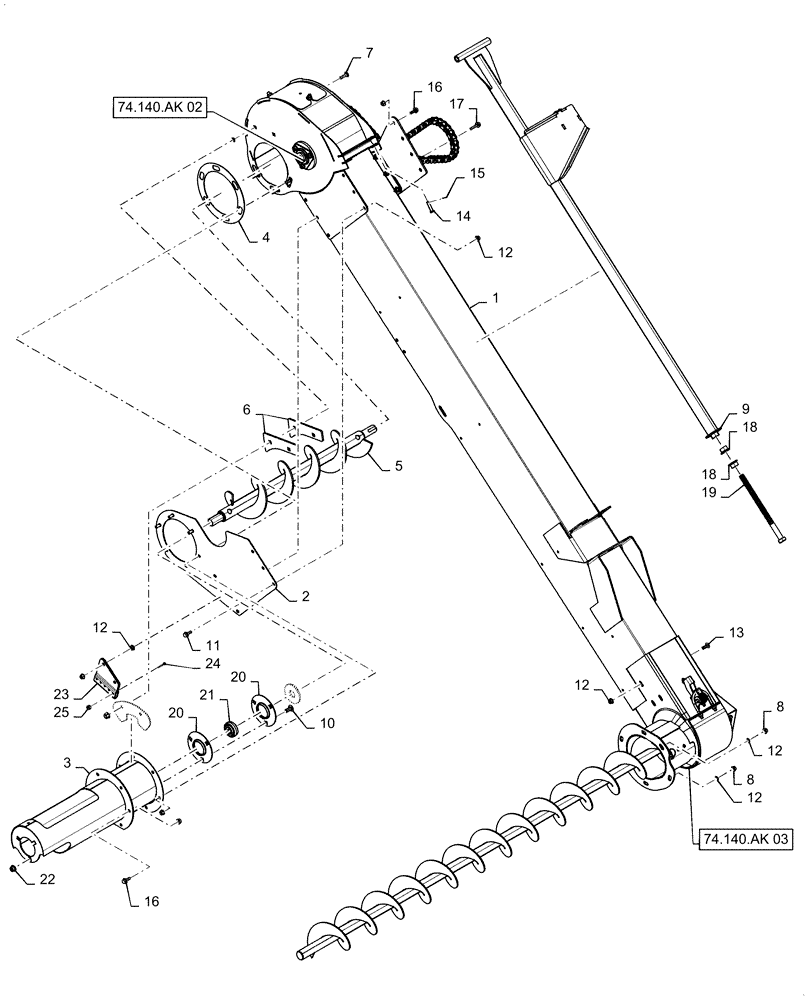

Запчасти Case IH 7140 (74.140.AK[01]) - TAILINGS ELEVATOR (74) - CLEANING

1

47880565

HOUSING

Tailings Elevator

1шт.

2

47717183

PANEL

Head Support, Inner

1шт.

3

47883611

TUBE

Delivery Auger

1шт.

4

47563543

PIVOT

Elevator Head Slide

2шт.

5

47755502

AUGER

Delivery

1шт.

6

47719309

PLATE

Head Brace Shim

2шт.

7

87682385

CARRIAGE BOLT,Sht Sq Nk, M8 x 30mm, Cl 10.9

2шт.

8

84359103

NUT,Push On, M8

Push On

10шт.

9

47878684

SUPPORT

Compression Post

1шт.

10

87682391

CARRIAGE BOLT,M10 x 1.5 x 25mm, Cl 10.9

3шт.

11

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

3шт.

12

86507066

FLANGE NUT,M8 x 1.25, Cl 10

15шт.

13

847-3825

SERRATED SCREW,M8 x 25mm, Cl 10.9

3шт.

14

412414

CLEVIS PIN,M8 x 35

2шт.

15

432-48

COTTER PIN,1/16" x 1/2"

2шт.

16

87698833

BOLT,M8 x 33.1mm, Cl 10.9

14шт.

17

84465299

FLANGE BOLT,M8 x 43.1mm, Cl 10.9

2шт.

18

86512498

FLANGE NUT,M16 x 2, Cl 10

2шт.

19

389034

BOLT,Hex, M16 x 2 x 251mm, Cl 8.8, Full Thd

1шт.

20

380288A1

FLANGED BEARING

Auger Bed, 52mm

2шт.

21

87650438

BALL BEARING,22.25mm Hex x 52mm OD x 25.4mm W

Shaker Shaft

1шт.

22

86050279

FLANGE NUT,M10 x 1.5, Cl 10

3шт.

23

47768627

BRACKET

Shear Bolt Storage

1шт.

24

385682

BOLT,Hex, M4 x 30mm, Cl 8.8

5шт.

25

385681

NUT,M4 x 0.7, Cl 8

5шт.
