Запчасти Case IH 7140 (74.136.AC[01]) - CLEANING SYSTEM BELT DRIVE (74) - CLEANING

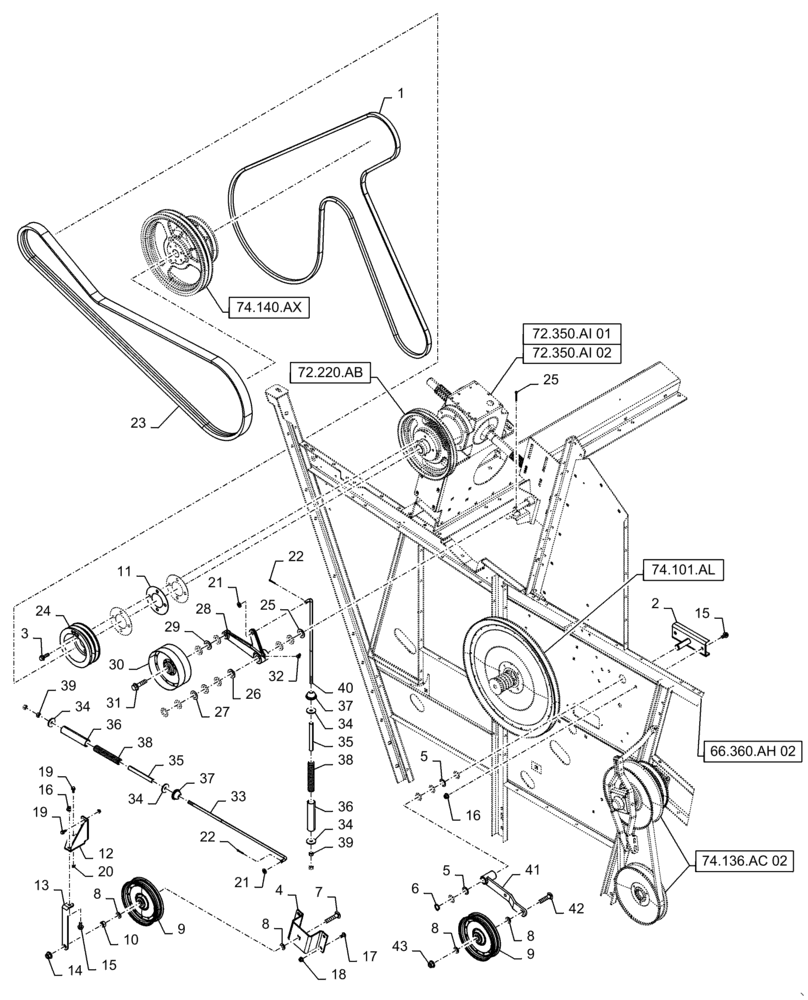

Схема запчастей Case IH 7140 - (74.136.AC[01]) - CLEANING SYSTEM BELT DRIVE (74) - CLEANING
13
9
15
34
14
17
66.360.ah 02
34
22
25
38
8
21
19
42
40
8
72.220.ab
37
28
5
23
12
29
20
11
19
25
41
9
21
26
43
34
2
15
34
10
30
74.101.al
37
4
36
18
6
22
35
31
3
33
5
39
72.350.ai 01
8
32
74.140.ax
1
38
16
7
39
27
16
35
8
74.136.ac 02
24
72.350.ai 02
36

Артикул

Название

Примечание

Количество

1

84230076

V-BELT,22.33mm W x 5300mm L

Cleaning System Drive

1шт.

2

84235115

SUPPORT

Idler Arm

1шт.

3

87695413

BOLT,M12 x 51.8mm, Cl 10.9

4шт.

4

47621676

SUPPORT

Fixed Idler

1шт.

5

140103

WASHER,26mm ID x 38mm OD x 1mm Thk

6шт.

6

370002

CIRCLIP,M25, External

1шт.

7

120048

CARRIAGE BOLT,M16 x 80mm, Cl 8.8

1шт.

8

86511326

WASHER,17mm ID x 30mm OD x 3mm Thk

4шт.

9

86588003

IDLER,51.6mm W x 228.6mm OD

Wheel

2шт.

10

392530

NUT,M16, Cl 10

1шт.

11

47373234

SHIM

73mm x 145mm x 1.27mm

3шт.

12

47508415

SUPPORT

Fixed Idler Pulley

1шт.

13

47597586

ANGLE

Fixed Idler Pulley

1шт.

14

86512498

FLANGE NUT,M16 x 2, Cl 10

1шт.

15

87343550

FLANGE BOLT,Hex, M12 x 25mm

3шт.

16

86512497

FLANGE NUT,M12 x 1.75, Cl 10

3шт.

17

87682391

CARRIAGE BOLT,M10 x 1.5 x 25mm, Cl 10.9

4шт.

18

86050279

FLANGE NUT,M10 x 1.5, Cl 10

4шт.

19

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

4шт.

20

86507066

FLANGE NUT,M8 x 1.25, Cl 10

2шт.

21

86511324

WASHER,13mm ID x 24mm OD x 2.5mm Thk

2шт.

22

432-1216

COTTER PIN,3/16" x 1"

2шт.

23

84230075

V-BELT,22.33mm W x 3510mm L

Elevator Jackshaft Drive

1шт.

24

47518408

PULLEY,82.5mm W x 203.5mm OD

Jackshaft Driver

1шт.

25

432-1624

COTTER PIN,1/4" x 1 1/2"

1шт.

26

86624172

WASHER,1.03" ID x 1.75" OD x 0.12" Thk

6шт.

27

87613201

WASHER,1.03" ID x 1.75" OD x 0.03" Thk

1.031" x .75" x 0.03"

3шт.

28

47667212

LEVER

Elevator Jackshaft Drive

1шт.

29

86625266

WASHER,17.5mm ID x 30mm OD x 4mm Thk

3шт.

30

47662498

IDLER,82.55mm W x 203.2mm OD

Pulley

1шт.

31

86981489

BOLT,Hex, M16 x 70mm, Cl 10.9

1шт.

32

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

1шт.

33

84233788

ROD

Belt Idler Tension

1шт.

34

9511052

WASHER,13.5mm ID x 44mm OD x 4mm Thk

4шт.

35

47483743

SPACER

Inner, Idler Spring

2шт.

36

47483752

SPACER

Outer, Idler Spring

2шт.

37

86560521

PIVOT,13mm ID x 50mm OD x 25.4mm Thk

2шт.

38

84375295

TENSION SPRING

Drive Belt

2шт.

39

9706685

NUT,M12 x 1.75, Cl 8

4шт.

40

47510501

ROD

Belt Idler Tension

1шт.

41

47621048

ARM

Idler

1шт.

42

120047

CARRIAGE BOLT,M16 x 70mm, Cl 8.8

1шт.

43

87016581

FLANGE NUT,M16 x 2, CI 10

1шт.

Выбрано товаров: 43
