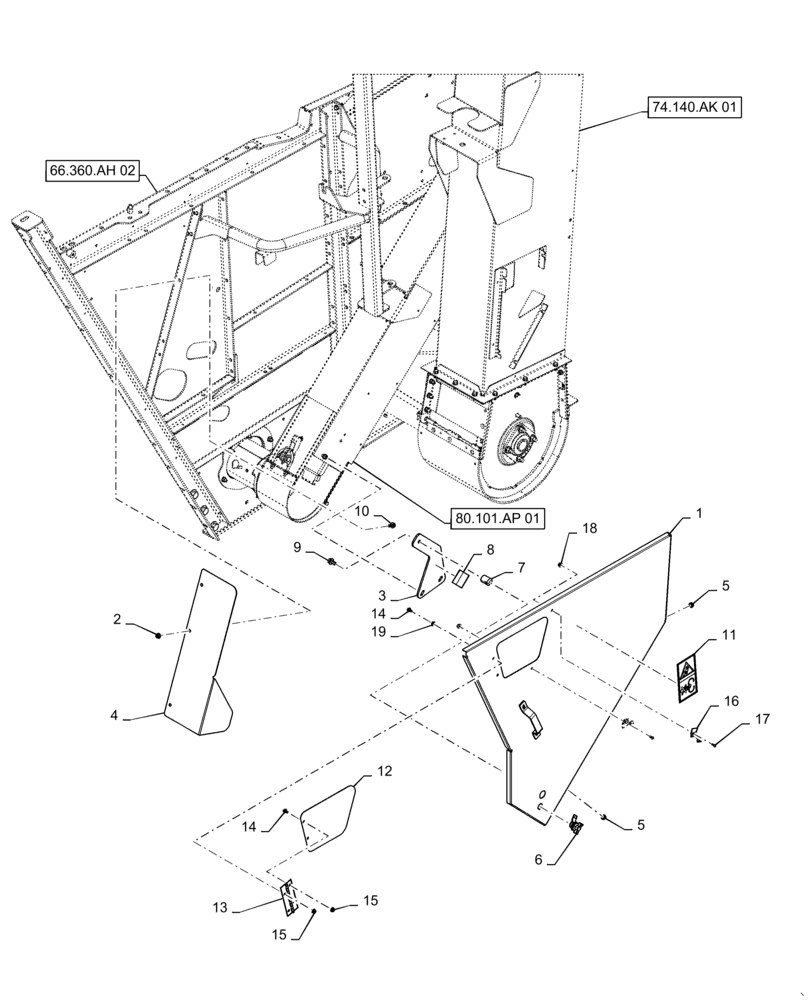

Запчасти Case IH 7140 (74.130.AJ[03]) - REAR SHIELD, RH (74) - CLEANING

1

47761310

SHIELD

Rear, RH, Incl 11

1шт.

2

86507066

FLANGE NUT,M8 x 1.25, Cl 10

2шт.

3

47519889

BRACKET

Tailings Support

1шт.

4

47757184

SHIELD

Fixed

1шт.

5

1321640C1

GROMMET

Feeder Adapter

3шт.

6

182925A1

LOCK

Shield Latch

1шт.

7

84393403

PIN

Shield

1шт.

8

187884C1

SEALING STRIP,50mm L

Foam

3шт.

9

87698835

FLANGE BOLT,M10 x 20mm, Full Thd, Cl 10.9

1шт.

10

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

2шт.

11

144374A1

DANGER DECAL

Shield

1шт.

12

84199195

DOOR

Separator, Rear LH

1шт.

13

397586A1

HINGE

Separator Door

1шт.

14

87698753

FLANGE BOLT,M6 x 12mm, Cl 10.9, Full Thd

4шт.

15

86050300

FLANGE NUT,M6 x 1.0, Cl 10

4шт.

16

167800C1

CLIP

Door Retainer

2шт.

17

86511920

SCREW,Phillips Drive, Pan HD, #10 - 24 x 1/2"

2шт.

18

523310

SERRATED NUT,Flng, #10 - 24, Gr 5

#10

2шт.

19

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.
