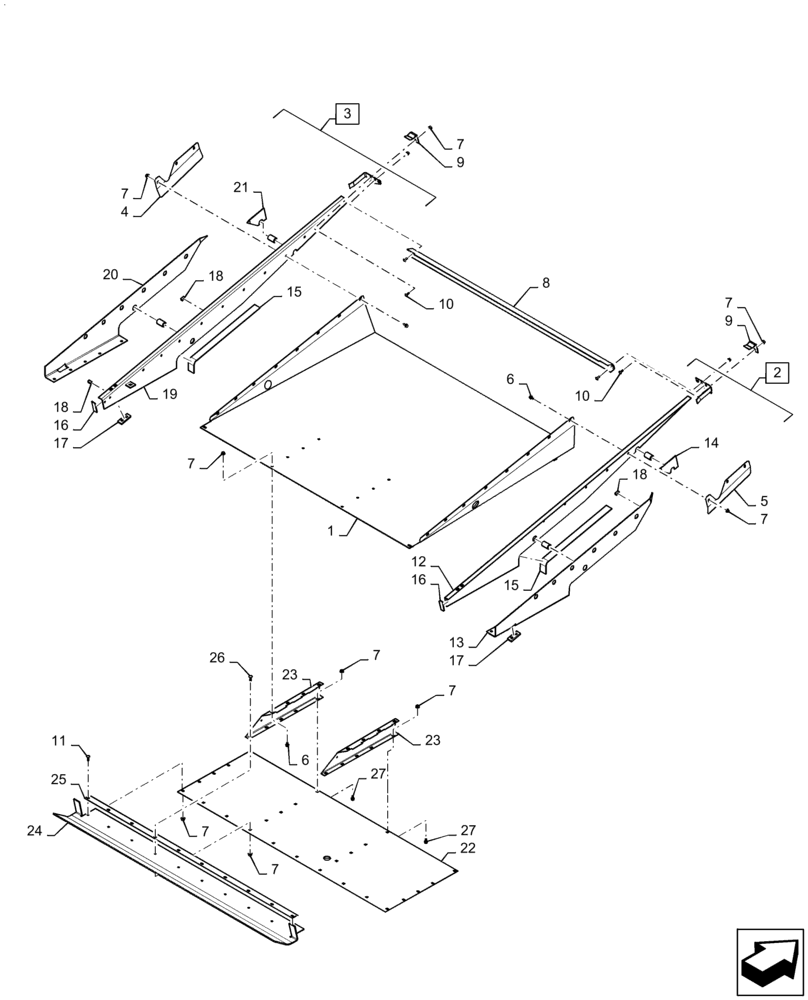

Запчасти Case IH 7140 (74.118.AK) - LOWER SIEVE SUPPORT (74) - CLEANING

1

47515962

PAN

Shoe, Clean Grain Return

1шт.

2

84169474

RAIL

Lower Sieve, RH, Incl 13 - 19

1шт.

3

84169462

RAIL

Lower Sieve, LH, Incl 16 - 22

1шт.

4

47516527

SHIELD

Forward Shoe Return Baffle, LH

1шт.

5

47516528

SHIELD

Forward Shoe Return Baffle, RH

1шт.

6

87681207

BOLT,M8 x 24.1mm, Cl 10.9

38шт.

7

86507066

FLANGE NUT,M8 x 1.25, Cl 10

64шт.

8

47770131

CHANNEL

Shoe Rail Front Cross

1шт.

9

87376647

CLIP

Front Shoe Retainer

2шт.

10

847-3820

SERRATED SCREW,M8 x 20mm, Cl 10.9

8шт.

11

87682384

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 10.9

2шт.

12

1979903C3

RAIL ASSY.

Shoe, RH

1шт.

13

1979905C3

SUPPORT

Shoe Rail, RH

1шт.

14

1979368C1

SUPPORT

Shoe Rail, Front, RH

1шт.

15

1979906C1

STRIP

Shoe Rail

2шт.

16

1979907C1

PLATE

Shoe Rail Plug

2шт.

17

1979087C3

BAR

Bolt Land

2шт.

18

284847A1

BAR

Bar, Locator

10шт.

19

1979902C3

RAIL ASSY.

Shoe, LH

1шт.

20

1979904C3

SUPPORT

Shoe Rail, LH

1шт.

21

1979367C1

SUPPORT

Shoe Rail, Front, LH

1шт.

22

87613461

SHEET ASSY.

Tailings Return

1шт.

23

87613403

SUPPORT ASSY.

Tailings Return Pan

2шт.

24

1979194C2

SEAL

Tailings Sheet

1шт.

25

87376640

STRAP

Seal

1шт.

26

87682383

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 10.9

8шт.

27

87020310

CARRIAGE BOLT,M8 x 1.25 x 20.8mm, Cl 10.9

8шт.
