Запчасти Case IH 7140 (74.114.AZ[02]) - VAR - 425455, 425456, 425457, 425458 - CROSS FLOW REMOTE CONTROL UPPER SIEVE (74) - CLEANING

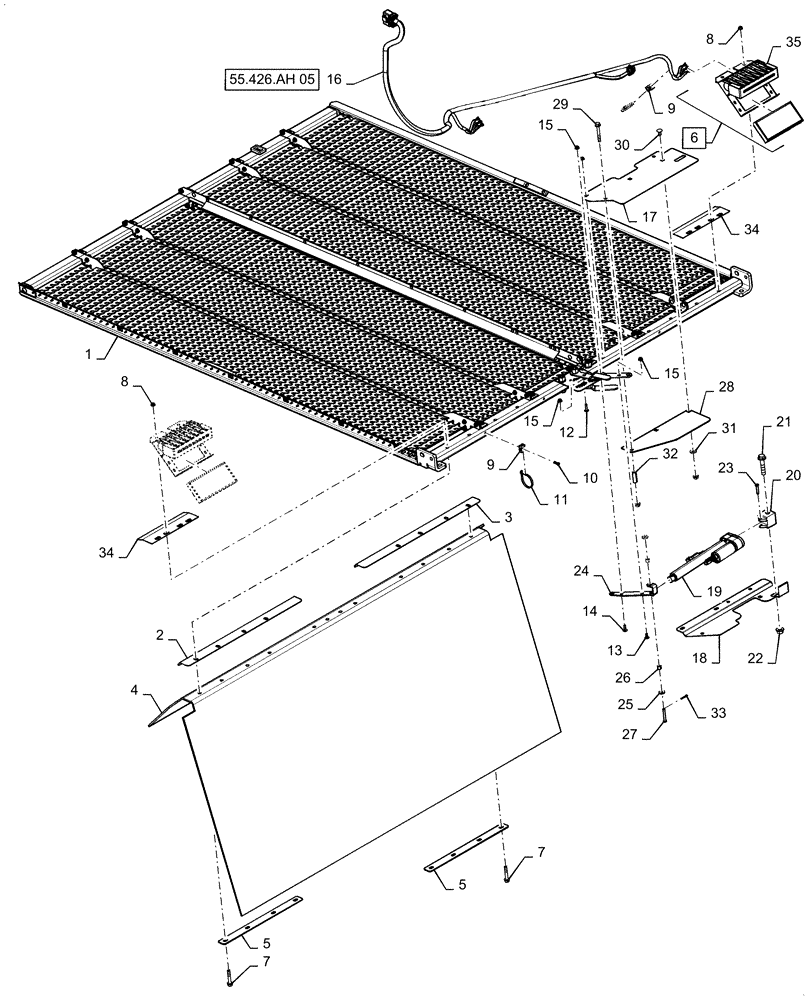

Схема запчастей Case IH 7140 - (74.114.AZ[02]) - VAR - 425455, 425456, 425457, 425458 - CROSS FLOW REMOTE CONTROL UPPER SIEVE (74) - CLEANING
35
30
7
3
15
26
4
13
25
5
6
16
32
15
18
31
15
19
21
5
7
2
8
10
34
9
24
22
27
1
11
8
9
17
12
20
29
14
34
33
28
23
55.426.ah 05

Артикул

Название

Примечание

Количество

1

47887579

SIEVE

Upper, 1 - 1/8" Closz, VAR. 425455

1шт.

1

47892013

SIEVE

Upper, 1 - 5/8" Corn, VAR. 425456

1шт.

1

47892031

SIEVE

Upper, 1 - 5/8" Closz, VAR. 425457

1шт.

1

47892046

SIEVE

Upper, 1 - 1/8" Peterson, VAR. 425458

1шт.

2

47711119

ANGLE

Chaffer Seal

1шт.

3

47711134

ANGLE

Chaffer Seal

1шт.

4

47805494

RUBBER SEAL

Upper Sieve

1шт.

5

47892170

STRAP

Sieve Seal

2шт.

6

245361C2

TRANSMITTER

Grain Scan Chaff Sensor Module, Incl 35

2шт.

7

87698763

FLANGE BOLT,Hex, M8 x 50mm, Cl 0.9

9шт.

8

87681210

FLANGE NUT,M8 x 1.25, Cl 10

12шт.

9

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

6шт.

10

445395

RIVET,Pop, 4.8mm OD x 18.1mm L

4шт.

11

86566989

CABLE TIE,208mm L

12шт.

12

374891

CARRIAGE BOLT,Rnd Head, M6 x 1 x 25mm, Cl 8.8

1шт.

13

86512439

CARRIAGE BOLT,M6 x 16mm, Cl 8.8

2шт.

14

9706703

CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 20mm, Cl 8.8, Full Thd

1шт.

15

87301498

FLANGE NUT,Hex, M6 x 1.0, Cl 10

4шт.

16

47750697

WIRE HARNESS

Grain Loss Pads and Upper Sieve Control

1шт.

17

47887536

SHIELD

Top, Actuator Mounting

1шт.

18

47487321

SHIELD

Bottom, Actuator Mounting

1шт.

19

87347281

ACTUATOR

Remote Adjust

1шт.

20

47487530

BLOCK

Sieve Actuator

1шт.

21

87301277

BOLT,M12 x 71.8mm, Cl 10.9

1шт.

22

86512497

FLANGE NUT,M12 x 1.75, Cl 10

1шт.

23

47479764

CLEVIS PIN,1/4" OD x 1.219" L

1/4"

1шт.

24

87705855

STRAP

Sieve Actuator

1шт.

25

86624138

WASHER,0.28" ID x 0.75" OD x 0.12" Thk

2шт.

26

87682401

SPACER,6.83mm ID x 10.29mm OD x 9mm L

2шт.

27

86624059

HEADED PIN,1/4" x 1 7/8"

1шт.

28

47682673

COVER

Sieve Actuator

1шт.

29

87670761

FLANGE BOLT,M8 x 68.1mm, Cl 10.9

1шт.

30

87020310

CARRIAGE BOLT,M8 x 1.25 x 20.8mm, Cl 10.9

2шт.

31

378243

WASHER,8.4mm ID x 21mm OD x 1.6mm Thk

3шт.

32

87698776

SPACER,8.48mm ID x 12.7mm OD x 36.5mm L

1шт.

33

432-812

COTTER PIN,3/4" OAL x 1/8" W

1шт.

34

47881645

SLAT

Solid, Sieve

2шт.

35

231000A1

SIEVE

Seed Comb

1шт.

Выбрано товаров: 38
