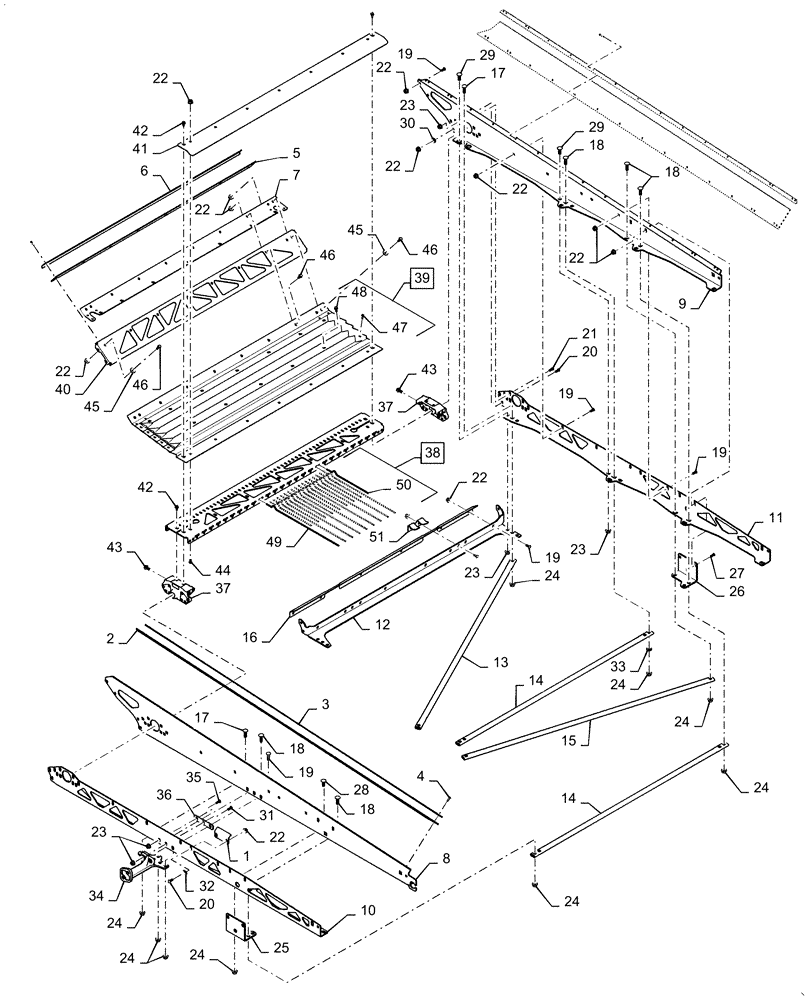

Запчасти Case IH 7140 (74.114.AZ[01]) - VAR - 425447 - CROSS FLOW UPPER SHOE FRAME (74) - CLEANING

1

47713839

CLAMP

Upper Sieve

2шт.

2

47845498

SEAL

Upper Shoe

2шт.

3

47905479

CLAMP

Chaffer Rail Seal

2шт.

4

47755684

RIVET

1/4" Protruding Head

36шт.

5

47592669

SEAL

Grain Pan Front

1шт.

6

47605331

CLAMP

Front Chaffer Seal

1шт.

7

445395

RIVET,Pop, 4.8mm OD x 18.1mm L

8шт.

8

47854974

ANGLE

LH, Upper Sieve Rail

1шт.

9

47854970

SUPPORT

RH, Upper Sieve Rail

1шт.

10

47854972

ANGLE

LH, Rail Backing

1шт.

11

47854968

ANGLE

RH, Rail Backing

1шт.

12

47854955

BRACKET

Upper Shoe

1шт.

13

47854960

TUBE

Upper Shoe Front

1шт.

14

47854963

TUBE

Upper Shoe Mid

2шт.

15

47854966

TUBE

Upper Shoe Rear

1шт.

16

47857504

DEFLECTOR

Sieve

1шт.

17

87695427

CARRIAGE BOLT,M12 x 35mm, Cl 10.9

3шт.

18

87698852

CARRIAGE BOLT,M12 x 40mm, Cl 10.9

11шт.

19

87682383

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 10.9

20шт.

20

87682384

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 10.9

8шт.

21

87682396

CARRIAGE BOLT,M10 x 1.5 x 50mm, Cl 10.9

16шт.

22

86507066

FLANGE NUT,M8 x 1.25, Cl 10

49шт.

23

86050279

FLANGE NUT,M10 x 1.5, Cl 10

26шт.

24

86512497

FLANGE NUT,M12 x 1.75, Cl 10

15шт.

25

47857506

ANGLE

LH, Rail Backing

1шт.

26

47867176

ANGLE

RH, Rail Backing

1шт.

27

47584207

PLOW BOLT,M8 x 25mm, Cl 8.8

4шт.

28

9503839

CARRIAGE BOLT,Short NK, M12 x 25, Cl8.8, Full Thd

1шт.

29

87682390

CARRIAGE BOLT,M10 x 1.5 x 20mm, Cl 10.9

7шт.

30

87015284

WASHER,8.8mm ID x 21.5mm OD x 2.5mm Thk

4шт.

31

87682393

CARRIAGE BOLT,M10 x 1.5 x 35mm, Cl 10.9

2шт.

32

84359103

NUT,Push On, M8

4шт.

33

86592713

WASHER,13mm ID x 30mm OD x 6mm Thk

2шт.

34

47861689

ARM

Cross Flow Drive

1шт.

35

87682391

CARRIAGE BOLT,M10 x 1.5 x 25mm, Cl 10.9

1шт.

36

47865961

PLATE

Reinforcement

1шт.

37

47854364

HUB

Front

2шт.

38

47856977

FINGER

Grain Pan, Incl 49, 50

1шт.

39

47847898

PAN

Grain, Incl 47, 48

1шт.

40

47854957

CHAFFER

Cross Support

1шт.

41

47858413

COVER

Sieve Finger

1шт.

42

87698837

FLANGE BOLT,M10 x 30mm, Full Thd, Cl 10.9

4шт.

43

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

8шт.

44

87682383

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 10.9

7шт.

45

87013865

WASHER,9mm ID x 28mm OD x 1.6mm Thk

4шт.

46

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

10шт.

47

445394

RIVET,Pop, 3/16" x 1/2" OAL

14шт.

48

87681207

BOLT,M8 x 24.1mm, Cl 10.9

12шт.

49

1312476C1

FINGER,Formed, 1 Prong, 495.5mm L

26шт.

50

175114C1

FINGER,Formed, 1 Prong, 264mm L

26шт.

51

47657111

CLAMP

Upper Sieve

2шт.
