Запчасти Case IH 7140 (72.420.AM[02]) - CAGE, ROTOR, SEPARATOR (72) - SEPARATION

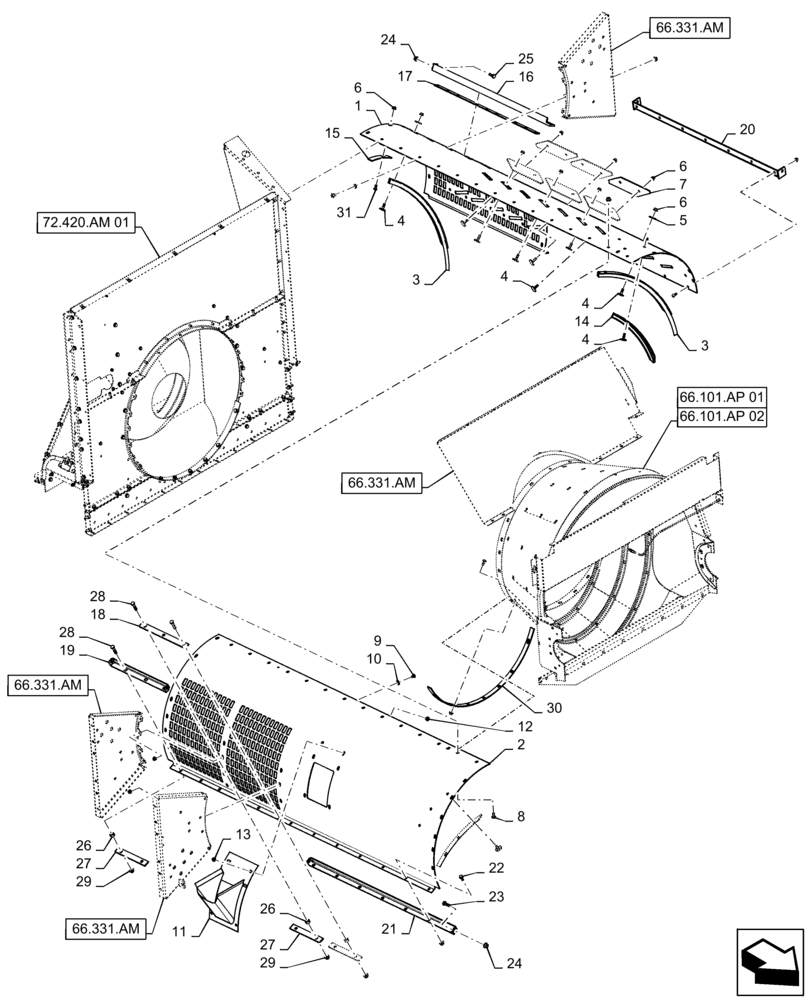

Схема запчастей Case IH 7140 - (72.420.AM[02]) - CAGE, ROTOR, SEPARATOR (72) - SEPARATION
26
16
12
4
23
19
5
66.331.am
20
24
25
6
26
2
6
1
17
66.101.ap 02
4
10
66.101.ap 01
6
3
4
18
8
7
30
9
13
29
27
11
22
27
14
28
66.331.am
15
24
31
4
28
66.331.am
3
66.331.am
29
72.420.am 01
21

Артикул

Название

Примечание

Количество

1

1318729C5

CAGE

Rotor, LH

1шт.

2

47553201

CAGE

Cage, Rotor, RH

1шт.

3

347917A1

VANE

Cage Transport

13шт.

4

87106338

BOLT

Tee, M10 x 30mm

46шт.

5

140219

WASHER,11mm ID x 40mm OD x 4mm Thk

12шт.

6

86050279

FLANGE NUT,M10 x 1.5, Cl 10

85шт.

7

1318581C1

PLATE

Vane Tie

6шт.

8

87487071

SERRATED SCREW,M10 x 1.5 x 25mm

25шт.

9

87487056

SERRATED SCREW,M10 x 1.5 x 20mm, Cl 10.9

20шт.

10

87698854

NUT,M10

12шт.

11

47563562

CHUTE

Tailings Delivery

1шт.

12

87682390

CARRIAGE BOLT,M10 x 1.5 x 20mm, Cl 10.9

6шт.

13

87547587

LOCK NUT,Hex, M10 x 1.5, Cl 10

6шт.

14

411518A2

VANE

Cage Extension, Transport

3шт.

15

186797C2

SUPPORT

Cage Filler Strip

1шт.

16

185386C1

SUPPORT

Cage Grate, LH

1шт.

17

183323C1

STRAP

Grate

1шт.

18

186785C2

REINFORCEMENT

Cage, RH

1шт.

19

182634C3

SUPPORT

Cage Grate Stiffener, RH

1шт.

20

47971670

STIFFENER

Rotor Cage, LH

1шт.

21

1324190C1

REINFORCEMENT

Cage Stiffener Support

1шт.

22

87487059

BOLT

M10 x 25mm

7шт.

23

805-12030

BOLT,Hex, M12 x 30mm, Cl 10.9

4шт.

24

86512497

FLANGE NUT,M12 x 1.75, Cl 10

7шт.

25

43260

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

3шт.

26

600179R1

SPACER,13.9mm ID x 21.34mm OD x 14.3mm L

6шт.

27

186784C2

BAR

Grate Hanger

3шт.

28

337476

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

6шт.

29

87681209

FLANGE NUT,Hex, M12 x 1.75, Cl 10

6шт.

30

186750C1

SUPPORT

Cage Filler Strip

1шт.

31

87487044

SCREW,Truss Slotted, M10 x 25mm, Cl 10.9

2шт.

Выбрано товаров: 31
