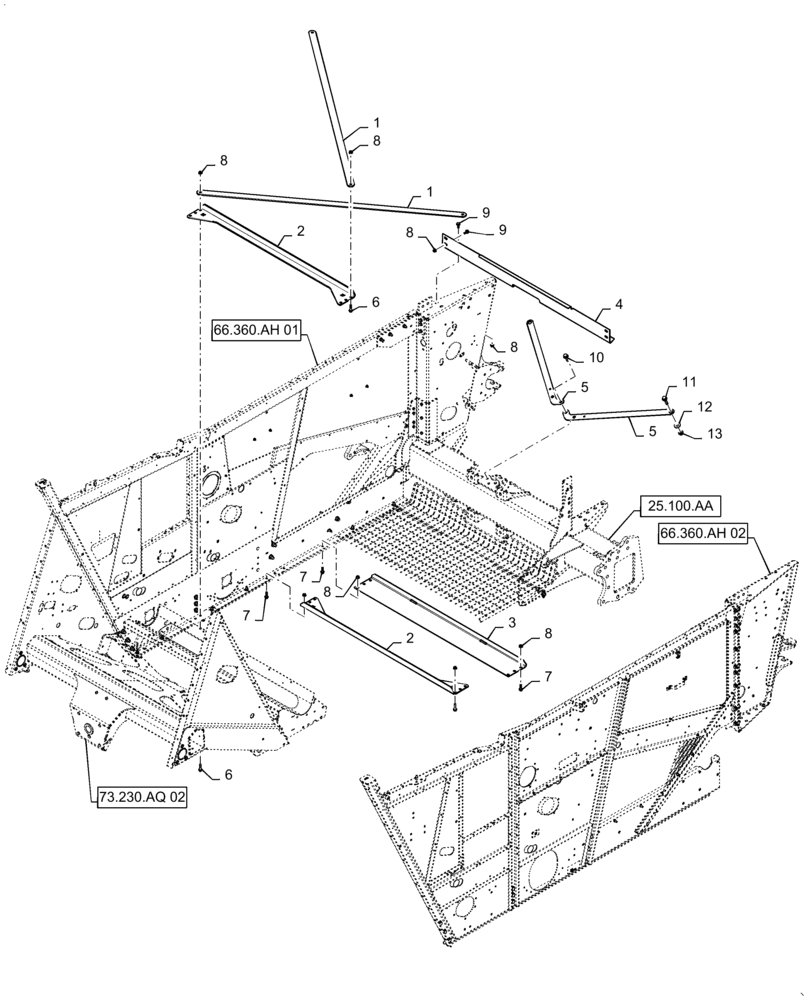

Запчасти Case IH 7140 (66.360.AH[05]) - SEPARATOR CROSS SUPPORT (66) - THRESHING

1

84541449

STIFFENER

Separator

2шт.

2

84541452

ANGLE

Main Sill Cross

2шт.

3

84197025

ANGLE

Sill Brace

1шт.

4

47451224

SUPPORT

Front Post

1шт.

5

87499095

SECURING STRAP

Axle to Feeder Pivot

2шт.

6

87670764

BOLT,M12 x 61.8mm, Cl 10.9

4шт.

7

87695413

BOLT,M12 x 51.8mm, Cl 10.9

12шт.

8

86512497

FLANGE NUT,M12 x 1.75, Cl 10

24шт.

9

87030508

BOLT,Hvy Hex, M12 x 30mm, Full Thd, Cl 10.9

8шт.

10

87698849

BOLT,M16 x 50mm, Cl 10.9

2шт.

11

87675533

BOLT,M16 x 75.4mm, Cl 10.9

2шт.

12

87317689

WASHER,18mm ID x 45mm OD x 4mm Thk

2шт.

13

86512498

FLANGE NUT,M16 x 2, Cl 10

2шт.
