Запчасти Case IH 7140 (66.331.AM) - CAGE, FRONT (66) - THRESHING

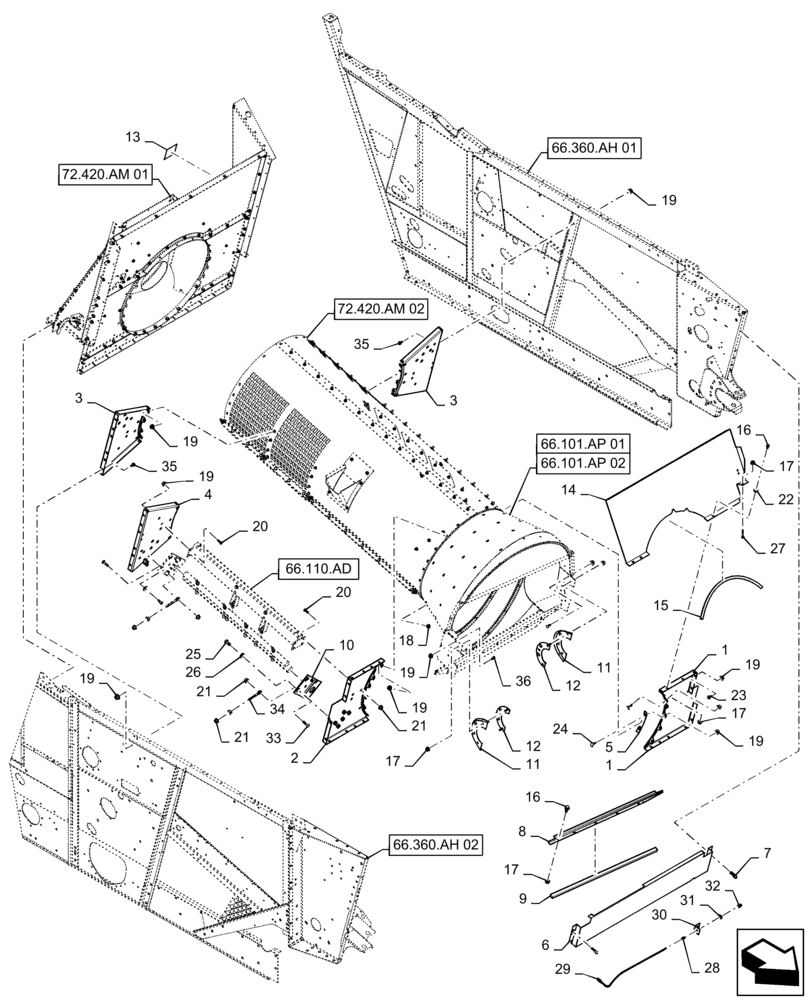

Схема запчастей Case IH 7140 - (66.331.AM) - CAGE, FRONT (66) - THRESHING
34
6
32
30
19
12
14
21
12
66.101.ap 02
36
19
35
31
27
66.101.ap 01
17
2
29
4
19
11
23
10
16
1
7
5
19
19
72.420.am 02
17
21
66.110.ad
9
19
72.420.am 01
28
20
21
17
33
35
66.360.ah 02
20
16
22
18
1
11
26
3
19
3
19
17
66.360.ah 01
15
8
24
25
13

Артикул

Название

Примечание

Количество

1

84180972

SUPPORT

Rotor Cage Front, LH

1шт.

2

47552363

SUPPORT

Rotor Cage Front, RH

1шт.

3

47552399

SUPPORT

Rotor Cage Middle, RH

2шт.

4

47552401

SUPPORT

Rotor Cage Middle, RH

1шт.

5

1318900C1

SUPPORT

Filler, Cage, LH Rear

1шт.

6

84473715

COVER

Rotor Front

1шт.

7

188029C1

LATCH

Main Drive Shield

2шт.

8

231848A1

RETAINER

Rotor Front

1шт.

9

231849A2

DOOR SEAL,995mm L

Rotor Cone

1шт.

10

1338041C2

SUPPORT

Concave Anchor

2шт.

11

84580668

SEAL

Feeder

2шт.

12

84580662

PLATE

Seal Retainer

2шт.

13

293460A1

DECAL

3 Speed Rotor Auxiliary Shift

1шт.

14

87685417

SHEET

Filler, Grain Tank to Cage Top

1шт.

15

1309111C1

SEAL,19mm W x 725mm L

1шт.

16

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

15шт.

17

86507066

FLANGE NUT,M8 x 1.25, Cl 10

22шт.

18

87487071

SERRATED SCREW,M10 x 1.5 x 25mm

6шт.

19

86050279

FLANGE NUT,M10 x 1.5, Cl 10

48шт.

20

805-12030

BOLT,Hex, M12 x 30mm, Cl 10.9

6шт.

21

86512497

FLANGE NUT,M12 x 1.75, Cl 10

12шт.

22

87033737

WASHER,9mm ID x 28mm OD x 3mm Thk

5шт.

23

87698835

FLANGE BOLT,M10 x 20mm, Full Thd, Cl 10.9

10шт.

24

87106338

BOLT

Tee, M10 x 30mm

2шт.

25

87036180

BOLT,Hex, M16 x 35mm, Cl 10.9, Full Thd

10шт.

26

86624156

WASHER,0.66" ID x 1.5" OD x 0.19" Thk

10шт.

27

87030775

BOLT,M8 x 38.1mm, Cl 10.9

1шт.

28

937781R92

HOSE,3.02mm ID x 686mm L

Grease Line

1шт.

29

219-418

ADAPTER,1/4"-1/8 NPTF

Lube

1шт.

30

87742027

BRACKET

Lube Hose

1шт.

31

76085536

NUT,1/8-27 NPSM

1шт.

32

80714

LUBE NIPPLE,1/4"-28 NPT x .54" lg

1шт.

33

87698853

CARRIAGE BOLT,Sht Sq Nk, M12 x 50mm, Cl 10.9, Full Thd

2шт.

34

84156112

EYEBOLT

Adjusting

2шт.

35

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

13шт.

36

87682392

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 10.9

8шт.

Выбрано товаров: 36
