Запчасти Case IH 7140 (66.331.AK[03]) - VAR - 722885 - ROTOR - EXTENDED WEAR SMALL GRAIN, CORN, SOYBEAN W/ 4 STRAIGHT SEPARATOR BARS (66) - THRESHING

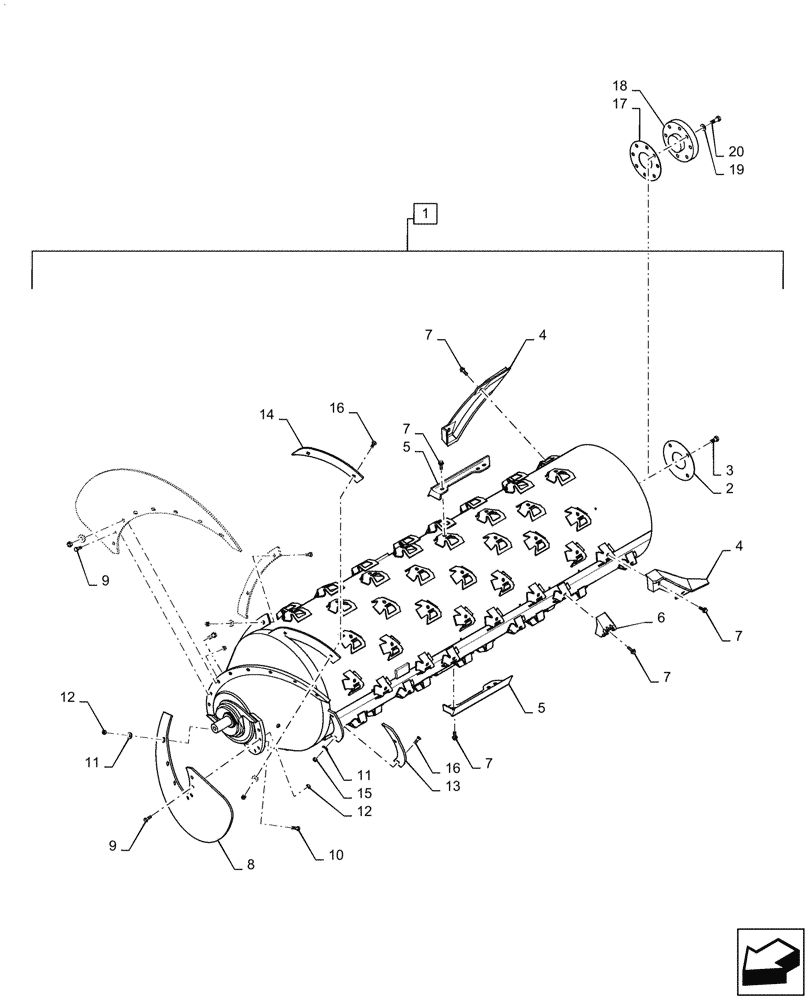

Схема запчастей Case IH 7140 - (66.331.AK[03]) - VAR - 722885 - ROTOR - EXTENDED WEAR SMALL GRAIN, CORN, SOYBEAN W/ 4 STRAIGHT SEPARATOR BARS (66) - THRESHING
19
7
6
9
13
16
14
5
11
17
5
18
9
16
7
20
7
2
4
10
15
12
4
12
11
7
7
1
8
3

Артикул

Название

Примечание

Количество

1

87636602

ROTOR ASSY.

Complete, Incl 2 - 16

1шт.

2

NS

NOT SERVICED

Cover Plate, Incl In 1

1шт.

3

86508583

BOLT,Hex, M16 x 35mm, Cl 8.8, Full Thd

4шт.

4

86992048

BAR

RFC, Helical Kicker, Carbide Iron

2шт.

5

86992047

BAR

Straight Separator Bar, Carbide Iron

4шт.

6

278821A3

RASP BAR

W/O Spike, Extended Wear

66шт.

7

86981487

BOLT,Flange, M12 x 35mm, Full, Cl 10.9 DOR

78шт.

8

410668A3

IMPELLER

Flighting, Rotor Inlet

2шт.

9

326-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

4шт.

10

326-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

12шт.

11

396-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

20шт.

12

199528A1

NUT

1/2"-13, Top Lock

16шт.

13

84162517

EXTENSION

Plate, Inlet Flighting

2шт.

14

84162516

EXTENSION

Plate, Intermediate

2шт.

15

412672

NUT,Hex, M12 x 1.75, Cl 10

8шт.

16

87314103

PLOW BOLT,M12 x 1.75 x 40mm, Cl 10.9

M12 x 40mm, Full Thread, 10.9

8шт.

17

87619363

PLATE

Rotor Load Ring, 8 Bolt

1шт.

18

87619364

COUPLING

HD Rotor Drive 23 Tooth

1шт.

19

86639326

WASHER,17.3mm ID x 34.5mm OD x 5mm Thk

16шт.

20

87550181

BOLT,Hex, M16 x 95mm, Cl 10.9

M16 x 95mm

8шт.

Выбрано товаров: 20
