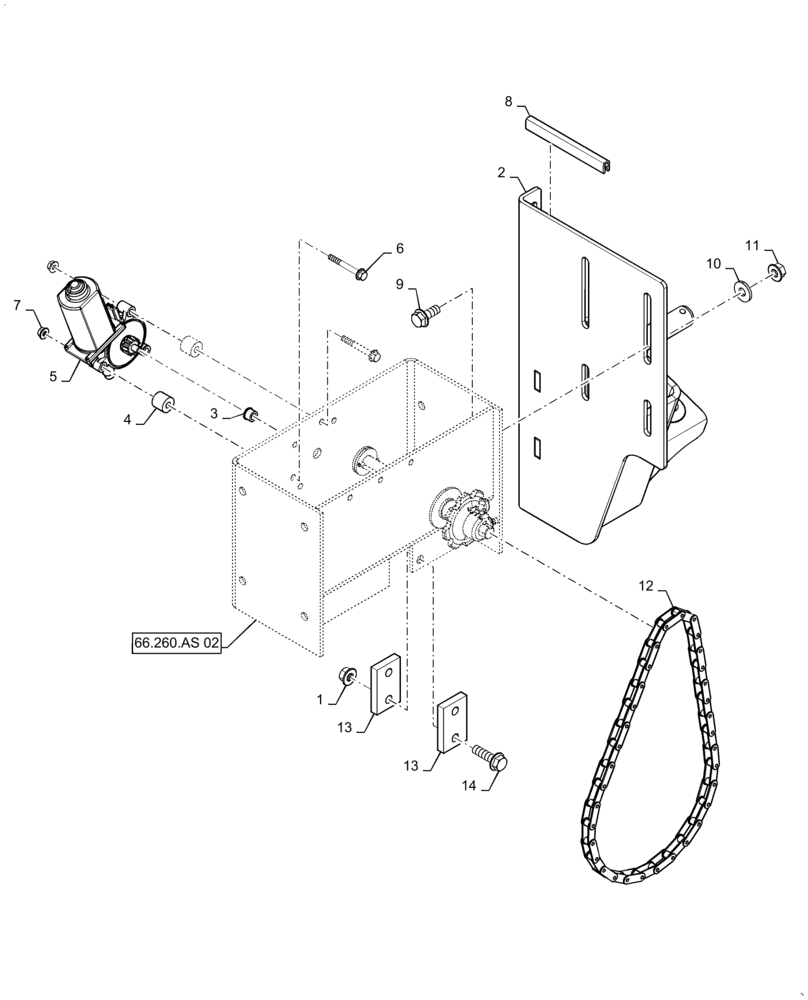

Запчасти Case IH 7140 (66.260.AS[01]) - ROTOR, ADJUSTER, SPEED LIMITER (66) - THRESHING

1

87547587

LOCK NUT,Hex, M10 x 1.5, Cl 10

2шт.

2

47832812

SUPPORT

Jackshaft Idler

1шт.

3

55825C1

BUSHING,8.03mm ID x 12.74mm OD x 9.65mm L

Flange

1шт.

4

113485A1

SPACER

Motor, 17mm

2шт.

5

87693674

ELECTRIC MOTOR

Fan & Rotor Speed

1шт.

6

87670760

FLANGE BOLT,M6 x 56.6mm, Cl 10.9

2шт.

7

87301498

FLANGE NUT,Hex, M6 x 1.0, Cl 10

2шт.

8

1545944C1

SEAL

Edge

1шт.

9

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

4шт.

10

495-81135

WASHER,10.31mm ID x 25.4mm OD x 3.4mm Thk

4шт.

11

86050279

FLANGE NUT,M10 x 1.5, Cl 10

4шт.

12

617107R91

CHAIN,34 Links x 25.4mm = 863.6mm

Rotor Drive Variator

1шт.

13

1302173C1

PAD

Motor Bracket

2шт.

14

87698838

FLANGE BOLT,M10 x 35mm, Full Thd, Cl 10.9

2шт.
