Запчасти Case IH 7140 (60.150.AY[01]) - VAR - 425081, 425082, 425083 - CLUTCH FEEDER, STANDARD (60) - PRODUCT FEEDING

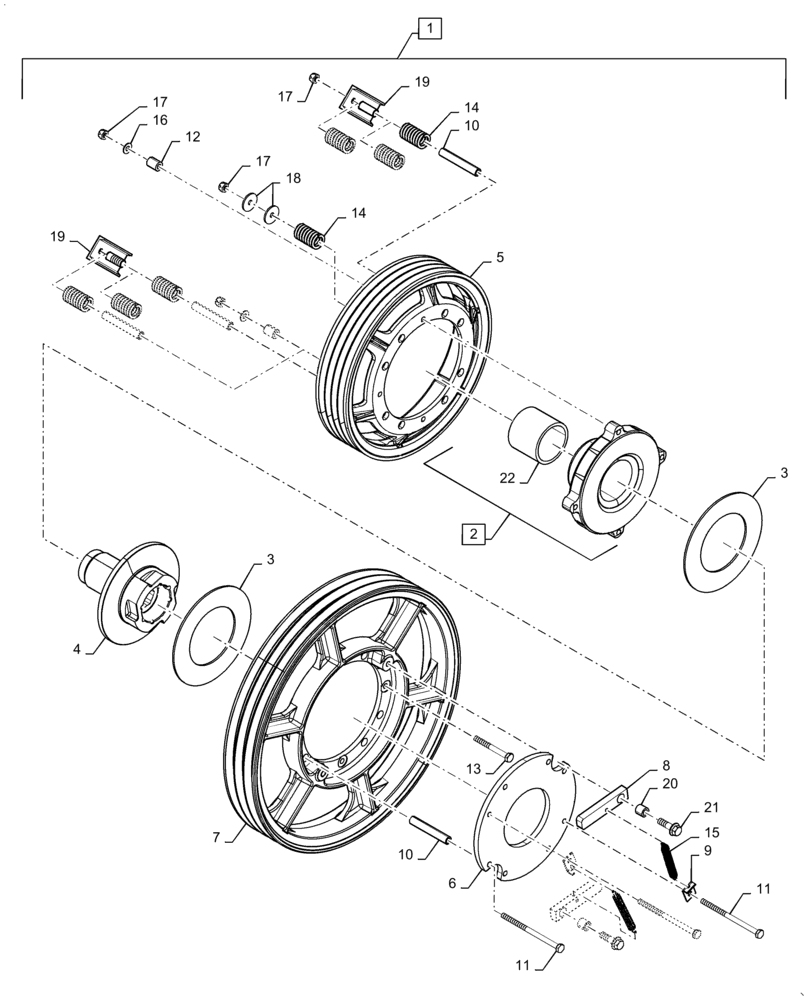

Схема запчастей Case IH 7140 - (60.150.AY[01]) - VAR - 425081, 425082, 425083 - CLUTCH FEEDER, STANDARD (60) - PRODUCT FEEDING
15
3
19
4
2
14
17
18
1
9
12
11
8
3
20
16
6
14
17
5
11
13
21
10
17
10
22
19
7

Артикул

Название

Примечание

Количество

1

47446685

CLUTCH

Feeder, Non-Rock Trap, Incl 2 - 22

1шт.

2

87543658

HOUSING ASSY.

Friction Clutch Hub, Outer, Incl 22

1шт.

3

84151259

LINING

Friction Disk

2шт.

4

84124122

HUB

Clutch, Inner

1шт.

5

47404481

PULLEY

Jackshaft Drive

1шт.

6

87726043

PLATE ASSY.

Reverser Clutch, Outer

1шт.

7

87729260

PULLEY,573mm OD

Clutch, Outer

1шт.

8

87730813

BAR

Ratchet, Reverser Clutch

2шт.

9

86988966

MOUNTING PLATE

Angle, Spring

2шт.

10

87386411

SPACER

Clutch

8шт.

11

87665088

BOLT

M10 x 155mm

8шт.

12

87374324

SPACER,11.1mm ID x 19.05mm OD x 25mm L

Drive Lug

4шт.

13

86508620

BOLT,Hex, M10 x 1.5 x 90mm, Cl 10.9

4шт.

14

84146255

SPRING

Clutch

10шт.

15

86989592

SPRING

Accelerator

2шт.

16

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

17

86512554

NUT,M10 x 1.5, Cl 10

12шт.

18

495-81143

WASHER,13/32" x 1 1/2" x .120"

8шт.

19

1315316C1

SUPPORT

Slip Clutch Spring Retainer

2шт.

20

87752993

DRIVE BUSHING

Reverser Ratchet

2шт.

21

87695413

BOLT,M12 x 51.8mm, Cl 10.9

2шт.

22

87543680

BUSHING

Outer Hub

1шт.

Выбрано товаров: 22
