Запчасти Case IH 7140 (60.150.AD[02]) - VAR - 425086, 425087, 425088, 425125, 425126 - FEEDER CONVEYOR, STONE TRAP (60) - PRODUCT FEEDING

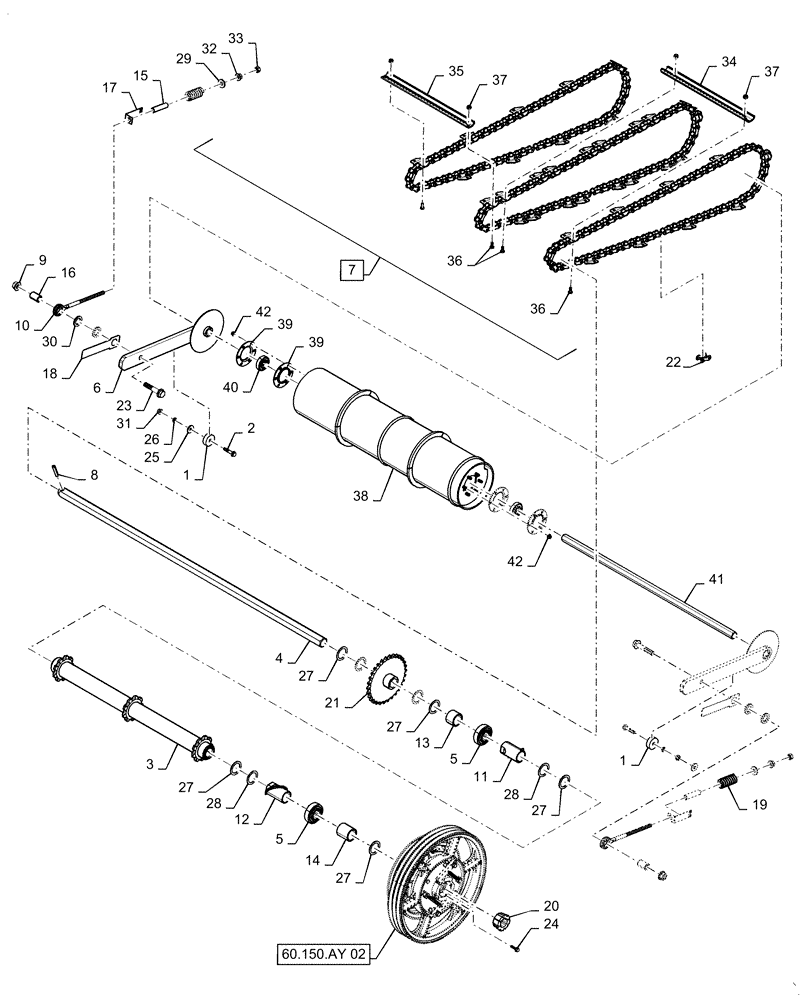

Схема запчастей Case IH 7140 - (60.150.AD[02]) - VAR - 425086, 425087, 425088, 425125, 425126 - FEEDER CONVEYOR, STONE TRAP (60) - PRODUCT FEEDING
60.150.ay 02
39
27
5
6
20
35
42
23
37
10
2
31
1
36
11
28
9
42
36
30
4
15
18
7
41
17
27
12
21
8
32
25
24
33
40
38
39
29
27
22
19
5
28
37
1
27
27
14
34
13
3
16
26

Артикул

Название

Примечание

Количество

1

87389815

SPACER,13.5mm ID x 57.2mm OD x 20mm L

Drum Stop

1шт.

2

84148135

BOLT

Flange

2шт.

3

84122242

SPROCKET ASSY.,9T

Conveyor

1шт.

4

84174008

SHAFT

Conveyor

1шт.

5

87620467

BALL BEARING,44.48mm Hex x 100mm OD x 42.86mm W

2шт.

6

47574600

ARM

Drum

2шт.

7

47596676

CONVEYOR

Feeder, Serrated, Incl 34 - 37

1шт.

8

87016664

PIN,12mm OD x 70mm L, Coiled

Spring

1шт.

9

86512499

FLANGE NUT,M20 x 2.5, Cl 10

2шт.

10

84158123

EYEBOLT

Drum Arm

2шт.

11

87751611

SPACER

Sprocket Cleanout, LH

1шт.

12

87751613

SPACER

Sprocket Cleanout, RH

1шт.

13

87740715

SPACER

Sprocket

1шт.

14

87740697

SPACER,52.39mm ID x 63.5mm OD x 68.8mm L

Clutch Hub

1шт.

15

84147444

SPACER,17.4mm ID x 22.23mm OD x 91mm L

Spring Tensioner

2шт.

16

87688473

SPACER,21mm ID x 31.75mm OD x 47.7mm L

Bushing, Arm

2шт.

17

84128484

BRACKET

Indicator

2шт.

18

84359856

STRAP

Feeder Side Shield

2шт.

19

84272052

SPRING

Compression, Tensioning

2шт.

20

87728796

HUB

Locking Hub, Shaft

1шт.

21

87674273

SPROCKET ASSY.

Beater Drive, 30T

1шт.

22

84257096

LINK,41.4mm Pitch, Threaded Pin

Chain Connecting

3шт.

23

84163827

BOLT,M20 x 118.9mm OAL, Cl 10.9

2шт.

24

9804263

BOLT,M10 x 49.2mm, Cl 8.8

4шт.

25

495-81162

WASHER,17/32" x 1 1/2" x .179"

2шт.

26

492-11050

LOCK WASHER,1/2"

2шт.

27

87690483

WASHER,2.03" ID x 2.75" OD x 0.12" Thk

1шт.

28

87690482

WASHER,2.03" ID x 2.75" OD x 0.07" Thk

1шт.

29

325594

WASHER,M17 x 40mm OD x 5mm Thk

6шт.

30

495-82234

WASHER,32.54mm ID x 50.8mm OD x 6.1mm Thk

4шт.

31

86512497

FLANGE NUT,M12 x 1.75, Cl 10

2шт.

32

86512498

FLANGE NUT,M16 x 2, Cl 10

6шт.

33

392530

NUT,M16, Cl 10

6шт.

34

84148074

SLAT

Conveyor, Serrated, LH

9шт.

35

84148076

SLAT

Conveyor, Serrated, RH

9шт.

36

9846677

BOLT,M10 x 1.5 x 25mm, Cl 10.9

72шт.

37

84207195

NUT,M10 x 1.5

72шт.

38

84299758

DRUM,241.3mm OD x 1091.6mm L

Conveyor

1шт.

39

87667404

FLANGED BEARING

6 Bolt

4шт.

40

84324246

SPHERICAL BEARING,31.75mm ID x 72mm OD x 25mm Thk

2шт.

41

47940016

SHAFT

Feeder Drum

1шт.

42

86050279

FLANGE NUT,M10 x 1.5, Cl 10

12шт.

Выбрано товаров: 42
