Запчасти Case IH 7140 (60.120.AI[05]) - VAR - 425082 - DRIVE, HEADER, NON ROCK TRAP, TWO SPEED (60) - PRODUCT FEEDING

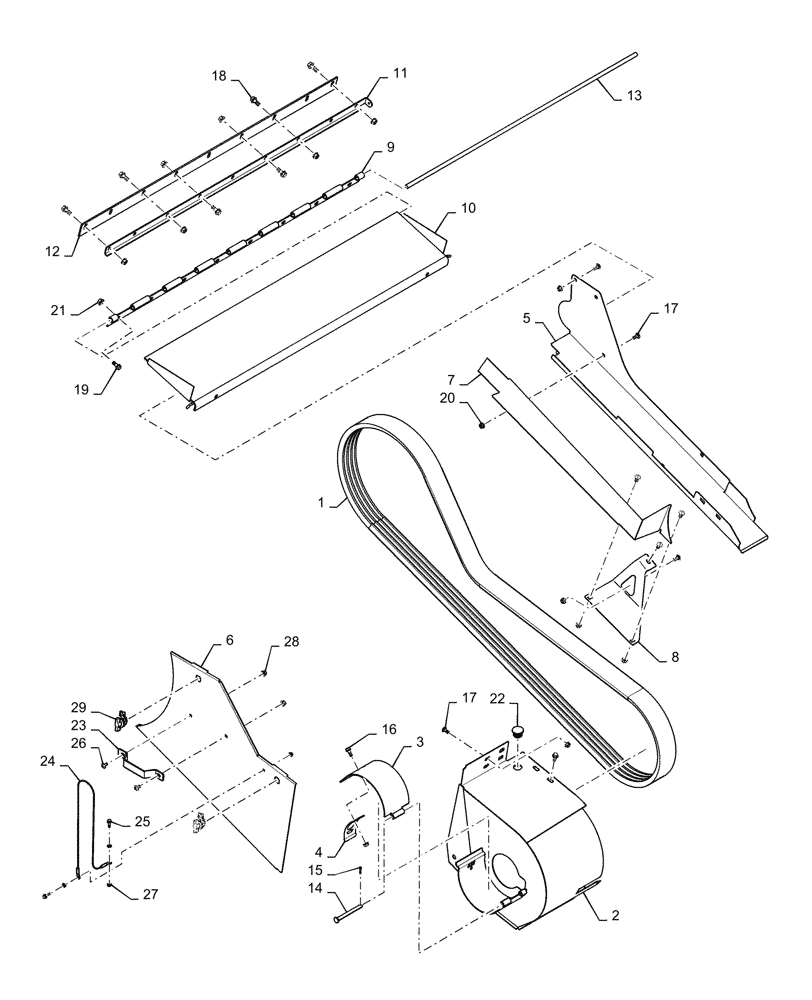

Схема запчастей Case IH 7140 - (60.120.AI[05]) - VAR - 425082 - DRIVE, HEADER, NON ROCK TRAP, TWO SPEED (60) - PRODUCT FEEDING
15
17
10
18
5
21
29
24
7
23
22
27
19
1
16
12
17
3
25
2
28
26
8
6
20
11
4
13
9
14

Артикул

Название

Примечание

Количество

1

47616842

V-BELT,15.24mm W x 4000mm L

Header Drive W/O Rock Trap

1шт.

2

84563062

SHIELD

Header Drive

1шт.

3

87753756

SHIELD

PTO Cover

1шт.

4

86638316

LATCH

PTO Cover

1шт.

5

84511574

SHIELD

Feeder Drive

1шт.

6

84511578

COVER

Access, Feeder Drive

1шт.

7

84374745

SHIELD

Drive Belt

1шт.

8

84355817

BRACKET

Header Drive

1шт.

9

193611C2

HINGE

Feed Plate, Years: -23-SEP-14

1шт.

9

47473789

HINGE

Feed Plate, Start Year: 23-SEP-14

1шт.

10

87602131

DOOR

Feeder Access

1шт.

11

87720413

SUPPORT

Top Seal Support

1шт.

12

634248R2

SEAL,55mm W x 1175.96mm L

Feeder

1шт.

13

87666924

ROD

Hinge

1шт.

14

86605625

CLEVIS PIN,M10 x 110

1шт.

15

130003

COTTER PIN,3mm OD x 30mm OAL

1шт.

16

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

4шт.

17

87682383

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 10.9

11шт.

18

905-10025

BOLT,Hex Flg, M10 x 25mm

9шт.

19

274249

BOLT,Hex, M10 x 20mm

8шт.

20

86507066

FLANGE NUT,M8 x 1.25, Cl 10

13шт.

21

43435

FLANGE NUT,Hex, M10 x 1.5

17шт.

22

87690471

PLUG

Dome, 2 In.

1шт.

23

87686906

LATCH

Cover Handle

1шт.

24

132657A2

CABLE

Panel Retention

1шт.

25

87675531

FLANGE BOLT,M6 x 26.6mm, Cl 10.9

2шт.

26

847-3816

SERRATED SCREW,Sl Truss, M8 x 16mm, Cl 10.9

2шт.

27

86050300

FLANGE NUT,M6 x 1.0, Cl 10

4шт.

28

86507066

FLANGE NUT,M8 x 1.25, Cl 10

2шт.

29

135476A1

LOCK

Latch, Shield, Used On Side Shield

2шт.

Выбрано товаров: 30
