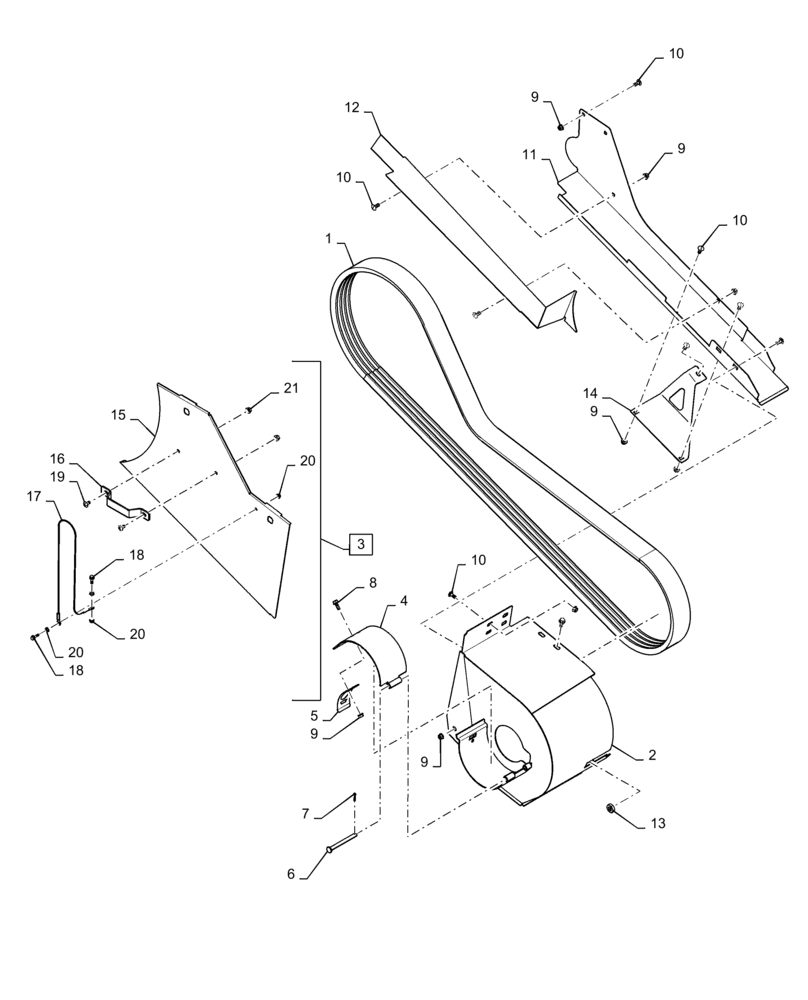

Запчасти Case IH 7140 (60.120.AI[01]) - VAR - 425086, 425088, 425125 - DRIVE, HEADER, ROCK TRAP, SINGLE SPEED (60) - PRODUCT FEEDING

1

47455617

V-BELT,15.24mm W x 3519mm L

Header Drive W/ Rock Trap, Effective Length 3519mm, 15.24mm Wide

1шт.

2

84378114

SHIELD

PTO Cover

1шт.

3

87720931

COVER ASSY

Feeder Access, Incl 15 - 21

1шт.

4

87753756

SHIELD

PTO Shaft Cover

1шт.

5

86638316

LATCH

PTO Cover

1шт.

6

86605625

CLEVIS PIN,M10 x 110

1шт.

7

130003

COTTER PIN,3mm OD x 30mm OAL

1шт.

8

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

4шт.

9

86507066

FLANGE NUT,M8 x 1.25, Cl 10

12шт.

10

87682383

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 10.9

10шт.

11

84378104

SHIELD

Belt Guide

1шт.

12

87720948

COVER ASSY

Belt Guide

1шт.

13

10717511

THIN NUT,Thin, M16 x 2, Cl 04

1шт.

14

84154101

BRACKET

Belt Guide Support

1шт.

15

87754566

COVER ASSY

Feeder Access

1шт.

16

87686906

LATCH

Cover Handle

1шт.

17

132657A2

CABLE

Panel Retention

1шт.

18

87675531

FLANGE BOLT,M6 x 26.6mm, Cl 10.9

2шт.

19

847-3816

SERRATED SCREW,Sl Truss, M8 x 16mm, Cl 10.9

2шт.

20

86050300

FLANGE NUT,M6 x 1.0, Cl 10

4шт.

21

86507066

FLANGE NUT,M8 x 1.25, Cl 10

2шт.
