Запчасти Case IH 7140 (55.510.AF[08]) - WIRE HARNESS, CAB MAIN, CONTINUED (55) - ELECTRICAL SYSTEMS

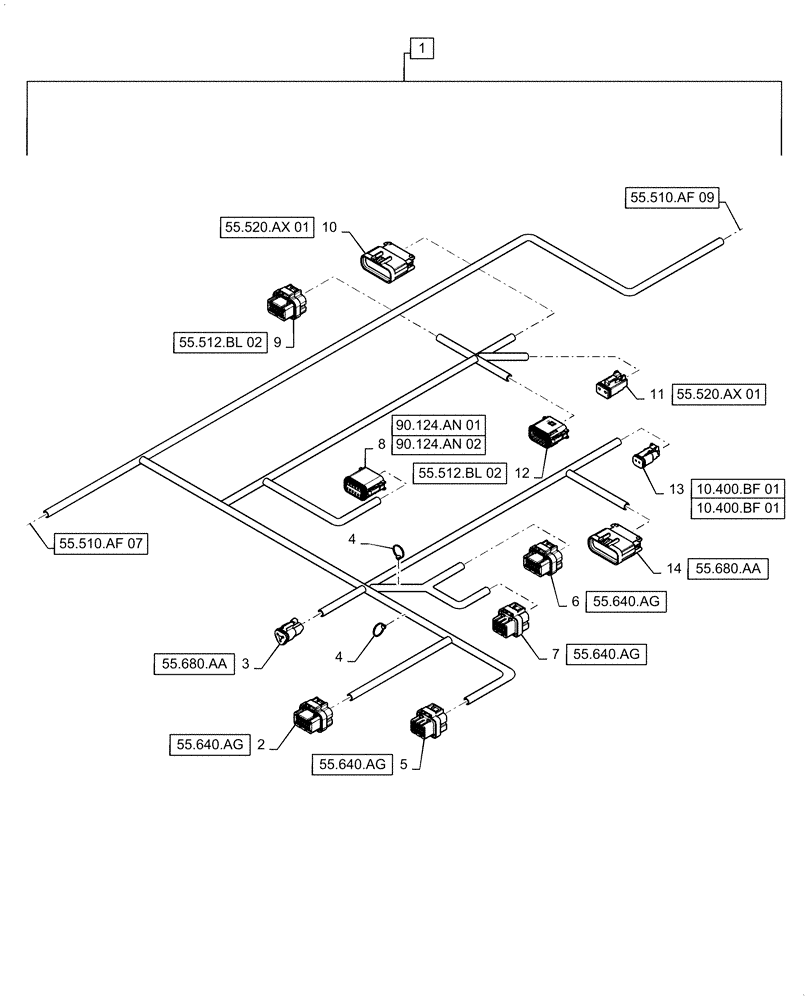

Схема запчастей Case IH 7140 - (55.510.AF[08]) - WIRE HARNESS, CAB MAIN, CONTINUED (55) - ELECTRICAL SYSTEMS
55.680.aa
9
8
7
13
2
5
4
1
6
14
3
10
4
11
12
55.510.af 09
55.512.bl 02
55.512.bl 02
55.510.af 07
90.124.an 02
90.124.an 01
55.520.ax 01
55.520.ax 01
10.400.bf 01
10.400.bf 01
55.640.ag
55.640.ag
55.640.ag
55.640.ag
55.680.aa

Артикул

Название

Примечание

Количество

1

47881617

WIRE HARNESS

Cab Main, Incl 2 - 14

1шт.

2

82028495

MULTIPOLE CONNECTOR,Female, 34 Pole

UCM CN4B, X-001C4B

1шт.

2

82017048

CABLE TERMINAL

UCM CN4B, X-001C4B

21шт.

2

87410950

ELEC. TERMINAL PIN,Female

UCM CN4B, X-001C4B

2шт.

3

84074635

CONTACT HOUSING,Female, 3 Pole

Combine Angle Sensor, X-102

1шт.

3

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Combine Angle Sensor, X-102

3шт.

3

84074639

LOCKING TAB,Wedge Lock

Lock, Combine Angle Sensor, X-102

1шт.

4

84332778

STRAP,148mm L x 16mm W

2шт.

5

82028493

MULTIPOLE CONNECTOR,Female, 26 Pole

UCM CN4A, X-001C4A

1шт.

5

82017048

CABLE TERMINAL

UCM CN4A, X-001C4A

6шт.

5

87410950

ELEC. TERMINAL PIN,Female

UCM CN4A, X-001C4A

6шт.

6

82028493

MULTIPOLE CONNECTOR,Female, 26 Pole

UCM2 CN4A, X-002C4A

1шт.

6

87410950

ELEC. TERMINAL PIN,Female

UCM2 CN4A, X-002C4A

2шт.

6

82017048

CABLE TERMINAL

UCM2 CN4A, X-002C4A

4шт.

7

82028495

MULTIPOLE CONNECTOR,Female, 34 Pole

UCM2 CN4B, X-002C4B

1шт.

7

82017048

CABLE TERMINAL

UCM2 CN4B, X-002C4B

11шт.

7

87410950

ELEC. TERMINAL PIN,Female

UCM2 CN4B, X-002C4B

3шт.

8

84146309

ELEC CONNECTOR

Air Seat, X-1012

1шт.

8

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Air Seat, X-1012

2шт.

8

87695651

LOCKING TAB,Wedge Lock

Air Seat, X-1012

1шт.

9

87410946

MULTIPOLE CONNECTOR,Female, 34 Cavities

RHM (ACM), X-004

1шт.

9

82017048

CABLE TERMINAL

RHM (ACM), X-004

5шт.

9

87410950

ELEC. TERMINAL PIN,Female

RHM (ACM), X-004

1шт.

10

87696550

ELEC CONNECTOR

Display Adapter Harness, X-1013A

1шт.

10

87697670

ELEC. TERMINAL PIN

Display Adapter Harness, X-1013A

5шт.

10

47438783

TERMINAL

Display Adapter Harness, X-1013A

1шт.

10

87688853

WIRE CONNECTOR

Lock, Display Adapter Harness, X-1013A

1шт.

11

87711966

PLUG

Elec Connector, Display Adapter Harness, X-1013B

1шт.

11

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Display Adapter Harness, X-1013B

2шт.

11

87712180

ELEC CONNECTOR

Lock, Display Adapter Harness, X-1013B

1шт.

12

87708149

ELEC CONNECTOR

RH Console, X-1006

1шт.

12

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

RH Console, X-1006

3шт.

12

87695651

LOCKING TAB,Wedge Lock

RH Console, X-1006

1шт.

13

87695582

ELEC CONNECTOR,Female, 2 Pole

Cooler Box, X-609

1шт.

13

84074638

LOCKING TAB,Locking Wedge, Green

Cooler Box, X-609

1шт.

14

87696550

ELEC CONNECTOR

Telematics Connector, X-1051

1шт.

14

87697670

ELEC. TERMINAL PIN

Telematics Connector, X-1051

4шт.

14

87688853

WIRE CONNECTOR

Lock, Telematics Connector, X-1051

1шт.

Выбрано товаров: 38
