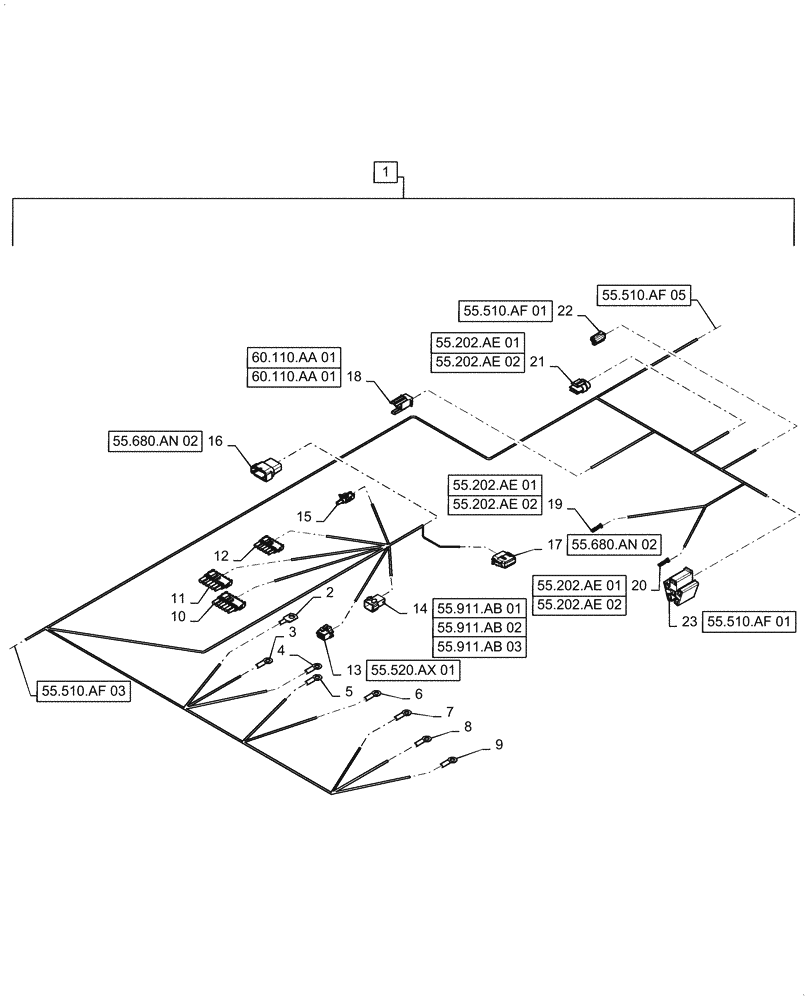

Запчасти Case IH 7140 (55.510.AF[04]) - WIRE HARNESS, CAB MAIN, CONTINUED (55) - ELECTRICAL SYSTEMS

1

47881617

WIRE HARNESS

Cab Main, Incl 2 - 23

1шт.

2

84401295

TERMINAL

Eyelet, Unswitched B+, X-551A

1шт.

3

84398828

TERMINAL,3/8" Ring, SAE 8

Unswitched B+, X-551C

1шт.

4

84398828

TERMINAL,3/8" Ring, SAE 8

Unswitched B+, X-551B

1шт.

5

84398828

TERMINAL,3/8" Ring, SAE 8

Switched B+, X-552A

1шт.

6

84398828

TERMINAL,3/8" Ring, SAE 8

Switched B+, X-552B

1шт.

7

84399574

TERMINAL,5/16" Ring, SAE 10 - 12

Eyelet, Chassis Ground - Control Module, X-571C

1шт.

8

84399575

TERMINAL,5/16" Ring, SAE 8

Chassis Ground, X-571A

1шт.

9

84399575

TERMINAL,5/16" Ring, SAE 8

Chassis Ground, X-571B

1шт.

10

87039236

ELEC CONNECTOR

UCM2 Power Diode, X-773

1шт.

10

87686742

PLUG

UCM2 Power Diode, X-773

1шт.

10

87022597

MODULE

UCM2 Power Diode, X-773

1шт.

10

87692856

CABLE TERMINAL

UCM2 Power Diode, X-773

5шт.

10

87418312

SEAL

UCM2 Power Diode, X-773

5шт.

11

87039236

ELEC CONNECTOR

Diode Module, X-772

1шт.

11

87022597

MODULE

Diode Module, X-772

1шт.

11

87692856

CABLE TERMINAL

Diode Module, X-772

6шт.

11

87418312

SEAL

Diode Module, X-772

6шт.

12

87039236

ELEC CONNECTOR

Diode Module, X-771

1шт.

12

87686742

PLUG

Diode Module, X-771

2шт.

12

87022597

MODULE

Diode Module, X-771

1шт.

12

87692856

CABLE TERMINAL

Diode Module, X-771

4шт.

12

87418312

SEAL

Diode Module, X-771

4шт.

13

84147484

ELEC CONNECTOR

RS232 to Display, X-185A

1шт.

13

84148232

LOCK

RS232 to Display, X-185A

1шт.

13

87693329

TERMINAL

RS232 to Display, X-185A

2шт.

14

84147482

ELEC CONNECTOR

RS232 From Reciever, X-1085B

1шт.

14

84148231

LOCK

RS232 From Reciever, X-1085B

1шт.

14

87693269

ELEC. TERMINAL PIN

RS232 From Reciever, X-1085B

3шт.

15

87693744

WIRE CONNECTOR

Seperator Aux B+, X-1132

1шт.

15

84286327

SEAL

Seperator Aux B+, X-1132

1шт.

16

87700155

ELEC CONNECTOR,Female, 12 Cavities

NAV II Diagnostics, X-1111

1шт.

16

87697946

CONNECTOR, ELEC

NAV II Diagnostics, X-1111

4шт.

16

87705201

WEDGE

NAV II Diagnostics, X-1111

1шт.

17

87700156

CONTACT HOUSING,Female, 12 Pole

Dust Cap, X-1111A

1шт.

17

87705198

WEDGE

Dust Cap, X-1111A

1шт.

17

87697866

TERMINAL,Female, Nickel, 0.50 - 1.00mm

Dust Cap, X-1111A

1шт.

18

82944116

ELEC CONNECTOR

to Implement Socket Jumper, X-1099

1шт.

19

84165997

TERMINAL

Grid Heater Indicator Positive (+), X-315P

1шт.

20

84165997

TERMINAL

Grid Heater Indicator Ground (-), X-315N

1шт.

21

87688712

WIRE CONNECTOR,Female

Grid Heater Resistor, X-700

1шт.

21

47405859

RESISTOR

Grid Heater Resistor, X-700

1шт.

21

87688863

CAP

Grid Heater Resistor, X-700

1шт.

22

84398827

WIRE CONNECTOR

Key Switch Auxiliary Outlet, X-536

1шт.

22

84178477

RETAINER

Key Switch Auxiliary Outlet, X-536

1шт.

23

87693713

ELEC CONNECTOR,Female, 6 Cavities

Key Switch, X-801

1шт.

23

87709400

ELEC. TERMINAL PIN

Key Switch, X-801

2шт.
