Запчасти Case IH 7140 (55.426.AH[02]) - WIRE HARNESS, GRAIN TANK (55) - ELECTRICAL SYSTEMS

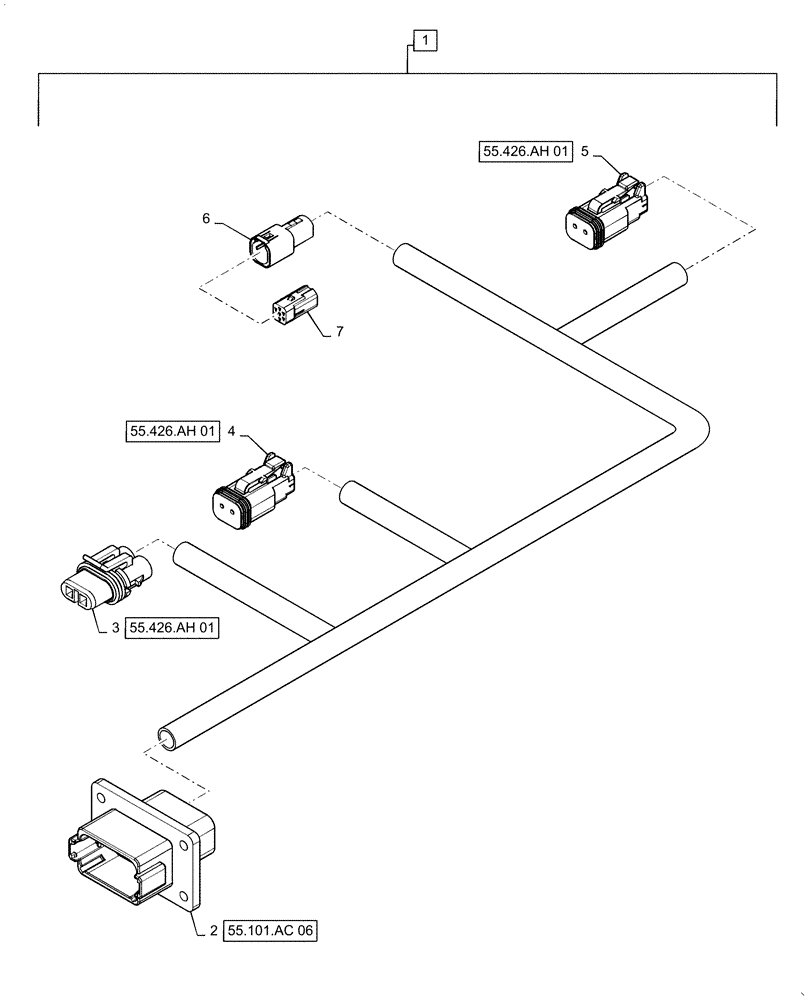

Схема запчастей Case IH 7140 - (55.426.AH[02]) - WIRE HARNESS, GRAIN TANK (55) - ELECTRICAL SYSTEMS
1
55.426.ah 01
6
5
7
55.426.ah 01
55.426.ah 01
2
55.101.ac 06
3
4

Артикул

Название

Примечание

Количество

1

47497215

WIRE HARNESS

Grain Tank, Incl 2 - 7

1шт.

2

87700108

ELEC CONNECTOR

To RH Main Harness, X-1027

1шт.

2

84068583

PLUG,12 - 16 Ga, White

To RH Main Harness, X-1027

5шт.

2

87698541

LOCKING TAB,Wedge Lock, 12-Pin

Wedge, To RH Main Harness, X-1027

1шт.

2

87695923

TERMINAL

To RH Main Harness, X-1027

5шт.

2

86500035

ELEC. TERMINAL PIN,Male, 0.75 - 2mm

To RH Main Harness, X-1027

2шт.

3

87693711

CONNECTOR, ELEC

Grain Tank Light, X-358

1шт.

3

87704960

ELEC CONNECTOR

Lock, Grain Tank Light, X-358

1шт.

3

87686739

CABLE TERMINAL,Female, Tin, 2.00 - 3.00mm

Grain Tank Light, X-358

1шт.

3

87680710

SEAL

Grain Tank Light, X-358

1шт.

4

87695909

ELEC CONNECTOR,Female, 2 Pole

Grain Tank 3/4 Full, X-213

1шт.

4

84074638

LOCKING TAB,Locking Wedge, Green

Grain Tank 3/4 Full, X-213

1шт.

4

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Grain Tank 3/4 Full, X-213

2шт.

5

87695909

ELEC CONNECTOR,Female, 2 Pole

Grain Tank Full, X-214

1шт.

5

84074638

LOCKING TAB,Locking Wedge, Green

Grain Tank Full, X-214

1шт.

5

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Grain Tank Full, X-214

2шт.

6

87357892

ELEC CONNECTOR

Grain Tank Camera, X-042

1шт.

6

87357895

PLUG

Grain Tank Camera, X-042

3шт.

6

87357894

WIRE CONNECTOR

Terminal, Grain Tank Camera, X-042

3шт.

7

87357889

WIRE CONNECTOR

Dust Cap, X-042A

1шт.

7

87357895

PLUG

Dust Cap, X-042A

7шт.

Выбрано товаров: 21
