Запчасти Case IH 7140 (55.404.CU[01]) - VAR - 425553 - UNLOADING TUBE, ELECTRICAL, NON-PIVOT SPOUT (55) - ELECTRICAL SYSTEMS

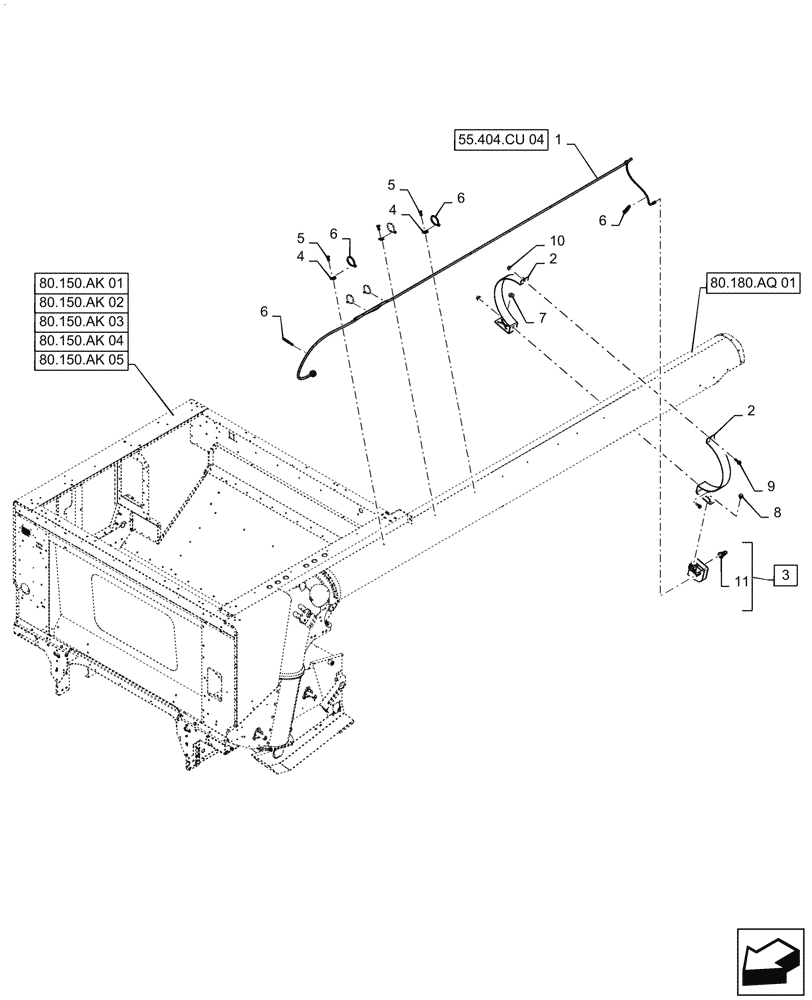

Схема запчастей Case IH 7140 - (55.404.CU[01]) - VAR - 425553 - UNLOADING TUBE, ELECTRICAL, NON-PIVOT SPOUT (55) - ELECTRICAL SYSTEMS
80.180.aq 01
5
3
9
6
2
7
4
11
6
6
9
2
1
8
10
6
5
4
55.404.cu 04
80.150.ak 02
80.150.ak 01
80.150.ak 03
80.150.ak 04
80.150.ak 05

Артикул

Название

Примечание

Количество

1

47501340

WIRE HARNESS

Unload Tube

1шт.

2

47639616

BRACKET

Unloader Light

2шт.

3

87584890

LIGHT ASSY.,Halogen, 12V, 55W, Clear

Flood, 12V 55w, HD, Incl 11

1шт.

3

47682620

WORK LAMP,Flood, LED, 12V

LAMP,WORK,LED

1шт.

4

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

Wire Tie

8шт.

5

445394

RIVET,Pop, 3/16" x 1/2" OAL

8шт.

6

86566989

CABLE TIE,208mm L

14шт.

7

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

8

87021006

BOLT,M10 x 26.4mm, Cl 10.9

1шт.

9

87698837

FLANGE BOLT,M10 x 30mm, Full Thd, Cl 10.9

2шт.

10

86050279

FLANGE NUT,M10 x 1.5, Cl 10

2шт.

11

1312210C2

BULB,Halogen H3, 12V, 55W

Flood Light

1шт.

Выбрано товаров: 12
