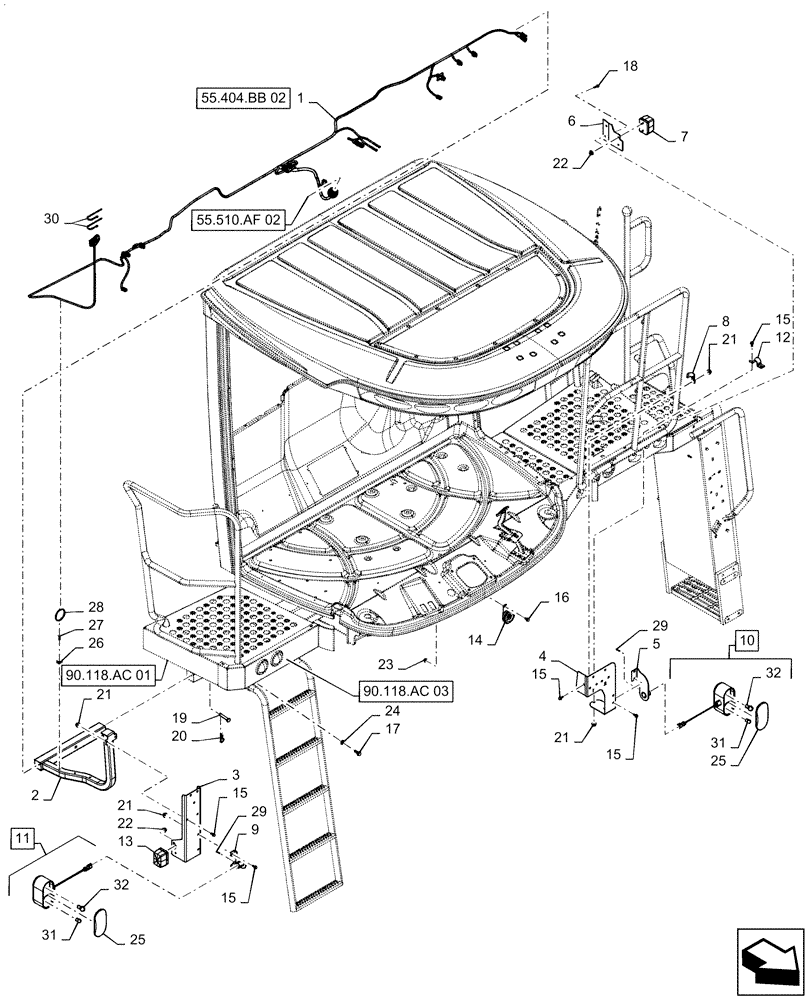

Запчасти Case IH 7140 (55.404.BB[01]) - FRONT MARKER LIGHT (55) - ELECTRICAL SYSTEMS

1

47665417

WIRE HARNESS

Front Platform

1шт.

2

47358937

SUPPORT

Signal Plate, RH

1шт.

3

84477920

SUPPORT

Light, RH

1шт.

4

47405799

SUPPORT

Light, LH

1шт.

5

47465847

MOUNT

Light, LH

1шт.

6

84587519

MOUNT

Marker, Red, LH

1шт.

7

84067994

SIDE LAMP ASSY

LH

1шт.

8

47405801

BRACKET

Support

1шт.

9

47465844

MOUNT

Light, RH

1шт.

10

84380271

LAMP,12V, 21W, Clear

Front, Oval With Turn, LH, Incl 25, 31 - 32

1шт.

11

84380270

LAMP,12V, 21W, Clear

Front, Oval With Turn, RH, Incl 25, 31 - 32

1шт.

12

84588127

BRACKET

Support

1шт.

13

84067995

SIDE LAMP ASSY

RH

1шт.

14

87714969

HORN

With Breather

1шт.

15

87695418

FLANGE BOLT,M6 x 1.0 x 16mm, Cl 10.9

9шт.

16

87681207

BOLT,M8 x 24.1mm, Cl 10.9

1шт.

17

87698837

FLANGE BOLT,M10 x 30mm, Full Thd, Cl 10.9

1шт.

18

87670758

FLANGE BOLT,M6 x 31.6mm, Cl 10.9

2шт.

19

87035064

CLEVIS PIN,12mm OD x 70mm L

1шт.

20

610784R1

SPLIT PIN/SAFETY PIN,2.4mm OD x 60.345mm OAL

1шт.

21

86050300

FLANGE NUT,M6 x 1.0, Cl 10

9шт.

22

87301238

NUT,Flange Hex, M4 x 0.7

Serrated Flange, M4

4шт.

23

87681210

FLANGE NUT,M8 x 1.25, Cl 10

1шт.

24

84221258

THIN NUT,M10 x 1.5, Cl 5

1шт.

25

87304539

LENS

Side/Turn Indicator

2шт.

26

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

Wire Tie

5шт.

27

445395

RIVET,Pop, 4.8mm OD x 18.1mm L

5шт.

28

289862C1

CABLE TIE,3/16" x 7"

5шт.

29

86511331

SELF-TAP SCREW,Pan Hd, #8-18 OD x 3/4"

2шт.

30

86566989

CABLE TIE,208mm L

2шт.

31

10857790

BULB,R10W, 12V, 5W

Front Lamp

2шт.

32

14148090

BULB,PY21W, 12V, 21W

Front Lamp

2шт.
