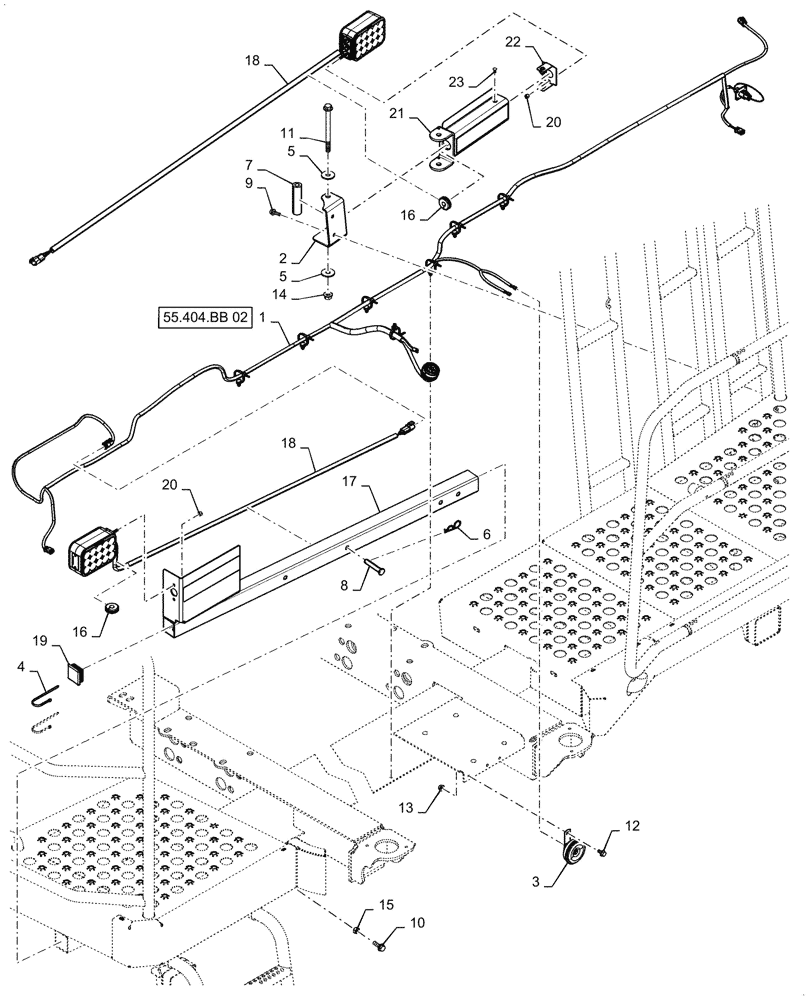

Запчасти Case IH 7140 (55.404.BB[01]) - EXTREMITY LIGHT (55) - ELECTRICAL SYSTEMS

1

48006205

WIRE HARNESS

Front Platform

1шт.

2

84422216

BRACKET

Warning Light, LH

1шт.

3

87714969

HORN

With Breather

1шт.

4

86566989

CABLE TIE,208mm L

2шт.

5

86997936

WASHER,12.7mm ID x 38.1mm OD x 3.18mm Thk

2шт.

6

610784R1

SPLIT PIN/SAFETY PIN,2.4mm OD x 60.345mm OAL

1шт.

7

87105383

SPACER,12.7mm ID x 25.4mm OD x 96.4mm L

1шт.

8

87035064

CLEVIS PIN,12mm OD x 70mm L

1шт.

9

87698833

BOLT,M8 x 33.1mm, Cl 10.9

2шт.

10

87698837

FLANGE BOLT,M10 x 30mm, Full Thd, Cl 10.9

1шт.

11

87030021

BOLT,Hex, M12 x 150mm, Cl 10.9

1шт.

12

87681207

BOLT,M8 x 24.1mm, Cl 10.9

1шт.

13

87681210

FLANGE NUT,M8 x 1.25, Cl 10

1шт.

14

86512497

FLANGE NUT,M12 x 1.75, Cl 10

1шт.

15

86500689

NUT,M10 x 1.5, Cl 10

1шт.

16

87015294

GROMMET,1/2" ID x 1-1/2" OD x 0.438" Thk

3шт.

17

48014377

ARM

Supporting W/ Decals

1шт.

18

48006407

LAMP

Turn/SMV, LED

2шт.

19

87518247

PLUG

Square Tube

1шт.

20

86639241

NUT,Prev Torque, M5 x 0.8, Cl 8

4шт.

21

48013438

ARM

Supporting W/ Decals

1шт.

22

48013101

BRACKET

Lamp Mount

1шт.

23

86511855

SCREW,Flat, M6 x 1.0 x 12mm OAL, Cl 4.8

2шт.
