Запчасти Case IH 7140 (55.015.AB[01]) - ENGINE WIRING ASSY (55) - ELECTRICAL SYSTEMS

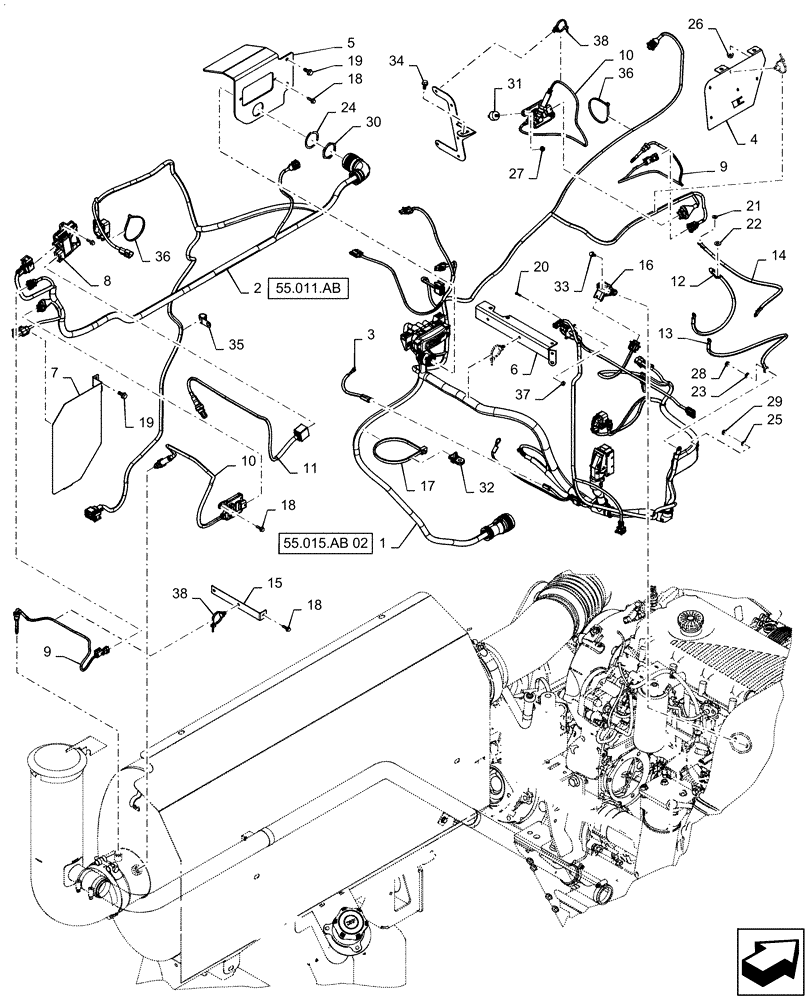

Схема запчастей Case IH 7140 - (55.015.AB[01]) - ENGINE WIRING ASSY (55) - ELECTRICAL SYSTEMS
55.015.ab 02
16
3
10
38
8
18
34
7
10
25
13
27
5
30
12
37
19
20
2
36
29
36
17
28
26
14
11
23
35
18
15
31
24
33
22
38
18
6
4
32
21
19
9
9
1
55.011.ab

Артикул

Название

Примечание

Количество

1

47690832

WIRE HARNESS

Engine, C9, Tier 4B

1шт.

2

47700240

WIRE HARNESS

Exhaust, Tier 4B

1шт.

3

47666468

WIRE HARNESS

Starter Jumper

1шт.

4

47543627

PLATE

Upstream Sensor

1шт.

5

47700250

BRACKET

Exhaust Harness

1шт.

6

47406561

BRACKET

Wiring Harness

1шт.

7

47438724

SHEET

SCR Electrical Cover

1шт.

8

47368959

ECU

NH3

1шт.

9

47478880

TEMPERATURE SENDER,50mm, Closed

DEF/Adblue

3шт.

10

84422747

SENSOR,NOx, 12V, 5 Pin, 615mm L

NOX

2шт.

11

47520140

SENSOR,8 Pin

NH3

1шт.

12

86611285

ELECTRICAL WIRE

Grid Heater

1шт.

13

86611286

ELECTRICAL WIRE

Positive, Grid Heater

1шт.

14

86611287

CABLE,490mm L

Negative, Grid Heater

1шт.

15

47544400

BRACKET

Exhaust Wiring

1шт.

16

87482355

SENSOR

Humidity

1шт.

17

529070

CABLE TIE,368.3mm L

7шт.

18

87675531

FLANGE BOLT,M6 x 26.6mm, Cl 10.9

7шт.

19

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

4шт.

20

412064

BOLT,Hex, M4 x 16mm, Cl 8.8, Full Thd

2шт.

21

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

4шт.

22

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

23

80681

LOCK WASHER,5/16"

1шт.

24

84420455

LOCK WASHER,48mm ID x 45.8mm OD

Wire Connector

1шт.

25

86509828

LOCK WASHER,M5

1шт.

26

86507066

FLANGE NUT,M8 x 1.25, Cl 10

3шт.

27

86050300

FLANGE NUT,M6 x 1.0, Cl 10

7шт.

28

16102311

THIN NUT,Thin, M8 x 1.25, Cl 04

1шт.

29

84139322

NUT

Jam, M5

1шт.

30

87271930

NUT

Wire Connector

1шт.

31

84341086

DAMPER,M6 x 51mm, 25mm OD

Connector Isolator

2шт.

32

47582709

Axial

MOUNT

1шт.

33

87695418

FLANGE BOLT,M6 x 1.0 x 16mm, Cl 10.9

2шт.

34

87681207

BOLT,M8 x 24.1mm, Cl 10.9

2шт.

35

510640

CLIP,15.8mm, Coat, 10.3mm Bolt Hole, J Type

1шт.

36

86566990

CABLE TIE,292mm OAL x 4.8mm W

12шт.

37

100012

NUT,M4 x 0.7, Cl 8

2шт.

38

84292754

CLIP,Cable Tie W/ Fir Tree, 5mm OD x 203mm OAL

11шт.

Выбрано товаров: 38
